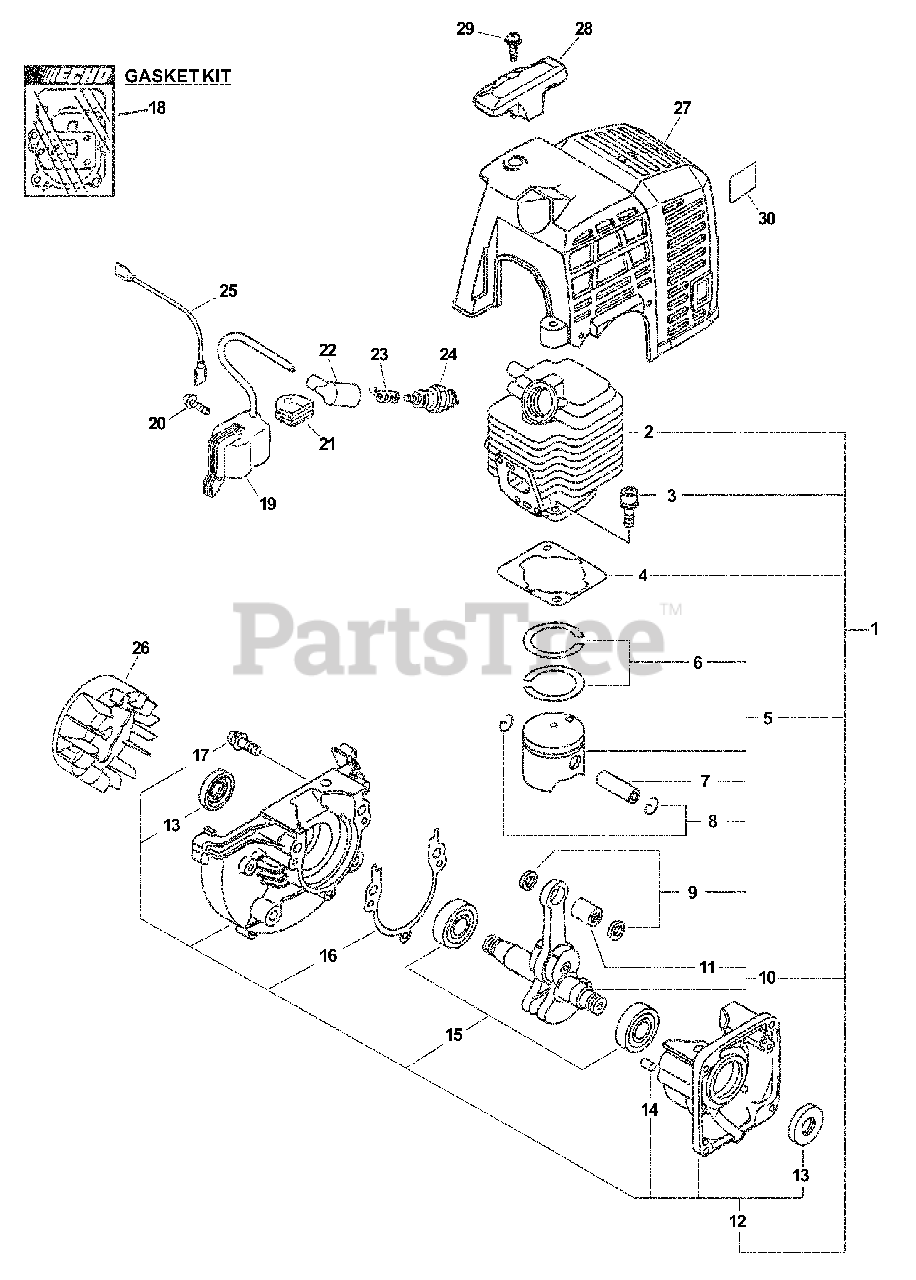

SHC-2100 - Echo Shaft Hedge Trimmer (Type 1) Engine, Crankcase, Ignition, Cylinder Cover Parts Diagram

Shaft Hedge Trimmer (Type 1)

Engine, Crankcase, Ignition, Cylinder Cover Parts Diagram

  • Title

1

Echo SB1026

SHORT BLOCK -- SB1026
(Superseded to Discontinued)

Note: OPTIONAL ENGINE REPOWER

$

$

Not available

2

Echo 10101106562

CYLINDER

Note: S/N: 001001-504087,CANADA 001001-004512

$109.99

$

Usually ships in 2-4 days

0

3

Echo 90016205022

SCREW - 5X22

Note: S/N: 001001-504087,CANADA 001001-004512

$0.99

$

In Stock, Qty 20+

0

4

Echo 10101044332

GASKET, CYLINDER

Note: Included in GASKET KIT

$3.99

$

In Stock, only 4 left!

0

5

Echo 10000048732

PISTON KIT

Note: S/N: 001001-504087,CANADA 001001-004512

$77.99

$

In Stock, only 1 left!

0

6

Echo 10001105330

RING, PISTON

Note: S/N: 001001-504087,CANADA 001001-004512

$8.49

$

In Stock, only 2 left!

0

2

Echo A130000010

CYLINDER
(Superseded to A130000011)

Note: S/N: 504088 & UP,CANADA 004513 & UP

$116.99

$

Usually ships in 2-4 days

0

3

Echo 90016205022

SCREW - 5X22

Note: S/N: 504088 & UP,CANADA 004513 & UP

$0.99

$

In Stock, Qty 20+

0

4

Echo 10101044332

GASKET, CYLINDER

Note: Included In GASKET KIT

$3.99

$

In Stock, only 4 left!

0

5

Echo P021001101

PISTON KIT
(Superseded to P021001102)

Note: S/N: 504088 & UP,CANADA 004513 & UP

$77.99

$

In Stock, Qty 5

0

6

Echo A101000000

RING, PISTON

Note: S/N: 504088 & UP,CANADA 004513 & UP

$8.49

$

In Stock, only 2 left!

0

7

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

8

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

9

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

10

Echo 10010054130

CRANKSHAFT ASSY
(Superseded to 10010044732)

$155.99

$

In Stock, only 1 left!

0

11

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$9.99

$

In Stock, only 2 left!

0

12

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

$140.99

$

Usually ships in 2-4 days

0

13

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 6

0

14

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

15

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

16

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

17

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 19

0

18

Echo 88900021462

GASKET KIT
(Superseded to 88900021463)

$15.99

$

Usually ships in 2-4 days

0

19

Echo 15660152130

COIL, IGNITION
(Superseded to 15660152131)

$133.99

$

In Stock, only 1 left!

0

20

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

21

Echo 15611240630

GROMMET

$1.49

$

In Stock, only 2 left!

0

22

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

23

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

24

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

24

Echo 15901710230

SPARK PLUG -- RCJ-7Y

$4.99

$

In Stock, Qty 20+

0

25

Echo 16202152830

LEAD - IGNITION
(Superseded to V485001080)

$3.99

$

In Stock, Qty 7

0

26

Echo 15680144731

FLYWHEEL

$105.99

$

Usually ships in 2-4 days

0

27

Echo 10151448930

COVER, ENGINE

$11.99

$

In Stock, Qty 10

0

28

Echo 15991254130

GUARD - TOP

$7.99

$

In Stock, Qty 7

0

29

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

30

Echo X505002310

LABEL - HOT SURFACE

$1.99

$

In Stock, Qty 20+

0
