SHC-2100 - Echo Shaft Hedge Trimmer (Type 1) Carburetor -- C1U-K47 Parts Diagram

Shaft Hedge Trimmer (Type 1)

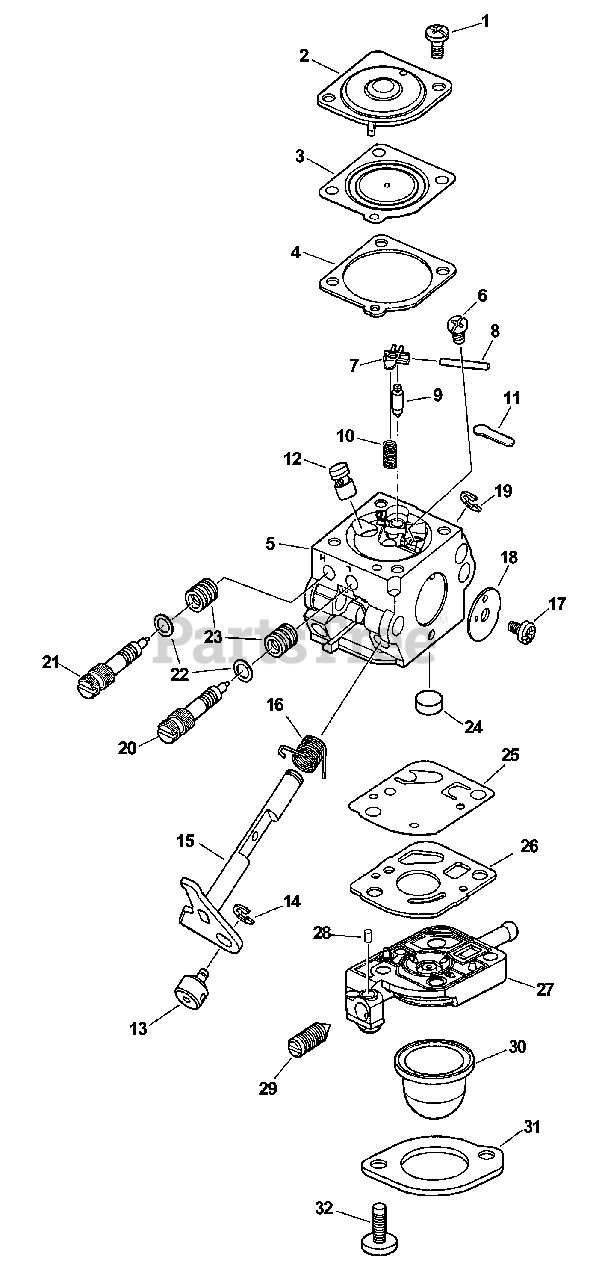

Carburetor -- C1U-K47 Parts Diagram

  • Title

Echo 12520049030

CARBURETOR C1U-K47
(Superseded to 12520013311)

Note: Includes ITEMS 1-32

$78.99

$

In Stock, Qty 20+

0

1

Echo 12534452130

SCREW

$0.99

$

In Stock, Qty 8

0

2

Echo 12534213210

COVER, METERING
(Superseded to 12534252130)

$3.99

$

Usually ships in 2-4 days

0

3

------------------

DIAPHRAGM, METERING

Note: INCLUDED IN GASKET / DIAPHRAGM KIT P/N 12530349030 & REPAIR KIT P/N 12530049030

$

$

Not available

4

------------------

GASKET, METERING

Note: INCLUDED IN GASKET / DIAPHRAGM KIT P/N 12530349030 & REPAIR KIT P/N 12530049030

$

$

Not available

5

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

6

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 12

0

7

------------------

LEVER, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530049030

$

$

Not available

8

------------------

PIN, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12530049030

$

$

Not available

9

------------------

VALVE, INLET NEEDLE

Note: INCLUDED IN REPAIR KIT P/N 12530049030

$

$

Not available

10

------------------

SPRING, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12530049030

$

$

Not available

11

------------------

PLUG, WELCH

Note: INCLUDED IN REPAIR KIT P/N 12530049030

$

$

Not available

12

Echo 12537649030

NOZZLE, CHECK VALVE
(Superseded to Discontinued)

$

$

Not available

13

Echo 12537242030

SWIVEL

$4.49

$

Usually ships in 2-4 days

0

14

Echo 12532713930

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

15

Echo 12531749030

SHAFT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

16

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

17

Echo 12531413930

SCREW

$1.49

$

Usually ships in 2-4 days

0

18

Echo 12531649030

VALVE, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

19

Echo 12532715130

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

20

Echo 12531807360

NEEDLE - LOW SPEED

$5.99

$

Usually ships in 2-4 days

0

21

Echo 12532007360

NEEDLE - HIGH SPEED
(Superseded to Discontinued)

$

$

Not available

22

Echo 12535320560

WASHER

$0.99

$

Usually ships in 2-4 days

0

23

Echo 12531942030

SPRING

$1.49

$

In Stock, only 1 left!

0

24

------------------

STRAINER

Note: INCLUDED IN REPAIR KIT P/N 12530049030

$

$

Not available

25

------------------

DIAPHRAGM, PURGE

Note: INCLUDED IN GASKET / DIAPHRAGM KIT P/N 12530349030 & REPAIR KIT P/N 12530049030

$

$

Not available

26

------------------

GASKET, PURGE

Note: INCLUDED IN GASKET / DIAPHRAGM KIT P/N 12530349030 & REPAIR KIT P/N 12530049030

$

$

Not available

27

Echo P005000990

BASE, PURGE

$22.99

$

In Stock, only 4 left!

0

28

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

29

Echo 12533413930

SCREW, IDLE ADJUST

$1.49

$

In Stock, only 4 left!

0

30

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

31

Echo 12536311610

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 8

0

32

Echo 12531011610

SCREW, RETAINER

$1.49

$

In Stock, Qty 13

0

Echo 12530049030

REPAIR KIT
(Superseded to 12530013310)

$18.99

$

In Stock, Qty 9

0

Echo 12530349030

DIAPHRAGM/GASKET KIT
(Superseded to 12530313310)

$8.99

$

In Stock, only 1 left!

0
