SHC-210 - Echo Shaft Hedge Trimmer (SN: S77512001001 - S77512999999) Gear Case, Blades Parts Diagram

Shaft Hedge Trimmer

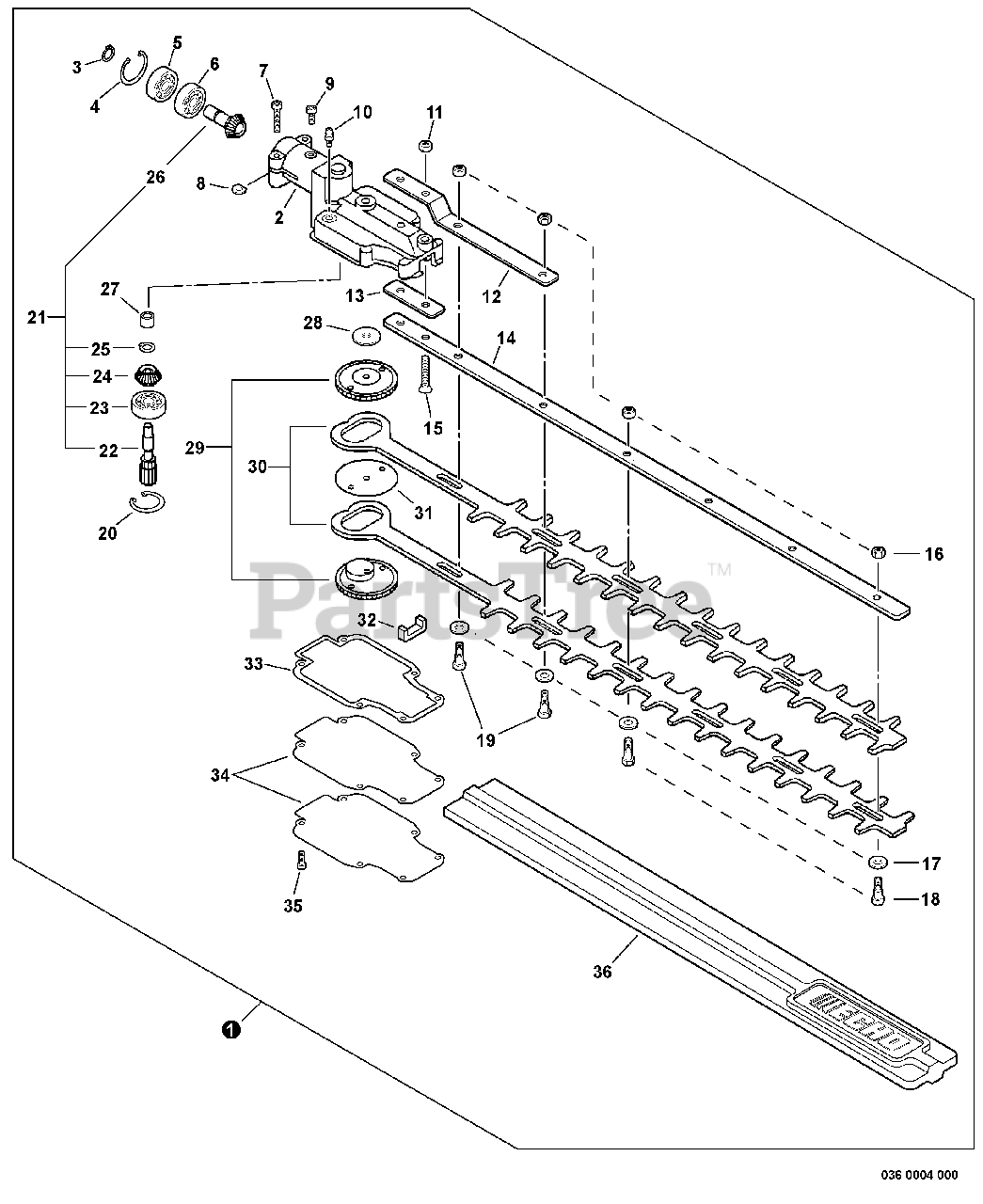

Gear Case, Blades Parts Diagram

  • Title
1

Echo 9001011

GEAR CASE ASSY
(Superseded to 9001018)

Note: Includes ITEMS 2-36

$243.99

$

In Stock, only 2 left!

0

2

Echo 61041021460

CASE, GEAR - UPPER
(Superseded to 61041021461)

$

$

Not available

3

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 12

0

4

Echo 61033521460

RING, RETAINING - 24

$1.49

$

In Stock, Qty 8

0

5

Echo 90085806901

BEARING, BALL - 6901Z
(Superseded to 9405206901)

$15.99

$

In Stock, only 2 left!

0

6

Echo 90085506901

BEARING, BALL - 6901

$15.99

$

In Stock, only 1 left!

0

7

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 20+

0

$0.99

$

In Stock, Qty 10

0

9

Echo V805000140

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

10

Echo 88011054230

FITTING, GREASE

$5.49

$

In Stock, only 3 left!

0

11

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

12

Echo 69912021461

BRACKET, BLADE

$5.99

$

In Stock, only 1 left!

0

13

Echo 61091421460

PLATE
(Superseded to Discontinued)

$

$

Not available

14

Echo X425000260

SUPPORT, BLADE

$31.99

$

Usually ships in 2-4 days

0

15

Echo 90021206035

SCREW - 6X35

$0.99

$

In Stock, Qty 8

0

16

Echo 43302206460

LOCKNUT - 6

$1.49

$

In Stock, Qty 20+

0

17

Echo 69911804560

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

18

Echo 69911306560

BOLT - 6

$0.99

$

In Stock, Qty 9

0

19

$4.49

$

In Stock, Qty 20+

0

20

Echo 61033521460

RING, RETAINING - 24

$1.49

$

In Stock, Qty 8

0

21

Echo P021009440

SPUR GEAR SET

Note: INCLUDES ITEMS 22-26

$75.99

$

Usually ships in 2-4 days

0

22

Echo 61031221460

GEAR - SHAFT

$30.99

$

Usually ships in 2-4 days

0

23

Echo 90085506901

BEARING, BALL - 6901

$15.99

$

In Stock, only 1 left!

0

24

Echo V651000190

GEAR - BEVEL

$24.99

$

Usually ships in 2-4 days

0

25

Echo 61033521560

RING, RETAINING

$0.99

$

In Stock, only 2 left!

0

26

Echo V651000180

GEAR - BEVEL

$29.99

$

Usually ships in 2-4 days

0

27

Echo 60422121460

BEARING, NEEDLE

$9.49

$

Usually ships in 2-4 days

0

28

$1.49

$

In Stock, only 2 left!

0

29

Echo V650000080

GEAR - SPUR

$53.99

$

In Stock, Qty 15

0

30

Echo X411000410

BLADE, TRIMMER

$58.99

$

In Stock, Qty 5

0

31

$2.49

$

In Stock, Qty 5

0

32

Echo 61042606560

SEAL, FELT

$2.99

$

In Stock, Qty 10

0

33

Echo 61041421460

GASKET, GEAR CASE

$1.49

$

In Stock, Qty 14

0

34

Echo 61041121460

LID, GEAR CASE

$6.99

$

Usually ships in 2-4 days

0

35

Echo V804000050

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

36

Echo X495000170

COVER, BLADE

$8.99

$

In Stock, only 1 left!

0
