SHC-210 - Echo Shaft Hedge Trimmer (SN: 10001001 - 10999999) Intake Parts Diagram

Shaft Hedge Trimmer

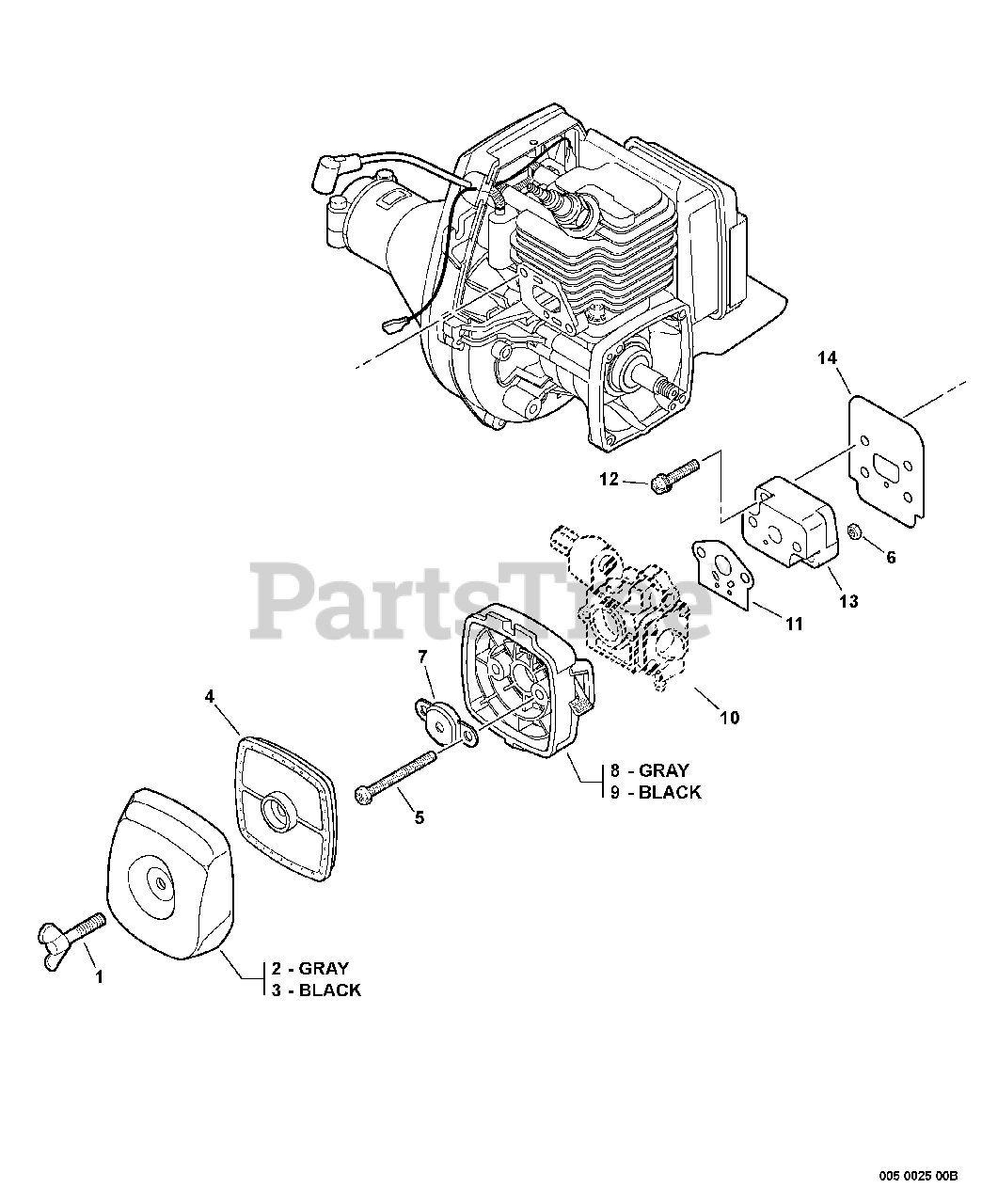

Intake Parts Diagram

  • Title

1

Echo 21041752730

THUMBSCREW

$1.49

$

In Stock, Qty 20+

0

2

Echo 13031306563

COVER, AIR FILTER - GRAY

$6.99

$

In Stock, Qty 20+

0

3

Echo 13031305863

COVER, AIR FILTER - BLACK

$6.49

$

In Stock, Qty 20+

0

4

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$7.49

$

In Stock, Qty 20+

0

5

Echo 90022005065

SCREW - 5X65

$0.99

$

In Stock, Qty 20+

0

6

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

7

Echo 12901152730

PLATE, PREVENT

$3.99

$

In Stock, Qty 20+

0

8

Echo P021000991

CASE, AIR FILTER - GRAY

$9.49

$

In Stock, Qty 20+

0

9

Echo P021004480

CASE, AIR FILTER - BLACK
(Superseded to P021049750)

$9.99

$

In Stock, Qty 20+

0

10

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

11

Echo 13001013410

GASKET, INTAKE

$1.99

$

In Stock, Qty 20+

0

12

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

13

Echo 13001744330

INSULATOR, INTAKE
(Superseded to P021015350)

$4.49

$

In Stock, only 1 left!

0

14

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, only 1 left!

0
