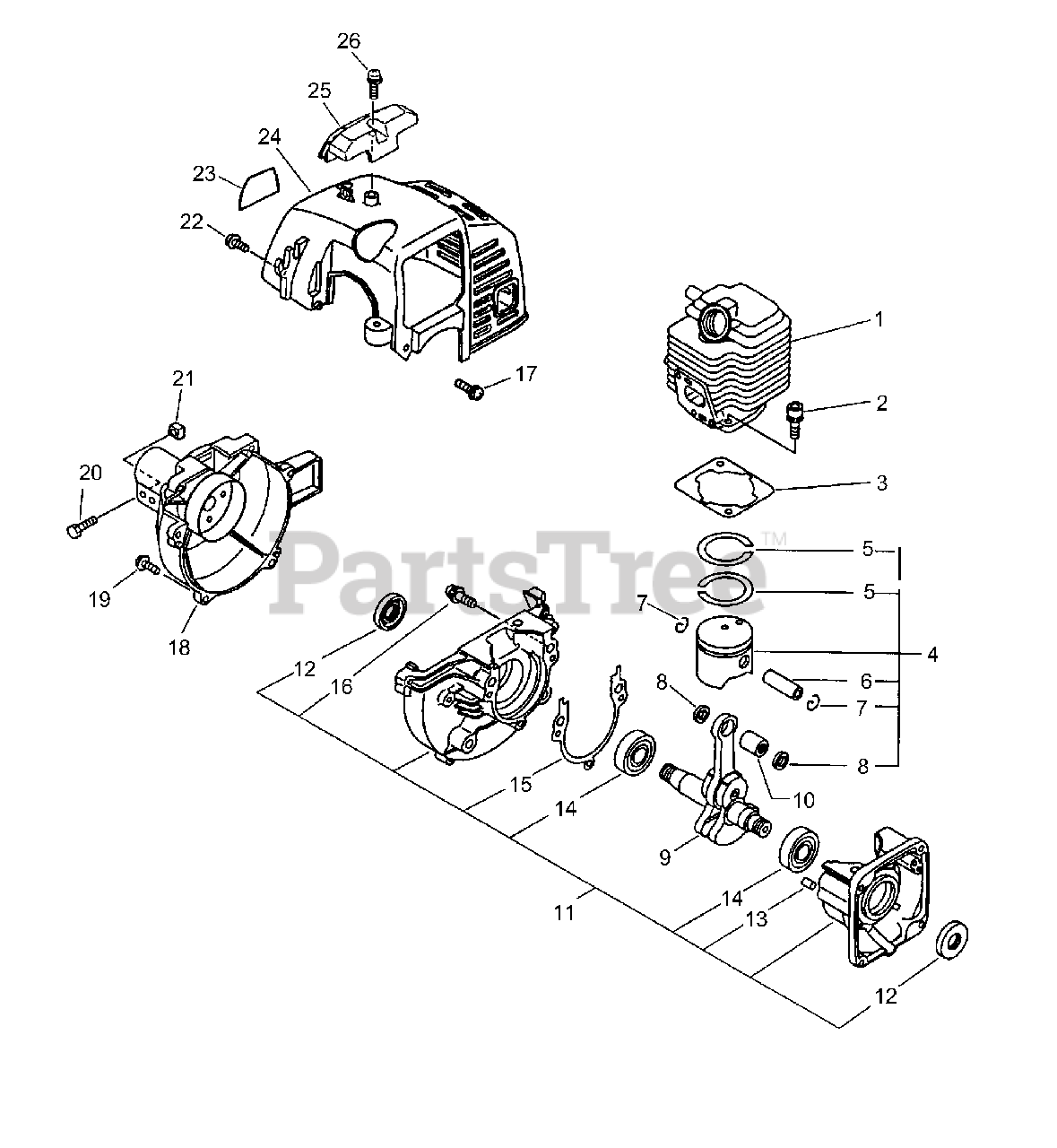

SHC-1700 - Echo Shaft Hedge Trimmer (Type 1) Engine, Fan Housing, Cover Parts Diagram

Shaft Hedge Trimmer (Type 1)

Engine, Fan Housing, Cover Parts Diagram

  • Title

1

Echo 10101106562

CYLINDER

Note: S/N 001001 - 506571 (CANADA S/N 001001 - 005613)

$109.99

$

Usually ships in 2-4 days

0

1

Echo A130000010

CYLINDER
(Superseded to A130000011)

Note: S/N 506572 & UP (CANADA 005614 & UP)

$116.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

3

Echo 10101044332

GASKET, CYLINDER

Note: USE KIT P/N 88900021462

$3.99

$

In Stock, Qty 6

0

4

Echo 10000048732

PISTON KIT

Note: S/N 001001 - 506571 (CANADA 001001 - 005613); INCL. ITEMS 5 - 8

$77.99

$

In Stock, only 1 left!

0

4

Echo P021001101

PISTON KIT
(Superseded to P021001102)

Note: S/N 506572 & UP (CANADA 005614 & UP); INCL. ITEMS 5 - 8

$77.99

$

In Stock, Qty 5

0

5

Echo 10001105330

RING, PISTON

Note: S/N 001001 - 506571 (CANADA 001001 - 005613)

$8.49

$

In Stock, only 3 left!

0

5

Echo A101000000

RING, PISTON

Note: S/N 506572 & UP (CANADA 005614 & UP)

$8.49

$

In Stock, only 3 left!

0

6

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

8

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

9

Echo 10010054130

CRANKSHAFT ASSY
(Superseded to 10010044732)

Note: Includes ITEM 10

$155.99

$

In Stock, only 1 left!

0

10

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$9.99

$

In Stock, only 2 left!

0

11

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

Note: Includes ITEMS 12-16

$140.99

$

Usually ships in 2-4 days

0

12

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 11

0

13

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

14

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

15

------------------

GASKET, CRANKCASE

Note: USE KIT P/N 88900021462

$

$

Not available

16

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 20+

0

17

Echo 90025304012

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 12

0

18

Echo 10150348730

FAN CASE ASSY
(Superseded to 10150356630)

Note: (INCLUDES CLUTCH DRUM, BEARINGS & CIRCLIP)

$

$

Not available

19

Echo 90016304018

SCREW - 4X18

$1.49

$

In Stock, Qty 20+

0

20

Echo 90014205028

BOLT - 5X28

$0.99

$

In Stock, Qty 20+

0

21

Echo 90056500005

NUT - 5 -- SQUARE
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

22

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

23

Echo 89011521460

LABEL - MODEL SHC-1700

$3.49

$

Usually ships in 2-4 days

0

24

Echo 10151448730

COVER, ENGINE - GRAY
(Superseded to 10151448731)

$19.99

$

Usually ships in 2-4 days

0

25

Echo 15991248630

GUARD, TOP - GRAY
(Superseded to Discontinued)

$

$

Not available

26

Echo 90025305016

SCREW - 5X16 -- TAPPING

$0.99

$

In Stock, Qty 20+

0

Echo SB1026

SHORT BLOCK -- SB1026
(Superseded to Discontinued)

$

$

Not available

Echo 88900021462

GASKET KIT
(Superseded to 88900021463)

$15.99

$

Usually ships in 2-4 days

0

Echo 10101044332

GASKET, CYLINDER

Note: OPTIONAL

$3.99

$

In Stock, Qty 6

0

------------------

GASKET, CRANKCASE

Note: OPTIONAL

$

$

Not available

Echo 13001642031

GASKET, INTAKE

Note: OPTIONAL

$1.49

$

In Stock, Qty 20+

0

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: OPTIONAL

$2.49

$

In Stock, only 2 left!

0

Echo 13001005960

GASKET, INTAKE

Note: OPTIONAL

$1.99

$

In Stock, only 2 left!

0

Echo 14586642031

GASKET, EXHAUST

Note: OPTIONAL

$2.49

$

In Stock, Qty 5

0

Echo V104000003

GASKET, EXHAUST

Note: OPTIONAL

$2.99

$

In Stock, only 2 left!

0

Echo V104000160

GASKET, EXHAUST

Note: OPTIONAL

$0.99

$

In Stock, Qty 16

0
