SGV 13321KW (85629) - Snapper 32" Walk-Behind Mower, 13hp HANDLE GROUP Parts Diagram

32" Walk-Behind Mower, 13hp

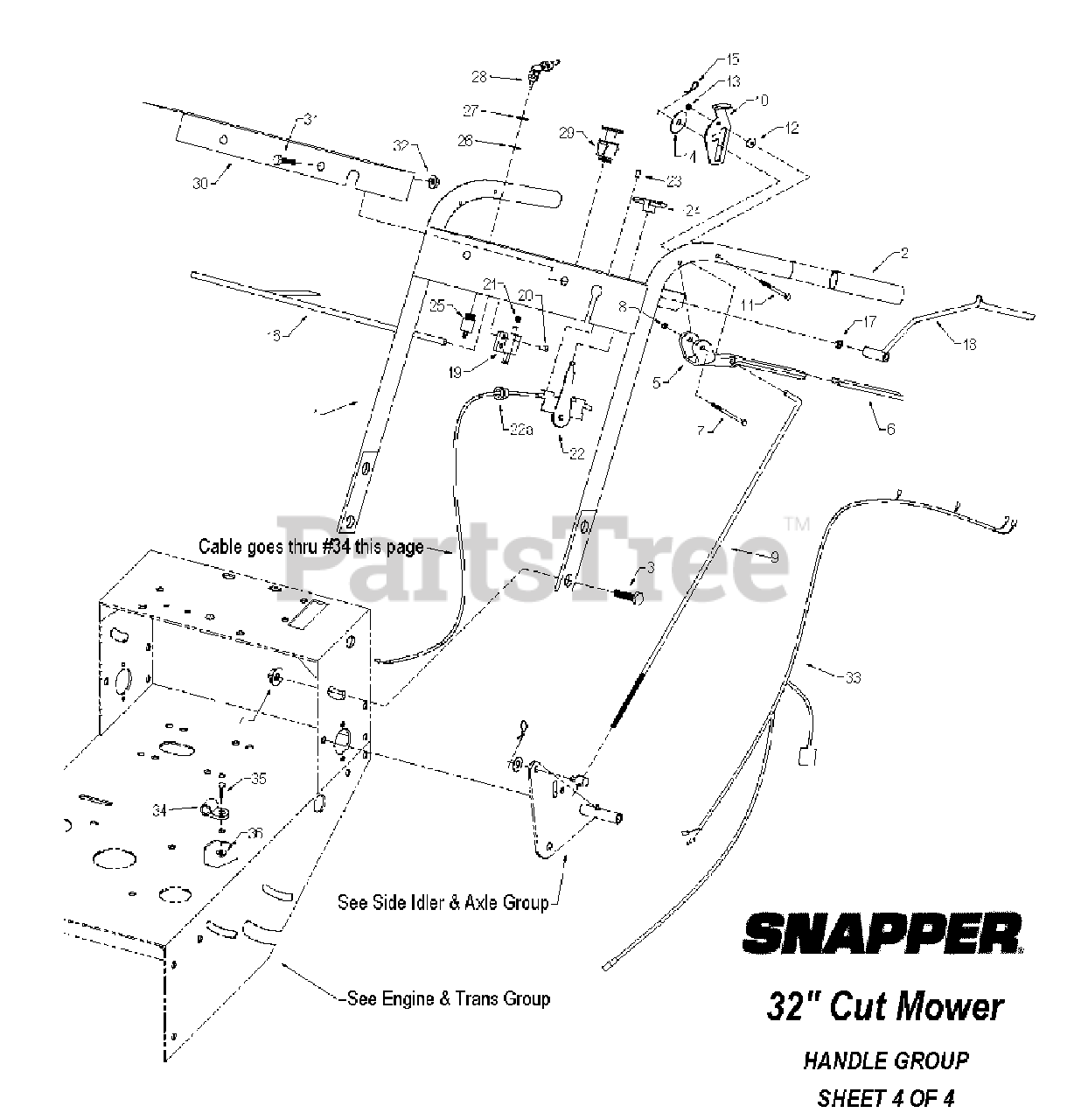

HANDLE GROUP Parts Diagram

  • Title

1

Snapper 3023511

Handle assembly

$

$

Currently unavailable

Snapper 3032136

Mower dash overlay decal (Not shown)
(Superseded to 3032136YP)

$17.99

$

Usually ships in 2-12 days

0

2

Snapper 3031283

Handle grip - 1" dia x 4-1/2"
(Superseded to 7024127YP)

$7.49

$

Usually ships in 2-12 days

0

3

Snapper 3031122

1/2-13 x 1-1/4" hex bolt
(Superseded to 7090330YP)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper 3032130

1/2-13 serrated flange nut

$

$

Currently unavailable

5

Snapper 3023259

Brake handle

$

$

Not available

6

Snapper 3031379

Handle grip - 1/4" x 3/4" x 4"

$

$

Currently unavailable

7

Snapper 3031710

1/4-20 x 2" hex bolt

$

$

Currently unavailable

8

Snapper 3031098

1/4-20 lock nut
(Superseded to 3031098YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 3023131

Upper brake rod

$59.99

$

In Stock, only 2 left!

0

10

Snapper 3023184

Brake lock - left

$

$

Not available

Snapper 3023130

Brake lock - right (Not shown)

$

$

Currently unavailable

11

Snapper 3031292

1/4-20 x 1-1/2" hex bolt

$

$

Not available

12

Snapper 3031579

1/4" spring washer
(Superseded to 7076983YP)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 3031098

1/4-20 lock nut
(Superseded to 3031098YP)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 3031890

5/16" fender washer
(Superseded to 3031890YP)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 3031381

#1 bridge pin
(Superseded to 3031381YP)

$2.99

$

In Stock, only 1 left!

0

16

Snapper 3023512

Safety switch rod
(Superseded to 3023512YP)

$59.99

$

Usually ships in 2-12 days

0

17

Snapper 3031693

3/8" I.D. flange bushing

$

$

Currently unavailable

18

Snapper 3023167

Safety handle - left
(Superseded to 3023167YP)

$96.99

$

Usually ships in 2-12 days

0

Snapper 3023166

Safety handle - right (Not shown)
(Superseded to 3023166YP)

$98.99

$

Usually ships in 2-12 days

0

Snapper 3031439

5/16-18 x 1/4" socket set screw (Not shown)

$

$

Not available

19

Snapper 7027225

Handle safety switch
(Superseded to 7027225YP)

Note: Was 3031480

$

$

Not available

20

Snapper 3031100

3/16" pop rivet

$

$

Not available

21

Snapper 3031585

Safety switch spring
(Superseded to 1723564SM)

$9.99

$

Usually ships in 2-12 days

0

22

Snapper 3035020

Throttle control
(Superseded to 3035020YP)

$63.99

$

Usually ships in 2-12 days

0

22a

Snapper 3032140

Snap bushing - .500 I.D.
(Superseded to 3032140YP)

$3.49

$

Usually ships in 2-12 days

0

22b

Snapper 3035021

Auxiliary choke cable (not shown)

$

$

Currently unavailable

Snapper 3079253

Decal - 'Pull for Choke' (Not shown)

Note: (applied to mower dash overlay)

$

$

Currently unavailable

23

Snapper 3031100

Pop rivet

Note: (attaches throttle to handle dash)

$

$

Not available

Snapper 3031007

Throttle cable clip (Not shown)

Note: (fastens cable to handlebar)

$

$

Currently unavailable

24

Snapper 3031584

Throttle T-handle

$

$

Currently unavailable

25

Snapper 3032011

Off switch
(Superseded to 7017817YP)

$31.99

$

In Stock, only 1 left!

0

Snapper 3031808

3" jumper wire - 1/4" female to 1/4" ring - Off switch ground (Not shown)

$

$

Currently unavailable

26

Snapper 3031806

5/8" star washer
(Superseded to 1960547SM)

$4.49

$

In Stock, only 3 left!

0

27

Snapper 3031581

5/8-18 jam nut
(Superseded to 703904)

$4.99

$

In Stock, Qty 18

0

28

Snapper 3039108

Key set (set of 2)
(Superseded to 1717163SM)

$8.99

$

In Stock, Qty 20+

0

29

Snapper 3032137

PTO switch
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

30

Snapper 3027504

Safety instruction decal bracket
(Superseded to 3027504YP)

$55.99

$

Usually ships in 2-12 days

0

Snapper 3075601

Safety instruction decal (Not shown)
(Superseded to 3075601YP)

$8.49

$

Usually ships in 2-12 days

0

31

Snapper 3031031

5/16-18 x 3/4" hex bolt
(Superseded to 195079GS)

$23.99

$

Usually ships in 2-12 days

0

32

Snapper 3031986

5/16-18 small serrated flange nut

$

$

Not available

33

Snapper 3032148

Wiring harness
(Superseded to 3032148YP)

$54.99

$

Usually ships in 2-12 days

0

Snapper 3031916

5" jumper wire - 1/4" female spade to bullet terminal - engine kill (Not shown)

$

$

Currently unavailable

Snapper 3031864

8" wire tie (Not shown)

Note: (secures harness to handlebar)

$

$

Currently unavailable

Snapper 3032149

Multi-lead ground wire - to PTO switch, safety switch & off switch (Not shown)

$

$

Currently unavailable

Snapper 3031635

1/4-20 x 5/8" hex bolt (Not shown)
(Superseded to 001X38MA)

Note: (secures multi-lead ground to under handle dash)

$4.49

$

In Stock, Qty 18

0

Snapper 3031806

1/4" star washer (Not shown)
(Superseded to 1960547SM)

$4.49

$

In Stock, only 3 left!

0

Snapper 3032129

1/4-20 serrated flange nut (Not shown)
(Superseded to 3032129YP)

$2.49

$

Usually ships in 2-12 days

0

34

Snapper 3032012

Cable clip

Note: (holds throttle & choke cable routings in place)

$

$

Currently unavailable

35

Snapper 3031635

1/4-20 x 5/8" hex bolt
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

36

Snapper 3032129

1/4-20 serrated flange nut
(Superseded to 3032129YP)

$2.49

$

Usually ships in 2-12 days

0
