SGV 13320KW (71106) - Snapper 32" Walk-Behind Mower, 13hp BLADE DECK GROUP Parts Diagram

32" Walk-Behind Mower, 13hp

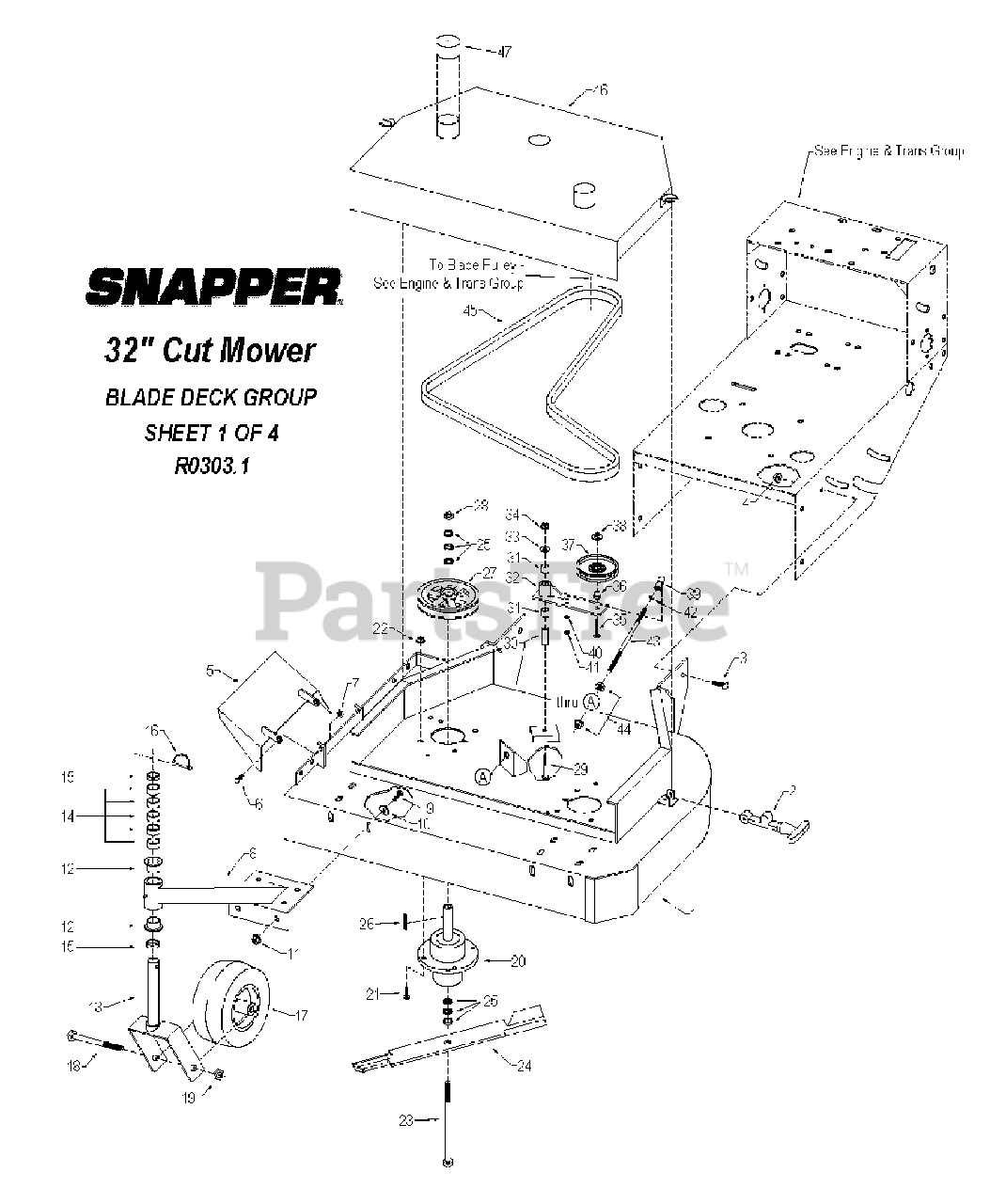

BLADE DECK GROUP Parts Diagram

  • Title

1

Snapper 3010260

Blade deck

$

$

Not available

Snapper 3079166

DECAL - 'Operating Rules 1-8' (Not shown)

$

$

Currently unavailable

Snapper 3079090

Decal - 'Danger - Keep Hands & Feet Away' (Not shown)
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 11

0

Snapper 3079088

Decal - 'Danger - Flying Material' (Not shown)

$

$

Currently unavailable

Snapper 3079091

Decal - 'Caution-Rotating Parts' (Not shown)
(Superseded to 3079091YP)

$5.99

$

Usually ships in 2-12 days

0

2

Snapper 3031895

Rubber hood strap (w/attaching hardware)

$

$

Currently unavailable

Snapper 3031100

3/16 pop rivet (attaches strap receiving cup to hood)(Not shown)

$

$

Not available

3

Snapper 3031033

3/8-16 x 1" hex bolt
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

4

Snapper 3031987

3/8-16 small serrated flange nut
(Superseded to 3031987YP)

$2.99

$

Usually ships in 2-12 days

0

5

Snapper 3027499

Discharge deflector
(Superseded to 3027499YP)

$111.99

$

Usually ships in 2-12 days

0

Snapper 3079090

Decal - 'Danger - Keep Hands & Feet Away' (Not shown)
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 11

0

Snapper 3079088

Decal - 'Danger - Flying Material' (Not shown)

$

$

Currently unavailable

6

Snapper 3031031

5/16-18 x 3/4" hex bolt
(Superseded to 195079GS)

$23.99

$

Usually ships in 2-12 days

0

7

Snapper 3031436

5/16-18 lock nut

$

$

Currently unavailable

8

Snapper 3033118

Caster arm
(Superseded to 3033118YP)

$176.99

$

Usually ships in 2-12 days

0

Snapper 3031437

Grease fitting - 3/16" push-in (Not shown)
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0

9

Snapper 3031033

3/8-16 x 1" hex bolt
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

10

Snapper 3031034

3/8" flat washer
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Snapper 3031987

3/8-16 small serrated flange nut
(Superseded to 3031987YP)

$2.99

$

Usually ships in 2-12 days

0

12

Snapper 3031306

1" flange bushing
(Superseded to 3031306YP)

$21.99

$

Usually ships in 2-12 days

0

13

Snapper 3033117

Caster horn
(Superseded to 3033117YP)

$173.99

$

Usually ships in 2-12 days

0

14

Snapper 3031441

Caster height spacer - 1/2"
(Superseded to 3031441YP)

$7.99

$

Usually ships in 2-12 days

0

15

Snapper 3031442

Caster height spacer - 1/4"
(Superseded to 3031442YP)

$6.99

$

In Stock, only 3 left!

0

Snapper 3031588

Caster spacer set (complete 1 side)(Not shown)

$

$

Not available

16

Snapper 3031305

Lynch pin

$

$

Not available

17

Snapper 3033115

9-3.50 x 4 wheel & tire assy
(Superseded to 7058167YP)

$120.99

$

Usually ships in 2-12 days

0

18

Snapper 3033116

5/8-11 x 5" hex bolt

$

$

Currently unavailable

19

Snapper 3031571

5/8-11 jam lock nut
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 20+

0

20

Snapper 3036300

Spindle assy

$

$

Not available

21

Snapper 3031033

3/8-16 x 1" hex bolt
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

22

Snapper 3031987

3/8-16 small serrated flange nut
(Superseded to 3031987YP)

$2.99

$

Usually ships in 2-12 days

0

23

Snapper 3031892

5/8-11 x 9-1/2" hex bolt
(Superseded to 5025019X76SM)

$15.99

$

Usually ships in 2-12 days

0

24

Snapper 3021584

16" lo-lift blade

$

$

Not available

25

Snapper 3031309

1/4" spacer

$

$

Not available

26

Snapper 3031170

Spindle shaft key - 1/4" x 1"
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

27

Snapper 3036145

Blade belt pulley
(Superseded to 3046806YP)

$64.99

$

Usually ships in 2-12 days

0

Snapper 3031439

5/16-18 x 1/4" socket set screw (Not shown)

$

$

Not available

28

Snapper 3031893

5/8-11 jam nut
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

29

Snapper 3031357

3/8-16 x 2-1/2" hex bolt
(Superseded to 703873)

$4.49

$

In Stock, only 3 left!

0

30

Snapper 3036313

Deck idler arm pivot boss
(Superseded to 3036313YP)

$72.99

$

Usually ships in 2-12 days

0

31

Snapper 3031224

3/4" sleeve bushing
(Superseded to 1723805SM)

$12.99

$

In Stock, only 2 left!

0

32

Snapper 3023241

Deck idler arm

$

$

Currently unavailable

33

Snapper 3031043

1/2" flat washer
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

34

Snapper 3031987

3/8-16 small serrated flange nut
(Superseded to 3031987YP)

$2.99

$

Usually ships in 2-12 days

0

35

Snapper 3031410

3/8-16 x 2" carriage bolt
(Superseded to 1960315SM)

$6.49

$

In Stock, only 1 left!

0

36

Snapper 3031686

3/4" spacer bushing
(Superseded to 1723578SM)

$12.99

$

Usually ships in 2-12 days

0

37

Snapper 3036120

Deck idler pulley
(Superseded to 3036120YP)

$39.99

$

Usually ships in 2-12 days

0

38

Snapper 3032132

3/8-16 large serrated flange nut

$

$

Currently unavailable

39

Snapper 3031402

3/8" ball joint - right hand thread
(Superseded to 3071782SM)

$

$

Not available

40

Snapper 3031008

3/8 lock washer
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

41

Snapper 3031568

3/8-24 jam nut
(Superseded to 7090482SM)

$4.49

$

In Stock, only 1 left!

0

42

Snapper 3031568

3/8-24 jam nut
(Superseded to 7090482SM)

$4.49

$

In Stock, only 1 left!

0

43

Snapper 3036226

Deck idler tension rod

$

$

Not available

44

Snapper 3031987

3/8-16 small serrated flange nut
(Superseded to 3031987YP)

$2.99

$

Usually ships in 2-12 days

0

45

Snapper 3036206

Blade belt

$

$

Not available

46

Snapper 3027415

Deck hood
(Superseded to 3027415YP)

$296.99

$

Usually ships in 2-12 days

0

Snapper 3031917

Mower hood edge trim - 27" length (Not shown)
(Superseded to 7014458YP)

$11.99

$

Usually ships in 2-12 days

0

Snapper 3046580

Decal - 'Snapper Pro' (Not shown)

$

$

Currently unavailable

Snapper 3075436

Decal - '32" ' (Not shown)

$

$

Currently unavailable

Snapper 3079090

Decal - 'Danger - Keep Hands & Feet Away' (Not shown)
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 11

0

Snapper 3079088

Decal - 'Danger - Flying Material' (Not shown)

$

$

Currently unavailable

47

Snapper 3031900

2" rubber hood cap

$

$

Currently unavailable
