SGT 27540D (2690667) - Snapper 54" Garden Tractor, 27hp Frame & Transmission Group Parts Diagram

54" Garden Tractor, 27hp

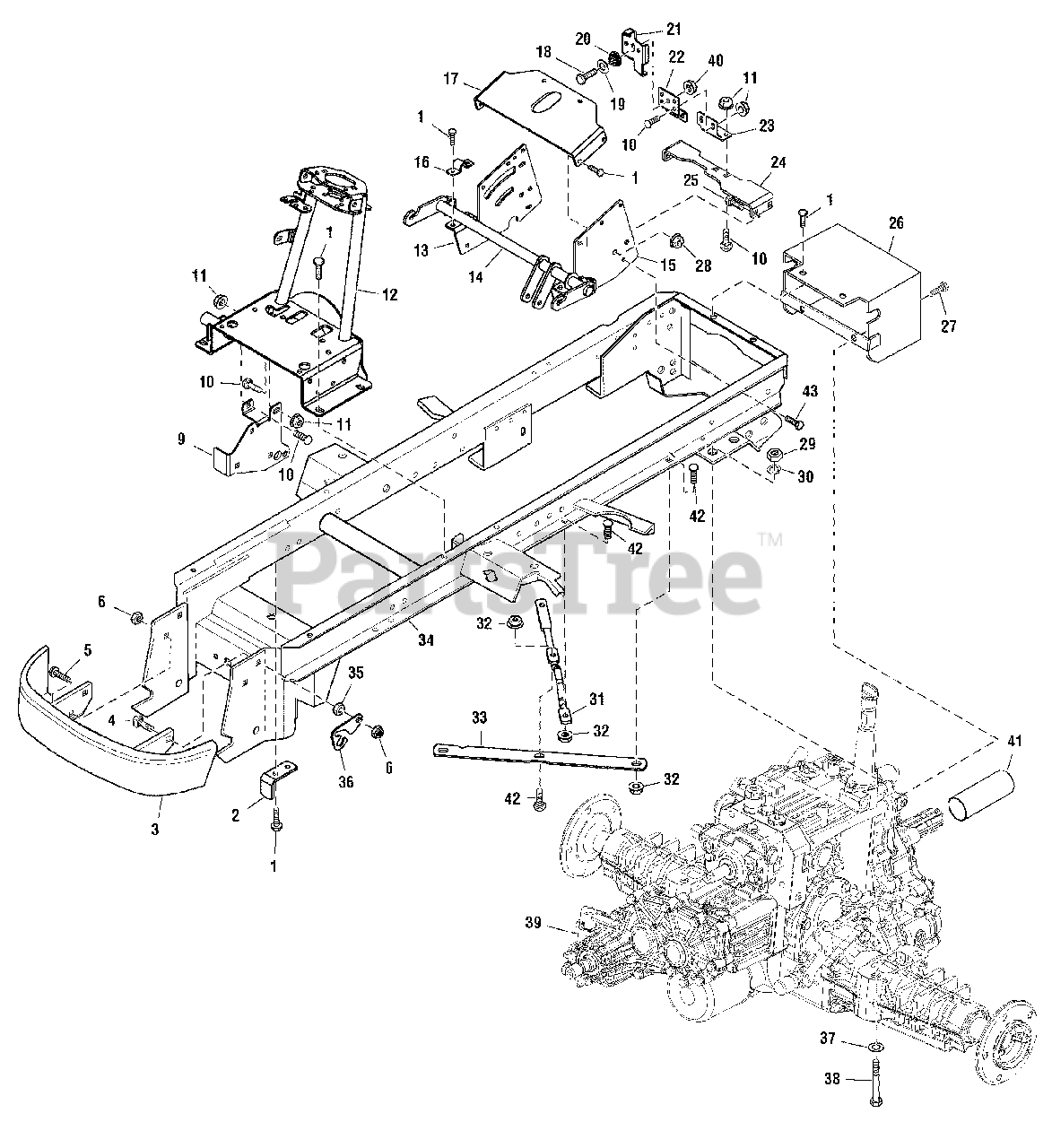

Frame & Transmission Group Parts Diagram

  • Title

1

Snapper 1664847SM

CAPSCREW, Hex, Washer Head, Taptite, 5/16-18 x 3/4, Black
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

2

Snapper 1725752ASM

BRACKET, Upstop

$10.99

$

Usually ships in 2-12 days

0

3

Snapper 1725171ASM

BUMPER & BRACKETS ASSEMBLY

$237.99

$

Usually ships in 2-12 days

0

4

Snapper 1960706SM

BOLT, Carriage, Short Neck, 1/2-13 x 2

$5.99

$

Usually ships in 2-12 days

0

5

Snapper 1920328SM

CAPSCREW, Hex, 1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper 1960708SM

NUT, Hex, Lock ESNA, 1/2-13
(Superseded to 703453)

$5.99

$

Usually ships in 2-12 days

0

9

Snapper 1724838ASM

SUPPORT, Control Valve

$24.99

$

Usually ships in 2-12 days

0

10

Snapper 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4, Black
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

11

Snapper 1960684SM

NUT, Hex, KEPS 5/16-18, Black
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

12

Snapper 1724108ASM

TOWER ASSEMBLY

$438.99

$

Usually ships in 2-12 days

0

13

Snapper 1725095ASM

SUPPORT, Seat Support, R.H.

$28.99

$

Usually ships in 2-12 days

0

14

Snapper 1724765ASM

SHAFT ASSEMBLY

$162.99

$

Usually ships in 2-12 days

0

15

Snapper 1725096ASM

SUPPORT, Seat Support, L.H.

$27.99

$

Usually ships in 2-12 days

0

16

Snapper 1720147ASM

STRAP
(Superseded to 1720147BZYP)

$9.99

$

Usually ships in 2-12 days

0

17

Snapper 1725094ASM

SUPPORT, Seat Deck

$31.99

$

Usually ships in 2-12 days

0

18

Snapper 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

19

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

20

Snapper 2153010SM

SPRING, Tension

$8.99

$

Usually ships in 2-12 days

0

21

Snapper 1724248SM

BRACKET, Free Wheel

$15.99

$

Usually ships in 2-12 days

0

22

Snapper 1725308SM

SUPPORT, Free Wheel Latch

$14.99

$

Usually ships in 2-12 days

0

23

Snapper 1725081ASM

SUPPORT, Dump Valve

$17.99

$

Usually ships in 2-12 days

0

24

Snapper 1724244ASM

BRACKET, Torque Strap

$25.99

$

Usually ships in 2-12 days

0

25

Snapper 1931350SM

CARRIAGE BOLT, 3/8-16 x 1 Black
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

26

Snapper 1724817ASM

SHIELD & BRACKET ASSEMBLY

$131.99

$

Usually ships in 2-12 days

0

27

Snapper 1960677SM

CAPSCREW, Hex Head, M12-1.75 x 25MM

Note: (540 PTO Models Only)

$4.99

$

Usually ships in 2-12 days

0

28

Snapper 1960687SM

NUT, Hex, Flange ESNA, 3/8-16, Black
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

29

Snapper 1960423SM

NUT, Hex Flange Center Lock, M12-1.25

$3.99

$

Usually ships in 2-12 days

0

30

Snapper 1916966SM

LOCKWASHER, Spring, 1/2
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

31

Snapper 1725635SM

ROD

$29.99

$

Usually ships in 2-12 days

0

32

Snapper 1960680SM

NUT, Hex, KEPS, Conical Washer, 3/8-16

$6.49

$

Usually ships in 2-12 days

0

33

Snapper 1724936ASM

BRACE, Cross

$15.99

$

Usually ships in 2-12 days

0

34

Snapper 1724144ASM

FRAME ASSEMBLY

$1111.99

$

Usually ships in 2-12 days

0

35

Snapper 1913744SM

NUT, Hex Jam, 1/2-13

$4.99

$

In Stock, Qty 19

0

36

Snapper 1726019ASM

LOCK, Hood

$9.99

$

Usually ships in 2-12 days

0

37

Snapper 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

38

Snapper 1960482SM

CAPSCREW, Hex Head, M12-1.25 x 100MM,

$6.49

$

Usually ships in 2-12 days

0

39

Snapper 1724561SM

TRANSMISSION ASSEMBLY, 4WD, K92C, W/540
(Superseded to 1752345YP)

$7989.99

$

Usually ships in 2-12 days

0

40

Snapper 1960686SM

NUT, Hex, Flange ESNA, 5/16-18, Black
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

41

Snapper 1726474SM

COVER, PTO Shaft

$7.99

$

In Stock, only 1 left!

0

42

Snapper 1960268SM

BOLT, 3/8-16 x 1 1/4

$4.49

$

In Stock, Qty 10

0

43

Snapper 1960373SM

SCREW, Hex, Washer 5/16-18 x 1.000
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0
