SGT 27540D (2690634) - Snapper 54" Garden Tractor, 27hp Steering & Front Axle Group Parts Diagram

54" Garden Tractor, 27hp

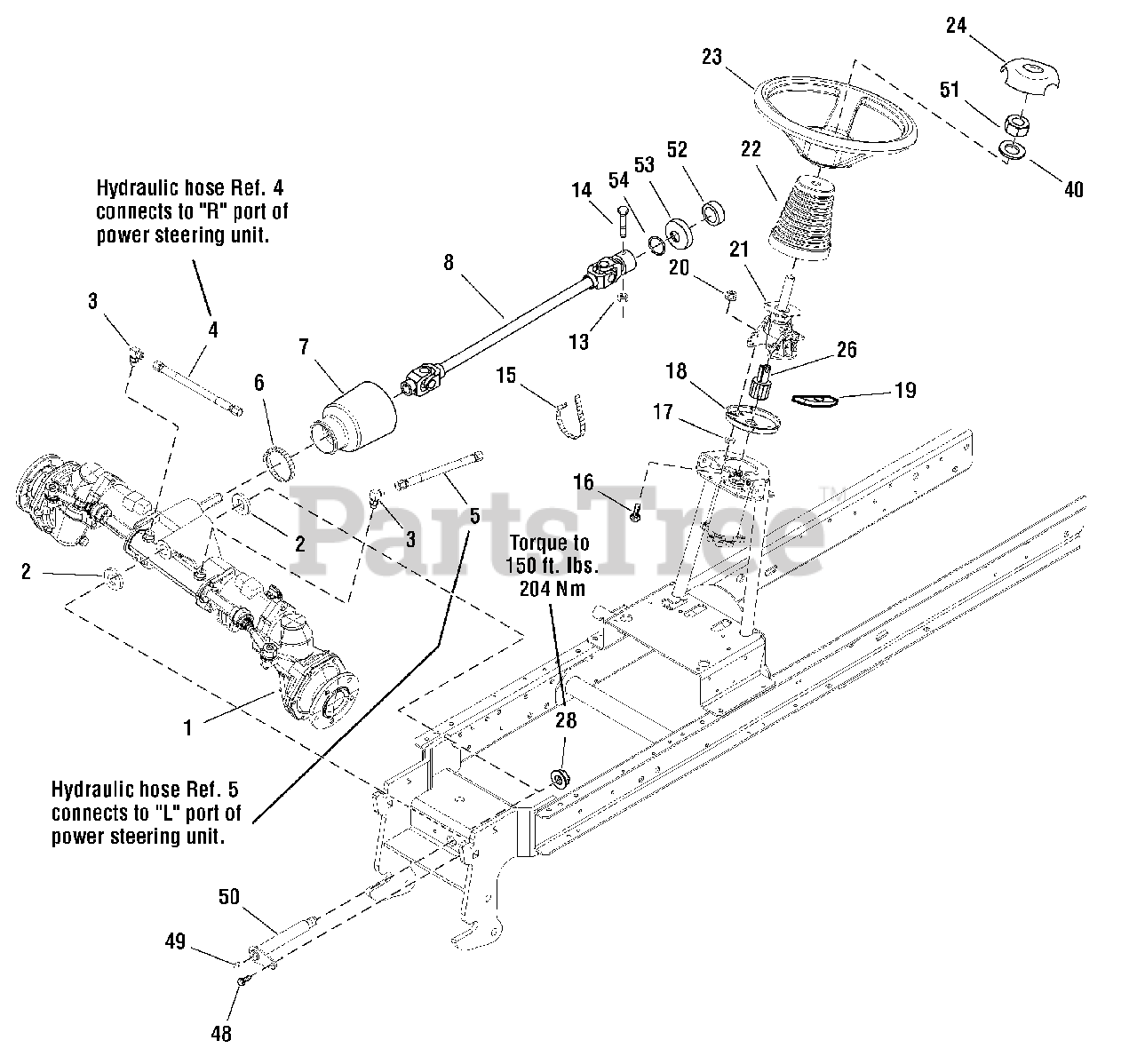

Steering & Front Axle Group Parts Diagram

  • Title

1

Snapper 1724273SM

AXLE ASSSEMBLY

$

$

Not available

2

Snapper 1960201SM

WASHER

$4.99

$

In Stock, Qty 14

0

3

Snapper 1725013SM

FITTING, Elbow Hose

$18.99

$

Usually ships in 2-12 days

0

4

Snapper 1725012SM

HOSE ASSEMBLY, Hydraulic

$

$

Not available

5

Snapper 1724890SM

HOSE ASSEMBLY, Hydrualic

$96.99

$

Usually ships in 2-12 days

0

6

Snapper 1725617SM

CLAMP, Worm Hose

$5.99

$

Usually ships in 2-12 days

0

7

Snapper 1725581SM

COVER, Drive Shaft

$71.99

$

Usually ships in 2-12 days

0

8

Snapper 1724562SM

SHAFT ASSEMBLY

$438.99

$

Usually ships in 2-12 days

0

13

Snapper 1919439SM

NUT, Hex, Lock, 3/8-16 NC
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

14

Snapper 1921971SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4 G5
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

15

Snapper 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

16

Snapper 1960223SM

BOLT, Carriage, 5/16-18 x 1 1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

17

Snapper 1933988SM

NUT, Push, 1/4
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

18

Snapper 1724685ASM

PLATE, Steering

$19.99

$

Usually ships in 2-12 days

0

19

Snapper 1723898SM

SPACER, Flat

$7.49

$

In Stock, only 1 left!

0

20

Snapper 1960636SM

NUT, Hex, Keps 5/16-18 Black

$4.99

$

In Stock, only 1 left!

0

21

Snapper 1734002SM

TILT STEERING UNIT, Legacy

$

$

Not available

22

Snapper 1724368SM

BELLOWS, Tilt Steering Unit With Slot
(Superseded to 1737551YP)

$26.99

$

Usually ships in 2-12 days

0

23

Snapper 1733363SM

STEERING WHEEL

$100.99

$

In Stock, only 1 left!

0

24

Snapper 1725024SM

CAP, Steering Wheel

$7.49

$

In Stock, only 1 left!

0

26

Snapper 1725294SM

ADAPTER TILT, 9 Tooth With Powerdered Metal

$15.99

$

Usually ships in 2-12 days

0

28

Snapper 1960691SM

NUT, Hex, Toplock Flange 3/4-10

$7.49

$

Usually ships in 2-12 days

0

40

Snapper 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

48

Snapper 1664847SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

49

Snapper 1704314SM

FITTING, Lube, 1/4 Drive
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

50

Snapper 1724841SM

SHAFT & ANCHOR ASSEMBLY, Pivot

$210.99

$

Usually ships in 2-12 days

0

51

Snapper 1960576SM

NUT, Hex Lock, ESNA Light, 5/8-18

$5.99

$

In Stock, Qty 8

0

52

Snapper 1732090SM

SPACER, 0.793 x 1-3/4 x 1/4

$11.99

$

Usually ships in 2-12 days

0

53

Snapper 1732089SM

CUP, Grass Shield

$13.99

$

Usually ships in 2-12 days

0

54

Snapper 2176111SM

O-RING

$4.49

$

In Stock, only 1 left!

0
