SGT 27540D (2690629) - Snapper 54" Garden Tractor, 27hp Wheel & Tires Group Parts Diagram

54" Garden Tractor, 27hp

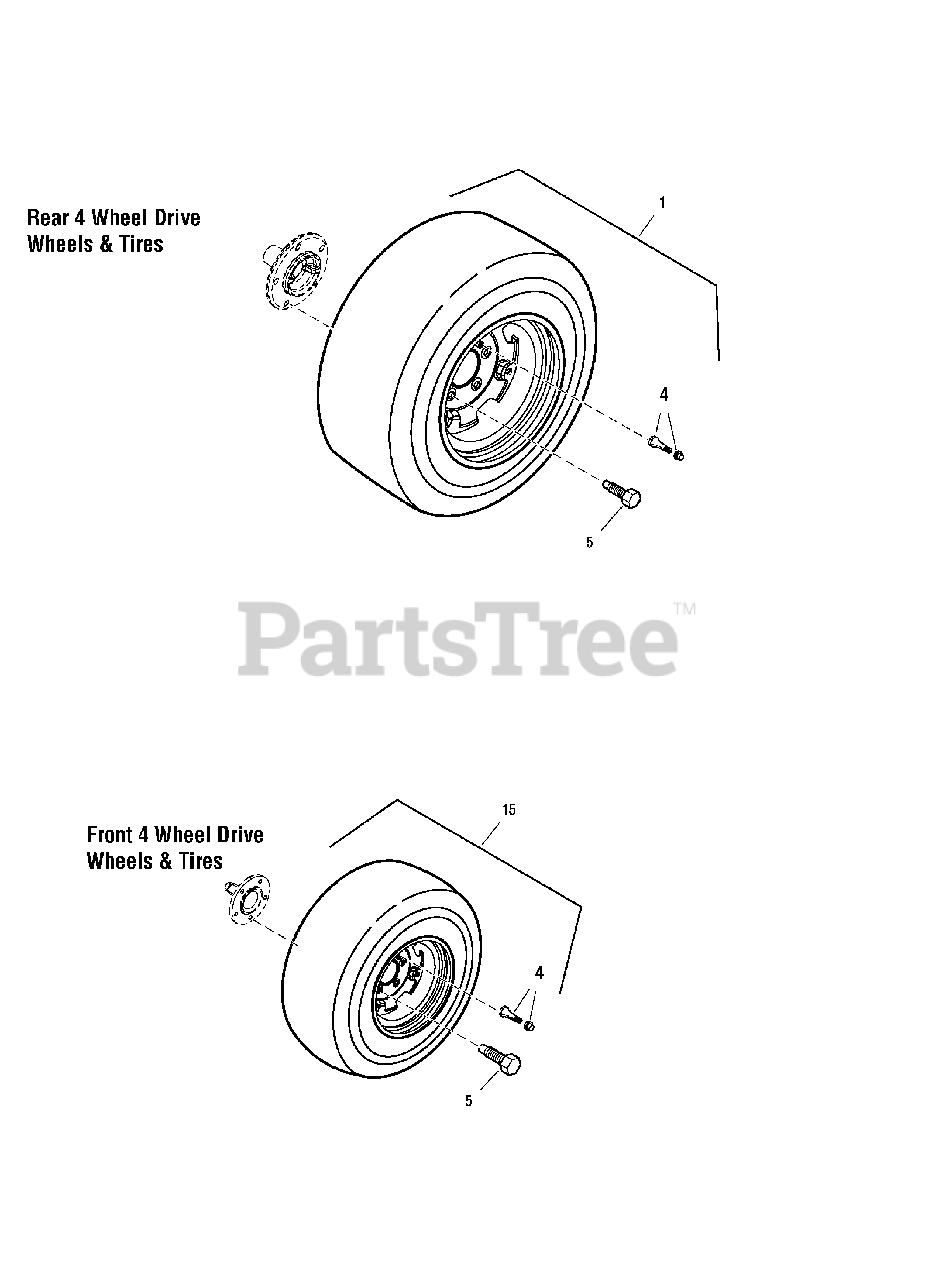

Wheel & Tires Group Parts Diagram

  • Title

1

Snapper 1724845

WHEEL & TIRE ASSEMBLY, Turf Tires, Rear
(Superseded to 1724845SM)

Note: (Includes Reference Nos. 2, 3, & 4)

$501.99

$

Usually ships in 2-12 days

0

1

Snapper 1726030

WHEEL & TIRE ASSEMBLY, HD Field Trac, Rear
(Superseded to 1726030SM)

Note: (Includes Reference No. 4)

$445.99

$

Usually ships in 2-12 days

0

2

Snapper 1725724

TIRE, Turf Tire, 26 x 12-12
(Superseded to 1725724SM)

$307.99

$

Usually ships in 2-12 days

0

3

Snapper 1725723

WHEEL, Turf Tire, Rear 8.5 x 12
(Superseded to 1726030SM)

$445.99

$

Usually ships in 2-12 days

0

4

Snapper 7012234

VALVE STEM & CAP
(Superseded to 7012234SM)

Note: (Was 2172353)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 1729280

HUB BOLT
(Superseded to 1729280SM)

$6.49

$

In Stock, Qty 6

0

15

Snapper 1724849

WHEEL & TIRE ASSEMBLY, Turf Tires, Front, 4 Wheel Drive
(Superseded to 1724849SM)

Note: (Includes Reference Nos. 4, 16, & 17)

$222.99

$

Usually ships in 2-12 days

0

15

Snapper 1726032

WHEEL & TIRE ASSEMBLY, HD Field Trac, Front, 4 Wheel Drive
(Superseded to 1726032SM)

Note: (Includes Reference No. 4)

$353.99

$

Usually ships in 2-12 days

0

16

Snapper 1725720

TIRE, Turf Tire, Front, 18 x 8.5-8
(Superseded to 1725720SM)

$105.99

$

Usually ships in 2-12 days

0

17

Snapper 1725719

WHEEL, Turf Tire, Front, 4 Wheel Drive
(Superseded to 1725719SM)

$114.99

$

In Stock, only 1 left!

0
