SGT 18H46 A - Weed Eater Lawn Tractor (2001-09) Electrical Parts Diagram

Lawn Tractor

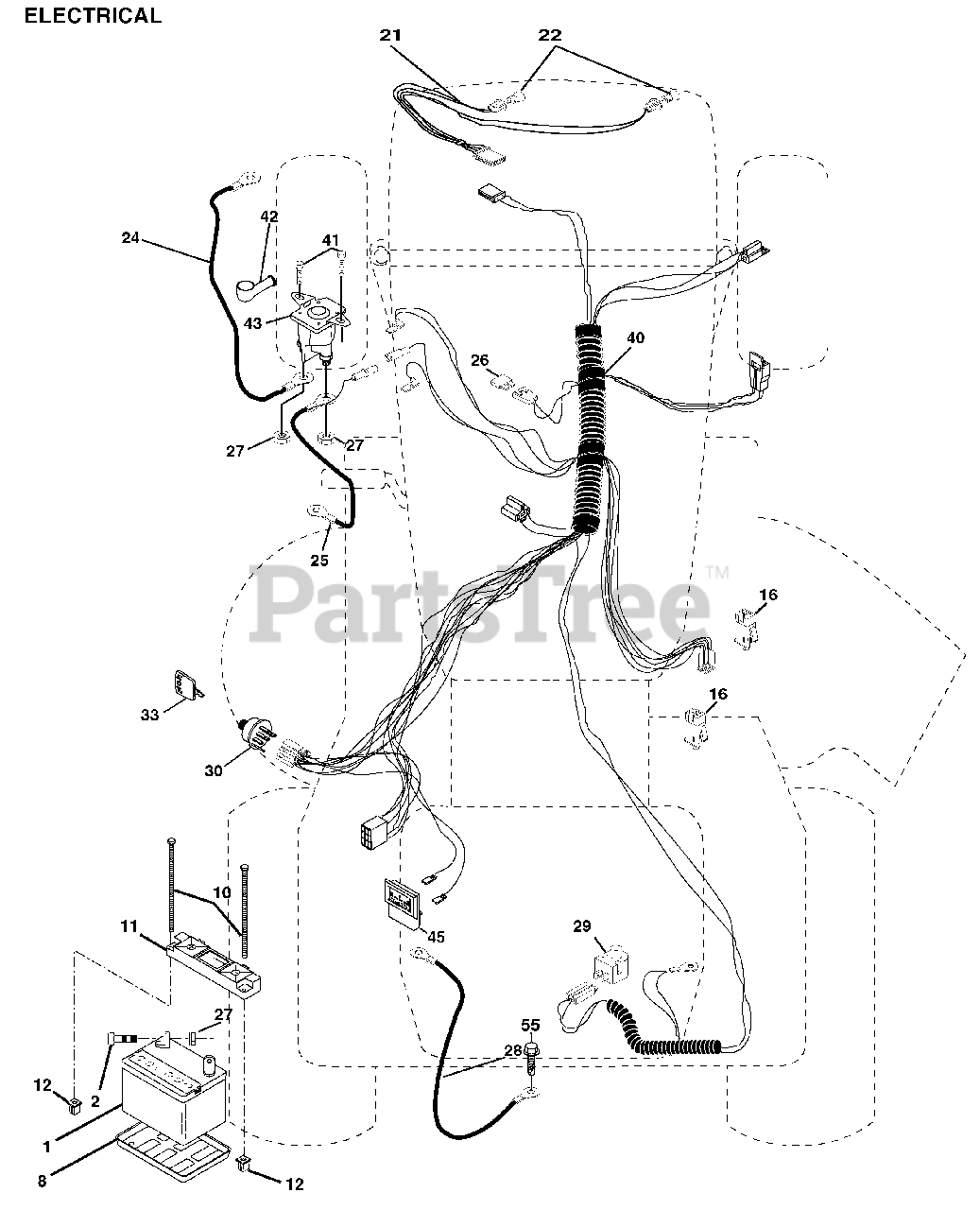

Electrical Parts Diagram

  • Title

1

Electrolux/AYP 163465

Battery, 12 Volt, 28 Amp
(Superseded to 532123899)

$194.99

$

In Stock, only 2 left!

0

2

Electrolux/AYP 74760412

Bolt, Hex Head 1/4-20 UNC x 3/4
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

8

Electrolux/AYP 7603J

Tray, Battery
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 145211

Bolt, Battery Front 1/4-20 x 7.5 Zinc
(Superseded to 532145211)

$

$

Not available

11

Electrolux/AYP 150109

Holddown Battery Dash Mount
(Superseded to 532150109)

$

$

Not available

12

Electrolux/AYP 145769

Nut, Push Nylon 1/4" Battery Front
(Superseded to 532145769)

$

$

Not available

16

Electrolux/AYP 153664

Switch Interlock Push-In
(Superseded to 532176138)

$22.99

$

In Stock, Qty 5

0

21

Electrolux/AYP 166181

Harness, Light
(Superseded to 532166181)

$

$

Not available

22

Electrolux/AYP 4152J

Bulb, Light
(Superseded to 532004152)

$4.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 108423X

Cable, Battery
(Superseded to 532108423)

$8.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 146148

Cable, Battery
(Superseded to 532146148)

$18.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 175158

Fuse, 20 Amp
(Superseded to 532175158)

$7.49

$

In Stock, only 1 left!

0

27

Murray 73510400

Nut, Hex, Keps 1/4-20 UNC
(Superseded to 873640400)

$

$

Not available

28

Electrolux/AYP 145491

Cable, Ground, 6 Gauge, 12", Black
(Superseded to 532145491)

$10.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 121305X

Switch, Plunger
(Superseded to 532421062)

$14.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 175566

Switch, Ignition, Push-In
(Superseded to 532175566)

$26.99

$

In Stock, only 4 left!

0

33

Electrolux/AYP 140401

Key, Ignition
(Superseded to 532140401)

$6.99

$

In Stock, Qty 7

0

40

Electrolux/AYP 170223

Harness, Ignition

$

$

Not available

41

Electrolux/AYP 71110408

Bolt, Hex, Fin. 1/4-20 x 1/2
(Superseded to 871110408)

$3.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 131563

Cover, Terminal, Red
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Electrolux/AYP 175141

Solenoid

$

$

Not available

45

Electrolux/AYP 121433X

Ammeter, Rectangular
(Superseded to 532121433)

$

$

Not available

55

Electrolux/AYP 17490508

Screw, Thdrol 5/16-18 x 1/2 TYT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0
