SGCZ 2500 S - RedMax Reciprocator Trimmer (SN: 2842 & Above) (2002-08) 026 - DRIVE UNIT/CASE UNIT Parts Diagram

Reciprocator Trimmer

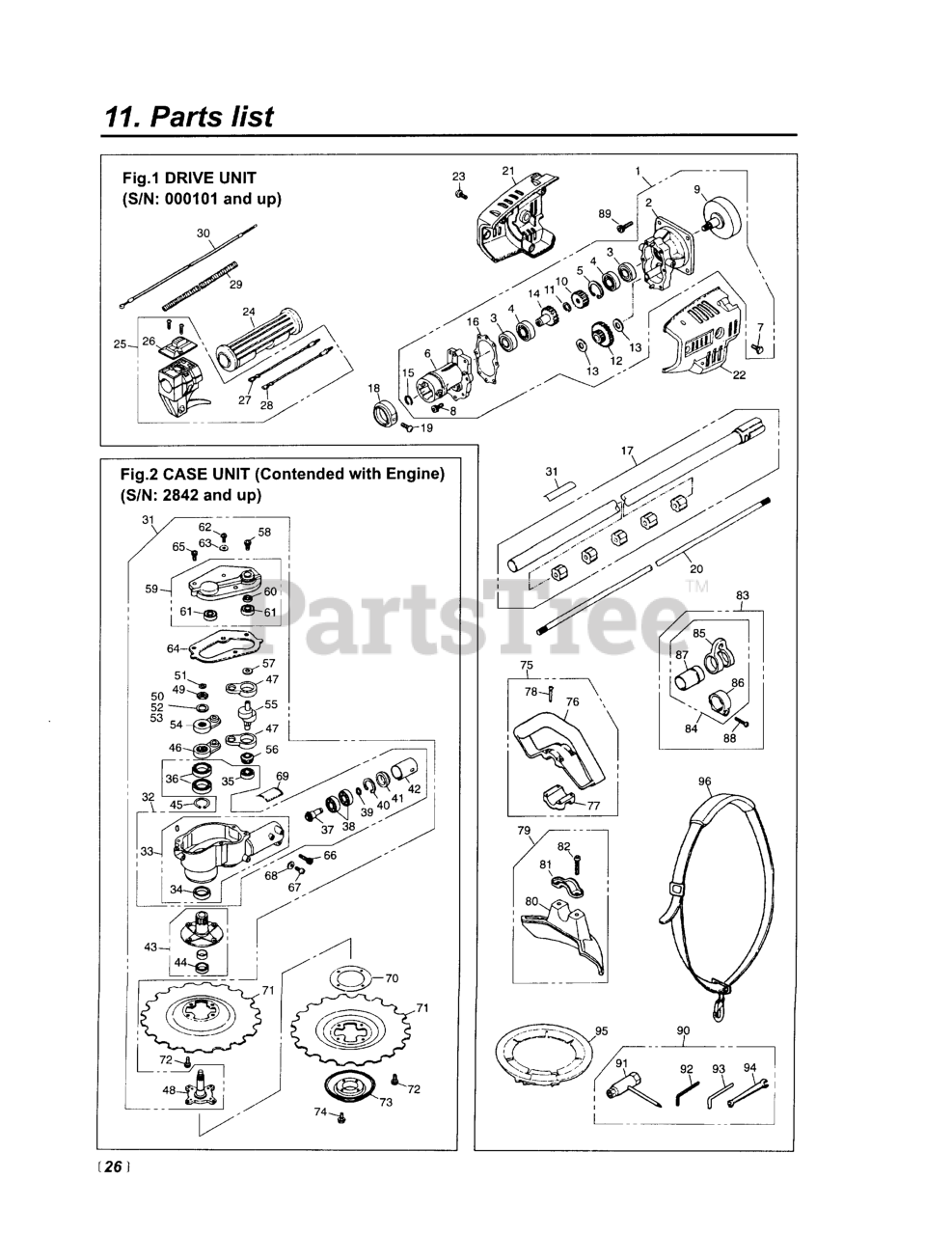

026 - DRIVE UNIT/CASE UNIT Parts Diagram

  • Title
1

RedMax T306511000

MISSION ASSEMBLY

$212.79

$

Usually ships in 3-10 days

0

2

RedMax 380511102

CASE, REAR COMP (RPLS -11101)
(Superseded to 521236901)

$145.99

$

Usually ships in 3-10 days

0

3

$

$

Not available

4

RedMax 0600006001

BEARING
(Superseded to 516127901)

$6.99

$

In Stock, only 1 left!

0

5

RedMax 0406502812

RING, SNAP, M28 x 1.2
(Superseded to 506609901)

$4.99

$

In Stock, only 3 left!

0

6

RedMax 380511211

CASE, FRONT
(Superseded to 515063201)

$45.99

$

Usually ships in 3-10 days

0

7

RedMax 022500608

BOLT, M6 x 8

$0.31

$

Usually ships in 3-10 days

0

8

RedMax 0125230520

BOLT, M5 X 20
(Superseded to 516070801)

$6.49

$

In Stock, Qty 11

0

9

RedMax 380511310

DRUM
(Superseded to 515063401)

$74.99

$

Usually ships in 3-10 days

0

10

RedMax 380511320

GEAR, PINION

$14.05

$

Usually ships in 3-10 days

0

11

RedMax 318013330

RING, SNAP
(Superseded to 514128201)

$4.99

$

In Stock, only 3 left!

0

12

RedMax 380511331

GEAR (RPLS 3805-11330)
(Superseded to 515063601)

$31.99

$

Usually ships in 3-10 days

0

13

RedMax 380511370

WASHER
(Superseded to 516968901)

$3.49

$

Usually ships in 3-10 days

0

14

RedMax 380511360

GEAR, WHEEL

$56.35

$

Usually ships in 3-10 days

0

15

RedMax 313013270

04064-01210
(Superseded to 516124101)

$4.99

$

In Stock, only 3 left!

0

16

RedMax 380511411

3805-11412
(Superseded to 521238101)

$3.49

$

In Stock, only 2 left!

0

17

RedMax 380512100

3805-12101
(Superseded to 521238501)

$79.99

$

Usually ships in 3-10 days

0

18

RedMax 356511341

CAP
(Superseded to 514381901)

$4.99

$

Usually ships in 3-10 days

0

19

RedMax 026390510

SCREW, M5 X 10
(Superseded to 516112901)

$3.99

$

Usually ships in 3-10 days

0

20

RedMax 380512210

SHAFT
(Superseded to 515065001)

$

$

Not available

21

RedMax 380511511

COVER, RIGHT (RPLS. -11510)

$8.98

$

Usually ships in 3-10 days

0

22

RedMax 380511521

COVER, LEFT (RPLS -11520)
(Superseded to 521238301)

$

$

Not available

23

$0.32

$

Usually ships in 3-10 days

0

24

RedMax 357732141

GRIP (RPLS 3577-32140 & 3220-
(Superseded to 521651001)

$

$

Not available

25

RedMax T306512200

T3065-12201
(Superseded to 521529901)

$

$

Not available

26

RedMax 611014410020

6110-14410-02

$

$

Not available

27

RedMax T300212220

CORD (A), BLACK
(Superseded to 521803401)

$8.49

$

In Stock, only 1 left!

0

28

RedMax T300212230

CORD (B), RED
(Superseded to 521803501)

$5.99

$

Usually ships in 3-10 days

0

29

RedMax T300212240

TUBE (RPLS 4900-72141)
(Superseded to 512497101)

$4.99

$

Usually ships in 3-10 days

0

30

RedMax T300283100

CABLE (RPLS 5580-83100)
(Superseded to 512498601)

$18.99

$

Usually ships in 3-10 days

0

1-31

RedMax T306512510

PLATE, NAME (SGCX2600S)

$2.28

$

Usually ships in 3-10 days

0

75

RedMax 642014100

HANDLE ASSEMBLY
(Superseded to 521465701)

$

$

Not available

76

RedMax 642014311

HANDLE
(Superseded to 515625501)

$

$

Not available

77

$

$

Not available

78

RedMax 026390535

SCREW, M5 x 35
(Superseded to 516113601)

$

$

Not available

79

RedMax 356524001

GUARD ASSY (RPLS -24000)
(Superseded to 521197701)

$20.99

$

Usually ships in 3-10 days

0

80

RedMax 356524111

GUARD (RPLS -24110)
(Superseded to 521197801)

$9.49

$

In Stock, only 1 left!

0

81

RedMax 352024120

CLAMP (REPLACES 5807-24120)
(Superseded to 521160201)

$

$

Not available

82

RedMax 354024130

BOLT, M6 x 1.30
(Superseded to 521176001)

$4.99

$

In Stock, only 2 left!

0

83

RedMax 642017300

HANGER ASSEMBLY
(Superseded to 521466301)

$

$

Not available

84

RedMax 642017400

HANGER COMPLETE
(Superseded to 521466401)

$14.99

$

Usually ships in 3-10 days

0

85

RedMax 936617110

HANGER
(Superseded to 515903601)

$

$

Not available

86

RedMax 936617120

CLAMP
(Superseded to 515903701)

$

$

Not available

87

RedMax 642017410

SLEEVE
(Superseded to 515626001)

$2.49

$

Usually ships in 3-10 days

0

88

RedMax 026390525

SCREW, M5 x 25
(Superseded to 516113401)

$

$

Not available

89

RedMax 646891150

BOLT, M6 x 20

$0.39

$

Usually ships in 3-10 days

0

90

RedMax T150091000

TOOL SET (SGCZ2500S)

$8.45

$

Usually ships in 3-10 days

0

91

RedMax T300291310

SOCKET
(Superseded to 521804801)

$

$

Not available

92

RedMax 0900700425

WRENCH (TOOL)

$0.75

$

Usually ships in 3-10 days

0

93

RedMax 0900700528

WRENCH (TOOL)
(Superseded to 516144701)

$4.99

$

Usually ships in 3-10 days

0

94

RedMax 354091120

SPANNER, 8 X 10 (RPLS 2540- )
(Superseded to 506615001)

$4.99

$

In Stock, Qty 10

0

95

RedMax 625115910

COVER (REPLACES D0041) ACC.

$9.86

$

Usually ships in 3-10 days

0

96

RedMax T300217200

848-B50-3610

$

$

Not available

2-31

RedMax T306598000

CUTTERCASE ASSEMBLY
(Superseded to 570920301)

$787.99

$

Usually ships in 3-10 days

0

32

RedMax 397498102

CUTTERCASE (RPLS -98100)
(Superseded to 521315201)

$363.99

$

Usually ships in 3-10 days

0

33

RedMax 397413123

3974-13102

$

$

Not available

34

RedMax 380513130

SEAL, OIL
(Superseded to 515065801)

$6.99

$

Usually ships in 3-10 days

0

35

$

$

Not available

36

RedMax 0600006804

BEARING
(Superseded to 516129201)

$

$

Not available

37

RedMax 380513930

PINION
(Superseded to 515068901)

$22.99

$

Usually ships in 3-10 days

0

38

RedMax 0600006000

BEARING (RPLS T3403-13510)
(Superseded to 505170201)

$9.99

$

In Stock, only 3 left!

0

39

RedMax 318013330

RING, SNAP
(Superseded to 514128201)

$4.99

$

In Stock, only 3 left!

0

40

RedMax 0406502612

RING, SNAP, M26 X 1.2
(Superseded to 516125501)

$4.99

$

In Stock, only 2 left!

0

41

RedMax 380513940

PACKING
(Superseded to 521242801)

$5.99

$

In Stock, only 2 left!

0

42

RedMax 380513951

SPACER (RPLS -13950)
(Superseded to 515069201)

$15.99

$

Usually ships in 3-10 days

0

43

RedMax 380513200

SHAFT, OUTER-C
(Superseded to 521239801)

$159.99

$

In Stock, only 1 left!

0

44

RedMax 380513230

SEAL, OIL
(Superseded to 515066401)

$5.99

$

Usually ships in 3-10 days

0

45

RedMax 0406402012

RING, SNAP, M20 x 1.2
(Superseded to 516124601)

$3.49

$

Usually ships in 3-10 days

0

46

RedMax 380513412

ARM, LOWER (RPLS -13411)
(Superseded to 515066701)

$85.99

$

Usually ships in 3-10 days

0

47

RedMax 380513432

848-8R2-61M3
(Superseded to 521530001)

$68.99

$

Usually ships in 3-10 days

0

48

RedMax 380513510

SHAFT, INNER
(Superseded to 515067001)

$96.99

$

Usually ships in 3-10 days

0

$8.59

$

Usually ships in 3-10 days

0

50

RedMax 380513550

SHIM, 0.3t

$0.76

$

Usually ships in 3-10 days

0

$0.76

$

Usually ships in 3-10 days

0

52

RedMax 380513570

SHIM, 0.2T
(Superseded to 515067501)

$3.49

$

Usually ships in 3-10 days

0

53

RedMax 380513580

SHIM, 0.1t
(Superseded to 521241201)

$3.49

$

In Stock, only 2 left!

0

54

RedMax 380513612

ARM, UPPER (RPLS -13611)

$79.22

$

Usually ships in 3-10 days

0

55

RedMax 380513711

CRANKSHAFT (RPLS -13710)
(Superseded to 515067901)

$96.99

$

In Stock, only 1 left!

0

56

RedMax 380513720

GEAR
(Superseded to 515068001)

$45.99

$

In Stock, only 3 left!

0

57

RedMax 0164120812

WASHER, M8 x 1.2
(Superseded to 516077901)

$3.49

$

In Stock, only 1 left!

0

58

RedMax 380513750

BOLT
(Superseded to 515068101)

$3.49

$

In Stock, only 2 left!

0

59

RedMax T306513800

COVER COMP

$75.82

$

Usually ships in 3-10 days

0

60

RedMax 380513840

SEAL, OIL
(Superseded to 515068601)

$5.99

$

In Stock, only 2 left!

0

61

$

$

Not available

62

RedMax 026300610

SCREW, M6 x 10

$

$

Not available

63

RedMax 0164220608

WASHER, M6 x .8
(Superseded to 516078601)

$

$

Not available

64

RedMax 380513910

GASKET
(Superseded to 515068701)

$4.99

$

In Stock, Qty 5

0

65

RedMax 0125240520

BOLT, M5 x 20
(Superseded to 516072901)

$3.99

$

In Stock, only 2 left!

0

66

RedMax 354013260

BOLT, M6 x 1.35
(Superseded to 521171901)

$3.99

$

Usually ships in 3-10 days

0

67

RedMax 026360514

SCREW, M5 x 14
(Superseded to 516112001)

$3.49

$

Usually ships in 3-10 days

0

68

RedMax 0164220508

WASHER, M5x.8(RPLS 01624-20508
(Superseded to 544276501)

$

$

Not available

69

RedMax 397413991

LABEL, CAUTION

$0.85

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

71

RedMax T306515110

3805-6
(Superseded to 597545902)

$133.99

$

In Stock, Qty 10

0

72

RedMax 0125240608

BOLT, M6 x 8
(Superseded to 516073201)

$3.49

$

In Stock, Qty 6

0

73

RedMax 380515140

STABILIZER (RPLS -15151)
(Superseded to 515070001)

$17.99

$

In Stock, Qty 12

0

74

RedMax 026330508

SCREW, M5 X 8
(Superseded to 510478101)

$4.99

$

In Stock, Qty 13

0
