SGCZ 2460 S (966599501) - RedMax Reciprocator Trimmer (2010-04) SHAFT HANDLE Parts Diagram

Reciprocator Trimmer

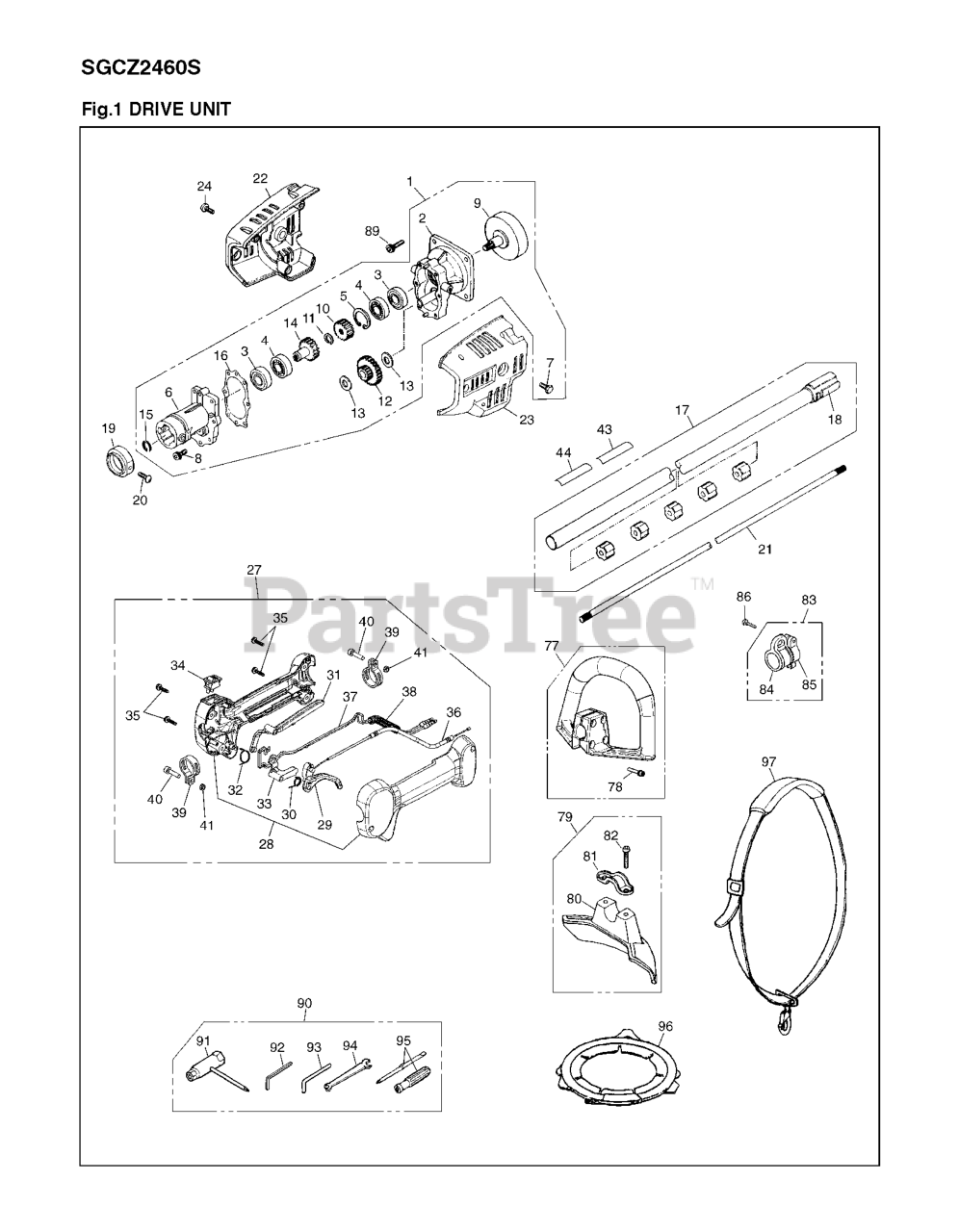

SHAFT HANDLE Parts Diagram

  • Title

1

RedMax 521808101

MISSION ASSEMBLY
(Superseded to 570919501)

Note: . 2 THRU 16

$227.99

$

Usually ships in 3-10 days

0

2

RedMax 521236901

CASE,REAR COMP(RPLS 3805-11101

$145.99

$

Usually ships in 3-10 days

0

3

RedMax 529269801

BEARING

$12.99

$

In Stock, only 2 left!

0

4

RedMax 516127901

BEARING

$6.99

$

In Stock, only 1 left!

0

5

RedMax 506609901

RING

$4.99

$

In Stock, only 3 left!

0

6

RedMax 521237201

CASE, FRONT
(Superseded to 515063201)

$45.99

$

Usually ships in 3-10 days

0

7

RedMax 516087501

BOLT, M6 x 8
(Superseded to 510453101)

$3.49

$

Usually ships in 3-10 days

0

8

RedMax 516070801

BOLT
(Superseded to 506609301)

$6.49

$

In Stock, Qty 11

0

9

RedMax 521237301

DRUM
(Superseded to 515063401)

$74.99

$

Usually ships in 3-10 days

0

10

RedMax 521237401

GEAR, PINION
(Superseded to 515063501)

$17.99

$

Usually ships in 3-10 days

0

11

RedMax 520891101

RING, SNAP
(Superseded to 514128201)

$4.99

$

In Stock, only 3 left!

0

12

RedMax 521237601

GEAR (RPLS 380511330)
(Superseded to 515063601)

$31.99

$

Usually ships in 3-10 days

0

13

RedMax 516968901

WASHER***
(Superseded to 522638901)

$3.49

$

Usually ships in 3-10 days

0

14

RedMax 521237801

GEAR, WHEEL
(Superseded to 515063801)

$62.99

$

Usually ships in 3-10 days

0

15

RedMax 520863501

$

$

Not available

16

RedMax 521238101

GASKET (RPLS 380511411)
(Superseded to 515064101)

$3.49

$

In Stock, only 2 left!

0

17

RedMax 521238501

PIPE COMP (RPLS 380512100)

$79.99

$

Usually ships in 3-10 days

0

18

RedMax 521238801

CUSHION (RPLS 380512130)
(Superseded to 515064901)

$9.49

$

In Stock, only 2 left!

0

19

RedMax 521196401

CAP
(Superseded to 514381901)

$4.99

$

Usually ships in 3-10 days

0

20

RedMax 516112901

SCREW, M5 x 10
(Superseded to 510481801)

$3.99

$

Usually ships in 3-10 days

0

21

RedMax 521238901

SHAFT
(Superseded to 515065001)

$

$

Not available

22

RedMax 521238201

COVER,RIGHT(RPLS380511510)***
(Superseded to 515064201)

$

$

Not available

23

RedMax 521238301

COVER, LEFT(RPLS 380511520)***
(Superseded to 515064301)

$

$

Not available

24

RedMax 516665801

SCREW
(Superseded to 513495601)

$

$

Not available

27

RedMax 574390401

GRIP ASSY
(Superseded to 574390402)

Note: . 28 THRU 41

$113.99

$

In Stock, only 1 left!

0

28

RedMax 576475201

GRIP HALF SET
(Superseded to 576475202)

$31.99

$

In Stock, only 2 left!

0

29

RedMax 529258801

LEVER, THROTTLE

$4.99

$

Usually ships in 3-10 days

0

30

RedMax 529259601

SPRING, THROTTLE

$7.49

$

In Stock, only 2 left!

0

31

RedMax 529259001

LEVER FOR GRIP (RPLS -0600)
(Superseded to 578778001)

$4.99

$

In Stock, only 1 left!

0

32

RedMax 574390801

SPRING JOINT

$3.49

$

Usually ships in 3-10 days

0

33

RedMax 529259201

LEVER JOINT

$4.99

$

In Stock, only 2 left!

0

34

RedMax 521851601

SWITCH

$11.99

$

In Stock, only 3 left!

0

35

RedMax 521517701

SCREW

$4.99

$

Usually ships in 3-10 days

0

36

RedMax 529257501

THROTTLE CABLE

$10.99

$

Usually ships in 3-10 days

0

37

RedMax 529256201

CORD

$

$

Not available

38

RedMax 521348001

TUBE
(Superseded to 512497101)

$4.99

$

Usually ships in 3-10 days

0

39

RedMax 529259401

BAND

$10.99

$

In Stock, only 1 left!

0

40

RedMax 521345401

SCREW
(Superseded to 504114301)

$6.49

$

In Stock, only 2 left!

0

41

RedMax 510911101

NUT
(Superseded to 579000001)

$8.99

$

In Stock, only 1 left!

0

43

RedMax 576119101

LABEL
(Superseded to 580261116)

$4.99

$

Usually ships in 3-10 days

0

44

RedMax 510962901

LABEL CAUTON FOR BC

$7.49

$

Usually ships in 3-10 days

0

77

RedMax 526056401

HANDLE ASSY. (RPLS T319514001)

Note: . 78

$26.99

$

In Stock, only 3 left!

0

78

RedMax 521863101

SCREW

$3.49

$

In Stock, Qty 11

0

79

RedMax 521197701

GUARD ASSY (RPLS 3565-24000)

Note: . 80 81 82

$20.99

$

Usually ships in 3-10 days

0

80

RedMax 521197801

GUARD (RPLS 3565-24110)
(Superseded to 514383601)

$9.49

$

In Stock, only 1 left!

0

81

RedMax 521160201

CLAMP (RPLS 580724120)
(Superseded to 514346001)

$

$

Not available

82

RedMax 521176001

BOLT, M6 x 1.30
(Superseded to 514363501)

$4.99

$

In Stock, only 2 left!

0

83

RedMax 521822101

HANGER COMP.

Note: OPTIONAL. 85 85

$

$

Not available

84

RedMax 521822201

HANGER
(Superseded to 521822101)

Note: OPTIONAL

$

$

Not available

85

RedMax 521822301

Note: OPTIONAL

$

$

Not available

86

RedMax 521515301

SCREW

Note: OPTIONAL

$4.99

$

In Stock, only 2 left!

0

89

RedMax 521477601

%BOLT, M6 x 20
(Superseded to 505312401)

$3.99

$

Usually ships in 3-10 days

0

90

RedMax 510959101

TOOL SET

Note: . 91 THRU 95

$

$

Not available

91

RedMax 510960201

SOCKET

$8.49

$

Usually ships in 3-10 days

0

92

RedMax 505311901

WRENCH

$

$

Not available

93

RedMax 516144701

Wrench Tool

$4.99

$

Usually ships in 3-10 days

0

94

RedMax 521176201

SPANNER,8x10(RPLS 090100810
(Superseded to 514363701)

$4.99

$

In Stock, Qty 10

0

95

RedMax 516153801

SCREWDRIVER
(Superseded to 506689501)

$4.99

$

Usually ships in 3-10 days

0

96

RedMax 521664101

COVER BLADE
(Superseded to 515557601)

Note: OPTIONAL

$4.99

$

In Stock, only 4 left!

0

97

RedMax 510997801

STRAP ASSY

Note: OPTIONAL

$51.99

$

Usually ships in 3-10 days

0
