SGC 220 DL - RedMax Reciprocator Trimmer (SN: 918000 & Above) (1989-02) 033 - CARBURETOR COMPONENTS Parts Diagram

Reciprocator Trimmer

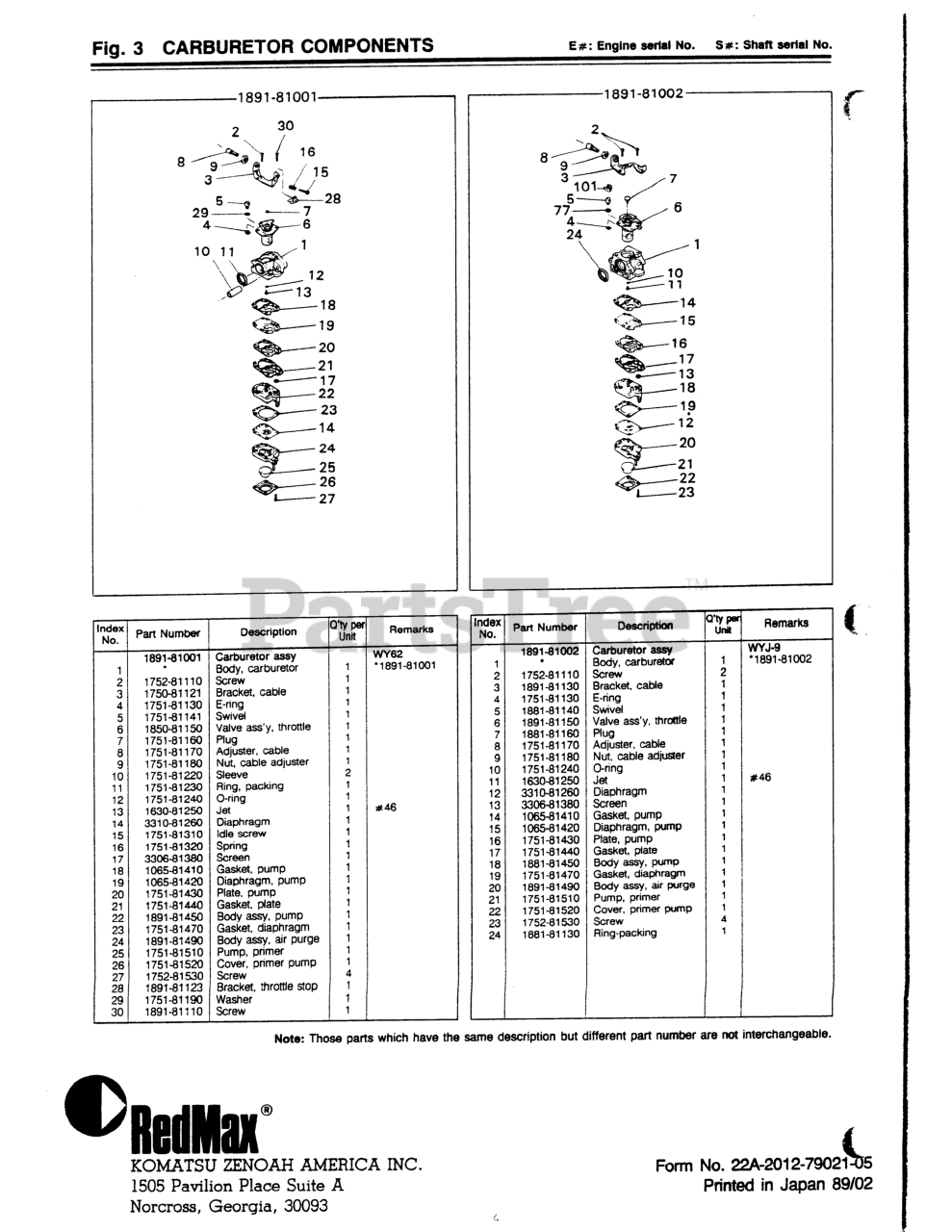

033 - CARBURETOR COMPONENTS Parts Diagram

  • Title

1-1

RedMax 189181001

1891-81004
(Superseded to 516599701)

$

$

Not available

1-2

RedMax 175281110

SCREW
(Superseded to 516528701)

$3.99

$

Usually ships in 3-10 days

0

1-3

RedMax 175081121

BRACKET

$7.68

$

Usually ships in 3-10 days

0

1-4

RedMax 175181130

RING
(Superseded to 516523601)

$3.99

$

Usually ships in 3-10 days

0

1-5

RedMax 175181141

SWIVEL (USE -06040)

$

$

Not available

1-6

RedMax 185081150

VALVE ASSY (NO L0NGER AVAIL)

$

$

Not available

1-7

RedMax 175181160

PLUG NEEDLE

$1.23

$

Usually ships in 3-10 days

0

1-8

RedMax 175181170

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

1-9

RedMax 175181180

NUT, CABLE ADJUSTER
(Superseded to 510487401)

$4.99

$

Usually ships in 3-10 days

0

1-10

RedMax 175181220

SLEEVE, MOUNT

$7.68

$

Usually ships in 3-10 days

0

1-11

RedMax 175181230

RING, PACKING (NLA)

Note: Context Note: @ÿ

$

$

Not available

1-12

RedMax 175181240

RING, O
(Superseded to 505307501)

$6.49

$

In Stock, only 1 left!

0

1-13

RedMax 163081250

JET

$5.00

$

Usually ships in 3-10 days

0

1-14

RedMax 331081260

DIAPHRAGM (USE 4810-81260)
(Superseded to 505056401)

$17.99

$

In Stock, only 2 left!

0

1-15

RedMax 175181310

SCREW, IDLE AD

$3.20

$

Usually ships in 3-10 days

0

1-16

RedMax 175181320

SPRING, IDLE A

$2.72

$

Usually ships in 3-10 days

0

1-17

RedMax 330681380

SCREEN

$1.22

$

Usually ships in 3-10 days

0

1-18

RedMax 106581410

GASKET, PUMP
(Superseded to 516160601)

$

$

Not available

1-19

RedMax 106581420

DIAPHRAGM
(Superseded to 506689801)

$6.49

$

In Stock, Qty 5

0

1-20

RedMax 175181430

PLATE, PUMP (NLA)

Note: Context Note: @ÿ

$4.07

$

Usually ships in 3-10 days

0

1-21

RedMax 175181440

GASKET, PLATE

$10.39

$

Usually ships in 3-10 days

0

1-22

RedMax 189181450

KIT ONLY

$36.11

$

Usually ships in 3-10 days

0

1-23

RedMax 175181470

KIT ONLY
(Superseded to 516537001)

$17.99

$

Usually ships in 3-10 days

0

1-24

RedMax 189181490

BODY
(Superseded to 513440201)

$

$

Not available

1-25

RedMax 175181510

PUMP, PRIMING
(Superseded to 505306701)

$9.49

$

Usually ships in 3-10 days

0

1-26

RedMax 175181520

COVER
(Superseded to 516525901)

$

$

Not available

1-27

RedMax 175281530

SCREW
(Superseded to 505416101)

$14.99

$

Usually ships in 3-10 days

0

1-28

RedMax 189181123

BRACKET (RPLS- 81122)

$7.02

$

Usually ships in 3-10 days

0

1-29

RedMax 175181190

WASHER
(Superseded to 516524201)

$3.99

$

In Stock, only 2 left!

0

1-30

RedMax 189181110

SCREW

$

$

Not available

2-1

RedMax 189181002

1891-81004
(Superseded to 516599701)

$

$

Not available

2-2

RedMax 175281110

SCREW
(Superseded to 516528701)

$3.99

$

Usually ships in 3-10 days

0

2-3

RedMax 189181130

BRACKET
(Superseded to 513440001)

$

$

Not available

2-4

RedMax 175181130

RING
(Superseded to 516523601)

$3.99

$

Usually ships in 3-10 days

0

2-5

RedMax 188181140

SWIVEL
(Superseded to 516597701)

$9.99

$

Usually ships in 3-10 days

0

2-6

RedMax 189181150

1881-81150

$

$

Not available

2-7

RedMax 188181160

PLUG

$2.12

$

Usually ships in 3-10 days

0

2-8

RedMax 175181170

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

2-9

RedMax 175181180

NUT, CABLE ADJUSTER
(Superseded to 510487401)

$4.99

$

Usually ships in 3-10 days

0

2-10

RedMax 175181240

RING, O
(Superseded to 505307501)

$6.49

$

In Stock, only 1 left!

0

2-11

RedMax 163081250

JET

$5.00

$

Usually ships in 3-10 days

0

2-12

RedMax 331081280

COVER

$6.37

$

Usually ships in 3-10 days

0

2-13

RedMax 330681380

SCREEN

$1.22

$

Usually ships in 3-10 days

0

2-14

RedMax 106581410

GASKET, PUMP
(Superseded to 516160601)

$

$

Not available

2-15

RedMax 106581420

DIAPHRAGM
(Superseded to 506689801)

$6.49

$

In Stock, Qty 5

0

2-16

RedMax 175181430

PLATE, PUMP (NLA)

Note: Context Note: @ÿ

$4.07

$

Usually ships in 3-10 days

0

2-17

RedMax 175181440

GASKET, PLATE

$10.39

$

Usually ships in 3-10 days

0

2-18

RedMax 188181450

KIT ONLY

$

$

Not available

2-19

RedMax 175181470

KIT ONLY
(Superseded to 516537001)

$17.99

$

Usually ships in 3-10 days

0

2-20

RedMax 189181490

BODY
(Superseded to 513440201)

$

$

Not available

2-21

RedMax 175181510

PUMP, PRIMING
(Superseded to 505306701)

$9.49

$

Usually ships in 3-10 days

0

2-22

RedMax 175181520

COVER
(Superseded to 516525901)

$

$

Not available

2-23

RedMax 175281530

SCREW
(Superseded to 505416101)

$14.99

$

Usually ships in 3-10 days

0

2-24

RedMax 188181130

RING, PACKING
(Superseded to 505308401)

$4.99

$

Usually ships in 3-10 days

0
