SG390HN - Exmark Stump Grinder, Honda (SN: 312000000 - 312999999) (2012) Wheel and Brake Assembly Parts Diagram

Stump Grinder, Honda

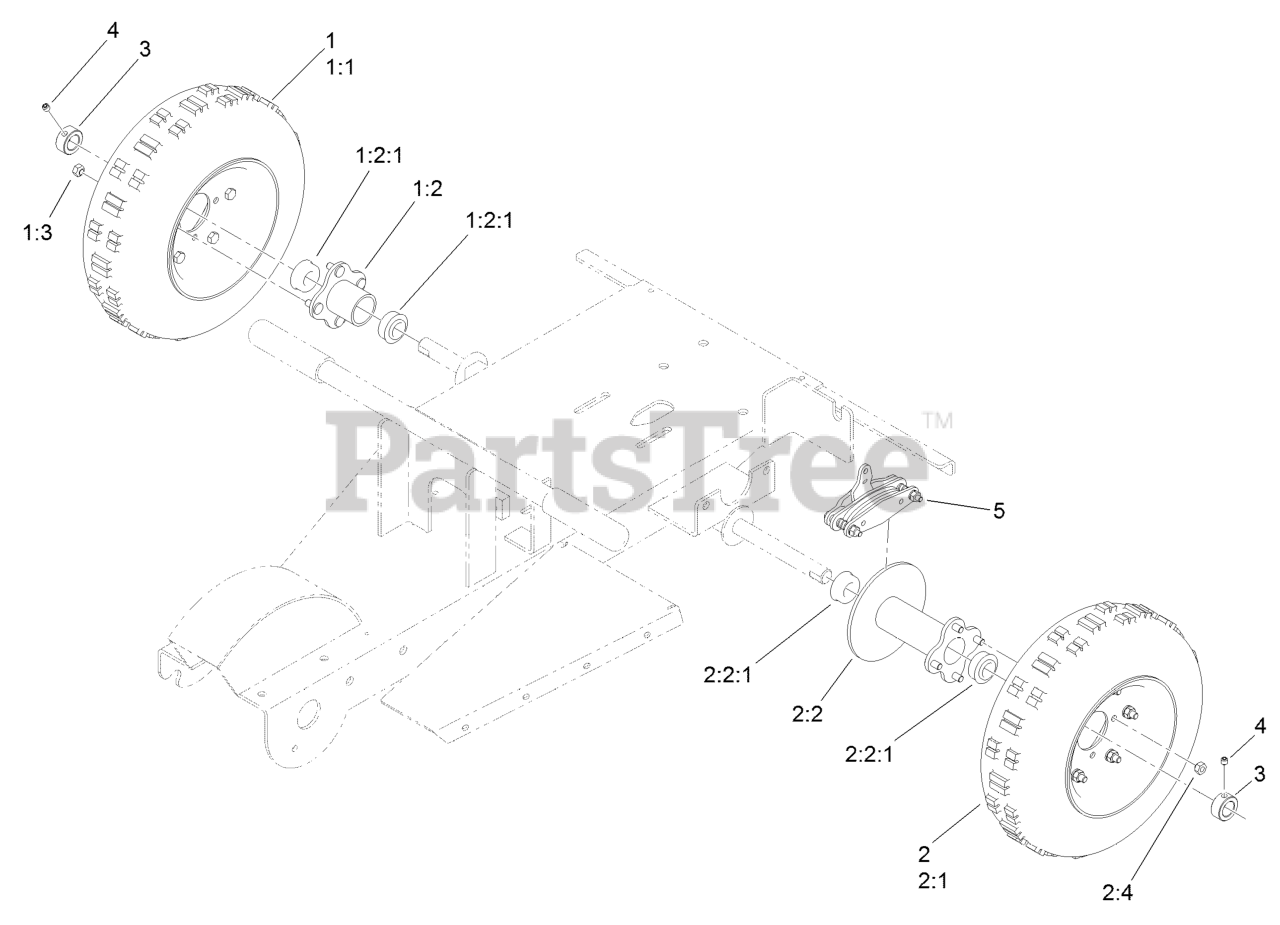

Wheel and Brake Assembly Parts Diagram

  • Title

1

Exmark 120-1216

TIRE ASM (W/ HUB)

$147.99

$

Usually ships in 3-6 days

0

1:1

Exmark 120-1287

Tire Asm

$

$

Not available

1:2

Exmark 120-1295

HUB

$40.99

$

Usually ships in 3-6 days

0

1:2:1

Exmark 120-1296

BEARING-WHEEL

$5.99

$

Usually ships in 3-6 days

0

1:3

Exmark 120-1304

NUT-WHEEL

$1.99

$

Usually ships in 3-6 days

0

2

Exmark 120-1214

TIRE ASM (W/ HUB AND BRAK

$172.99

$

Usually ships in 3-6 days

0

2:1

Exmark 120-1287

Tire Asm

$

$

Not available

2:2

Exmark 120-1297

Hub

$88.99

$

Usually ships in 3-6 days

0

2:2:1

Exmark 120-1296

BEARING-WHEEL

$5.99

$

Usually ships in 3-6 days

0

2:4

Exmark 120-1304

NUT-WHEEL

$1.99

$

Usually ships in 3-6 days

0

3

Exmark 120-1294

COLLAR-SET

$17.99

$

Usually ships in 3-6 days

0

4

Exmark 3246-2

SCREW-SET, HSH

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on threads.

$0.99

$

Usually ships in 3-6 days

0

5

Exmark 120-1773

BRAKE-CALIPER

$143.99

$

In Stock, only 2 left!

0
