SG390HN - Exmark Stump Grinder, Honda (SN: 312000000 - 312999999) (2012) Frame and Engine Assembly Parts Diagram

Stump Grinder, Honda

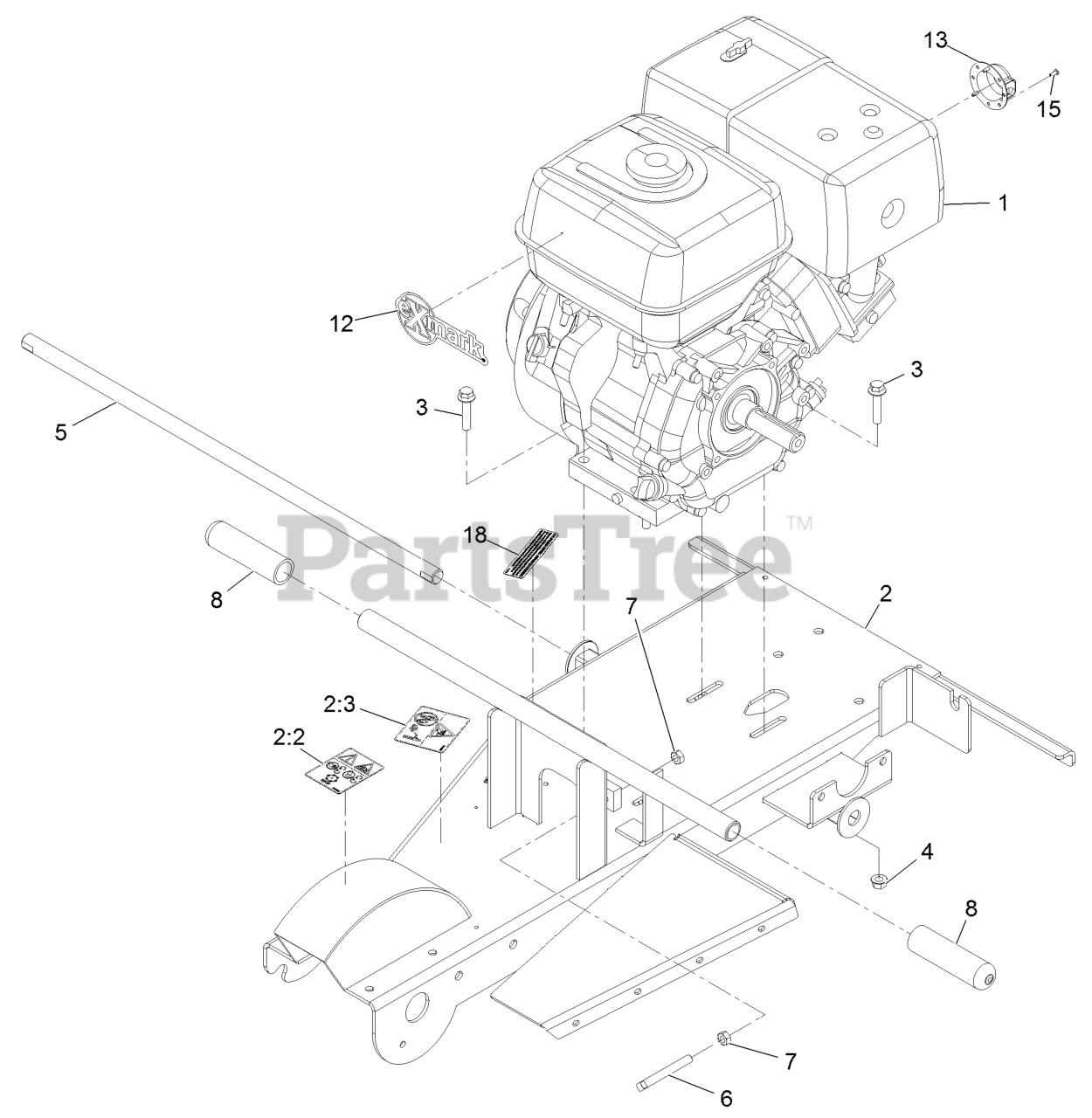

Frame and Engine Assembly Parts Diagram

  • Title

1

Engine-Honda, Gx390ut2 Qxc9

Note: (Not Used) Not serviced separately, Obtain parts from www.honda-engines.com

$

$

Not available

2

Exmark 121-4390

Frame Asm,

$

$

Not available

2:2

Exmark 119-4690

DECAL-DANGER

$7.49

$

Usually ships in 3-6 days

0

2:3

Exmark 119-4693

DECAL-CAUTION

$4.99

$

Usually ships in 3-6 days

0

3

Exmark 3234-19

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

4

Exmark 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

5

Exmark 120-1252

BAR-AXLE

$52.99

$

Usually ships in 3-6 days

0

6

Exmark 119-4729

SCREW-SET, SQH

$4.49

$

Usually ships in 3-6 days

0

7

Exmark 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

8

Exmark 120-1333

GRIP-HANDLE

$9.49

$

In Stock, Qty 6

0

12

Exmark 103-2883

DECAL

$10.99

$

In Stock, Qty 9

0

13

Exmark 120-1886

DEFLECTOR-EXHAUST, HONDA

$67.99

$

Usually ships in 3-6 days

0

15

Exmark 32144-74

SCREW-TAP

$2.99

$

Usually ships in 3-6 days

0

18

Exmark 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0
