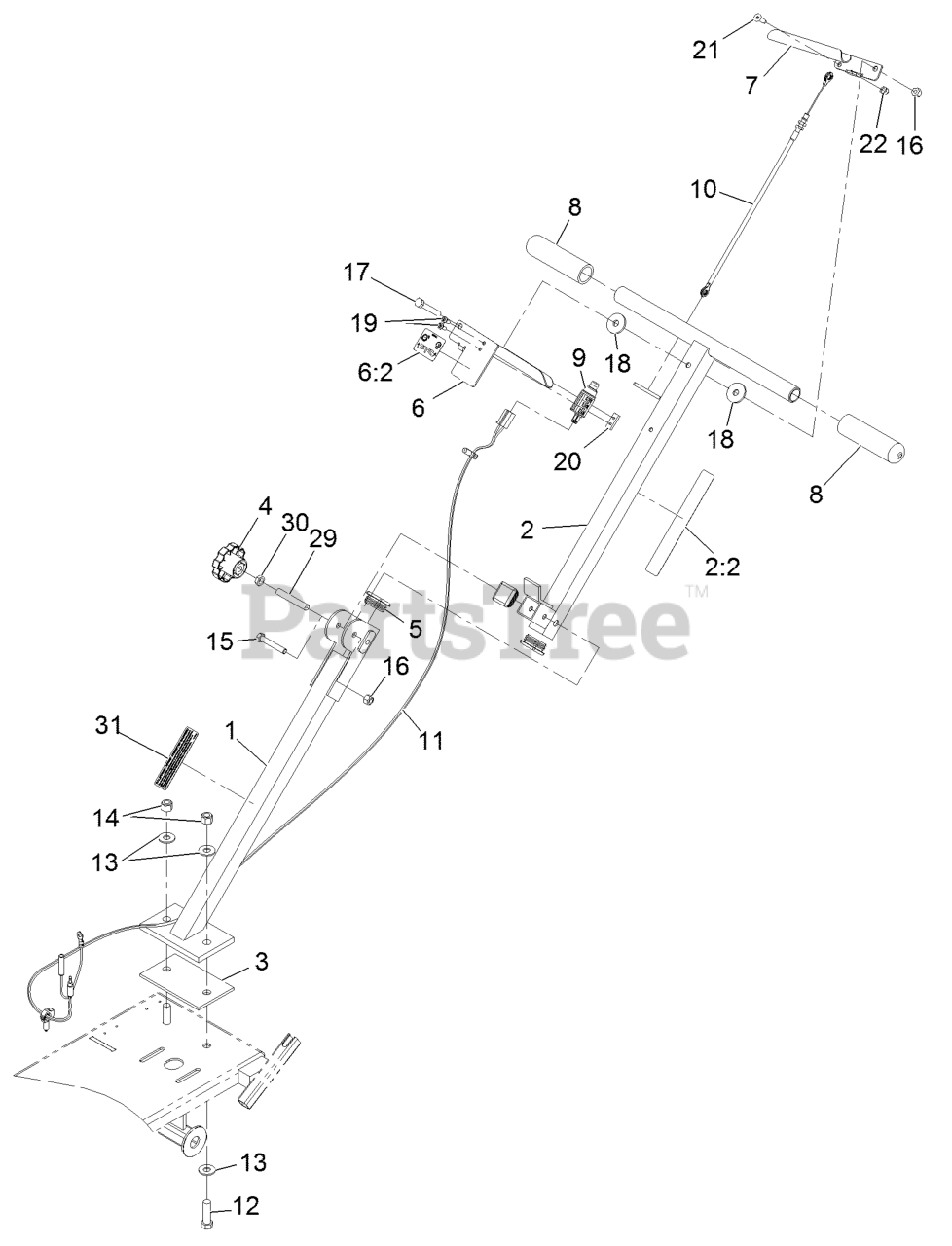

SG200HN - Exmark Stump Grinder, Honda (SN: 312000000 - 312999999) (2012) Handle Assembly Parts Diagram

Stump Grinder, Honda

Handle Assembly Parts Diagram

  • Title

1

Exmark 120-1323-01

HANDLE-LOWER

$104.99

$

Usually ships in 3-6 days

0

2

Exmark 121-4394

HANDLE ASM

$104.99

$

Usually ships in 3-6 days

0

2:2

Exmark 119-4691

DECAL-CAUTION

$6.99

$

Usually ships in 3-6 days

0

3

Exmark 120-1324

GASKET-HANDLE

$11.99

$

Usually ships in 3-6 days

0

4

Exmark 109-1092

KNOB

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$7.99

$

Usually ships in 3-6 days

0

5

Exmark 120-1302

PLUG-TUBE

$3.49

$

Usually ships in 3-6 days

0

6

Exmark 121-4410

Plunger Handle Asm,

$

$

Not available

6:2

Exmark 119-4722

DECAL-ENGAGE

$6.99

$

Usually ships in 3-6 days

0

7

Exmark 120-1359-03

HANDLE-THROTTLE

$39.99

$

Usually ships in 3-6 days

0

8

Exmark 120-1333

GRIP-HANDLE

$9.49

$

In Stock, Qty 6

0

9

Exmark 120-1292

SWITCH-PLUNGER, NC (W/COV

$41.99

$

In Stock, only 1 left!

0

10

Exmark 120-1375

CABLE-THROTTLE

$46.99

$

Usually ships in 3-6 days

0

11

Exmark 120-1369

HARNESS-WIRE

$46.99

$

Usually ships in 3-6 days

0

12

Exmark 324-6

1-800811
(Superseded to 1-800811)

$11.99

$

In Stock, only 3 left!

0

13

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

14

Exmark 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

16

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

17

Exmark 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

18

Exmark 107675

WASHER

$3.49

$

In Stock, Qty 18

0

19

Exmark 1-803071

SCREW

$1.49

$

In Stock, Qty 13

0

20

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

21

Exmark 116-0606

SCREW-TORX

$1.49

$

In Stock, Qty 6

0

22

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

29

Exmark 120-0909

SCREW-HSH

$5.99

$

Usually ships in 3-6 days

0

30

Exmark 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

31

Exmark 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0
