SG200HN - Exmark Stump Grinder, Honda (SN: 312000000 - 312999999) (2012) Engine and Frame Assembly Parts Diagram

Stump Grinder, Honda

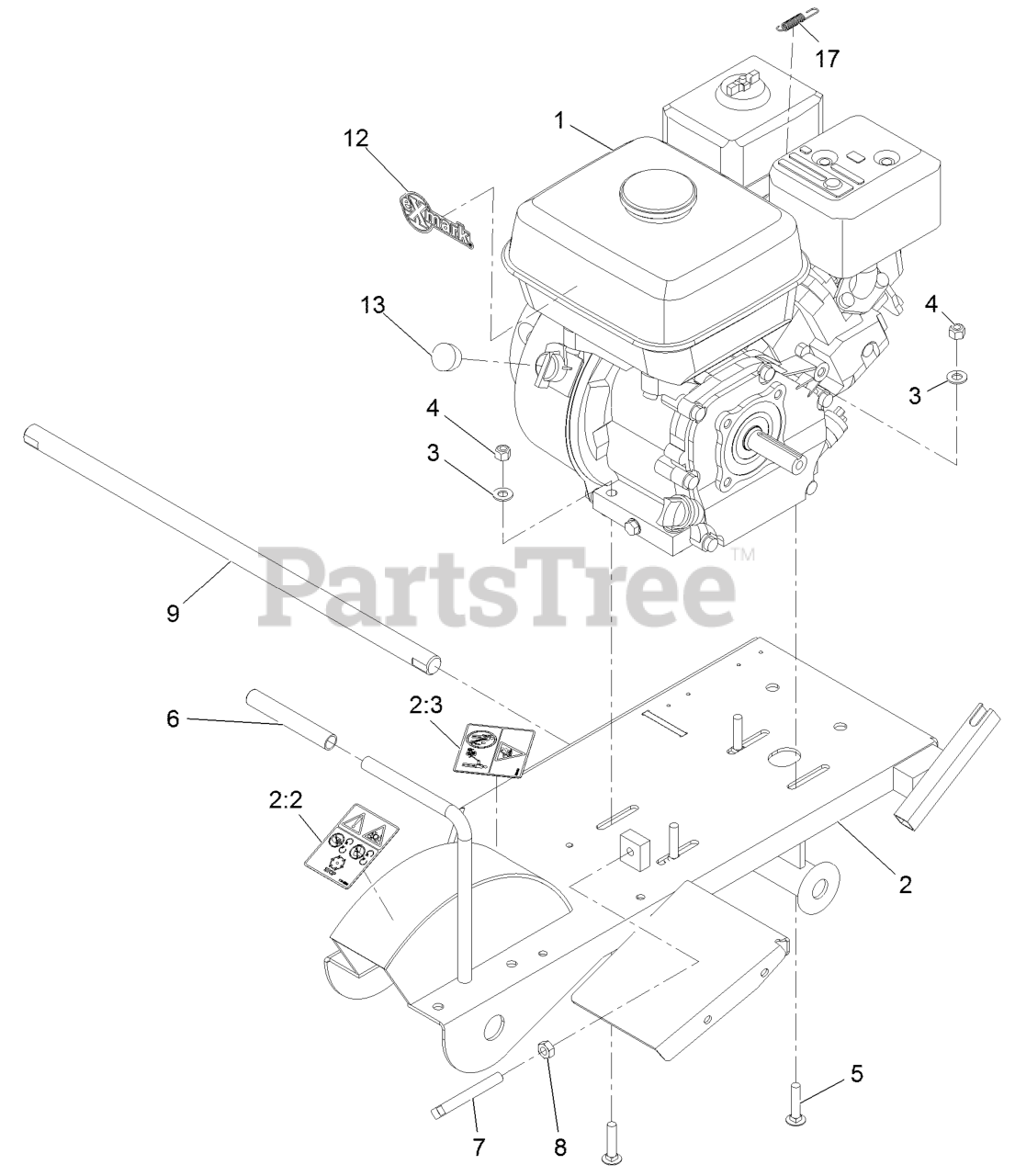

Engine and Frame Assembly Parts Diagram

  • Title

1

Engine-Honda, Gx200ut Qxc9

Note: (Not Used) Not serviced separately, Obtain parts from www.honda-engines.com

$

$

Not available

2

Exmark 121-4393

Frame Asm,

$

$

Not available

2:2

Exmark 119-4690

DECAL-DANGER

$7.49

$

Usually ships in 3-6 days

0

2:3

Exmark 119-4693

DECAL-CAUTION

$4.99

$

Usually ships in 3-6 days

0

3

Exmark 3256-45

WASHER-FLAT

$0.99

$

In Stock, only 3 left!

0

4

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Exmark 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 12

0

6

Exmark 112-2605

GRIP-RUBBER

$6.99

$

Usually ships in 3-6 days

0

7

Exmark 119-4729

SCREW-SET, SQH

$4.49

$

Usually ships in 3-6 days

0

8

Exmark 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

9

Exmark 120-1795

BAR-AXLE, WHEEL

$46.99

$

Usually ships in 3-6 days

0

12

Exmark 103-8845

DECAL,EXMARK

$9.49

$

Usually ships in 3-6 days

0

13

Exmark 120-1887

PLUG-ENGINE

$17.99

$

Usually ships in 3-6 days

0

17

Exmark 119-4609

SPRING-EXTENSION

$11.99

$

Usually ships in 3-6 days

0
