SG 8000 (80196) - Snapper Shredder Grinder Chipper, 8hp Shredder Section Parts Diagram

Shredder Grinder Chipper, 8hp

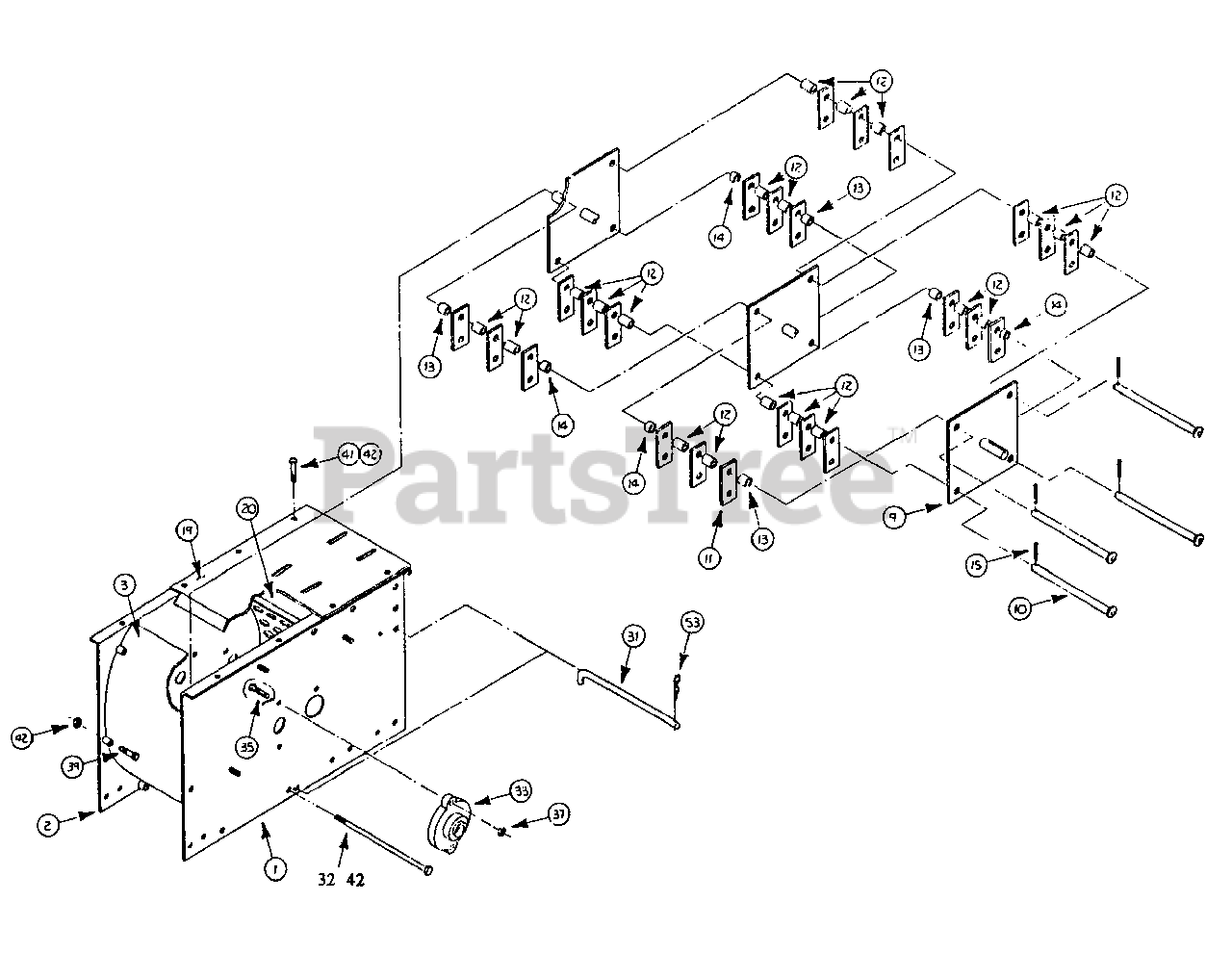

Shredder Section Parts Diagram

  • Title
1

Snapper 40753

Right Side Plate

$

$

Currently unavailable

2

Snapper 40754

Left Side Plate

$

$

Currently unavailable

3

Snapper 40755

Scroll

$

$

Currently unavailable

9

Snapper 40756

Rotor Weldment

$

$

Currently unavailable

10

Snapper 40797

Hammer Rod

$

$

Currently unavailable

11

Snapper 40802

Hammer

$

$

Currently unavailable

12

Snapper 40803

Spacer 7/8"

$

$

Currently unavailable

13

Snapper 40804

Spacer 5/8"

$

$

Currently unavailable

14

Snapper 40805

Spacer 5/16"

$

$

Currently unavailable

15

Snapper 40806

Groove Pin

$

$

Currently unavailable

19

Snapper 40905

Top Plate

$

$

Currently unavailable

20

Snapper 40758

Screen (1" Standard)

$

$

Currently unavailable

31

Snapper 40759

Screen and Baffle Rod

$

$

Currently unavailable

32

Snapper 40760

Tie Red

$

$

Currently unavailable

33

Snapper 40761

Bearing Right Side

$

$

Currently unavailable

35

Snapper 7090138

3/8-16 x 1 Hex Hd. Cap Screw GR 5 Blk.
(Superseded to 7090138YP)

Note: Was 40855

$3.99

$

Usually ships in 2-12 days

0

37

Snapper 7091299

3/8-16 Grip-Co Lock Nut
(Superseded to 703117)

Note: Was 90490

$3.49

$

In Stock, Qty 20+

0

39

Snapper 7090627

5/16-18 x 1-1/4 Hex Hd. Cap Screw GR5

$

$

Not available

41

Snapper 7076934

5/16-18 x 3/4 Hex Hd. Cap Screw GR 5
(Superseded to 7076934YP)

$3.49

$

Usually ships in 2-12 days

0

42

Snapper 7090194

5/16-18 Grip-Co Lock Nut

$

$

Currently unavailable

53

Snapper 7011773

3/32 Hair Cotter Pin

$

$

Currently unavailable
