SG 8000 (80196) - Snapper Shredder Grinder Chipper, 8hp Chipper Grinder Section Parts Diagram

Shredder Grinder Chipper, 8hp

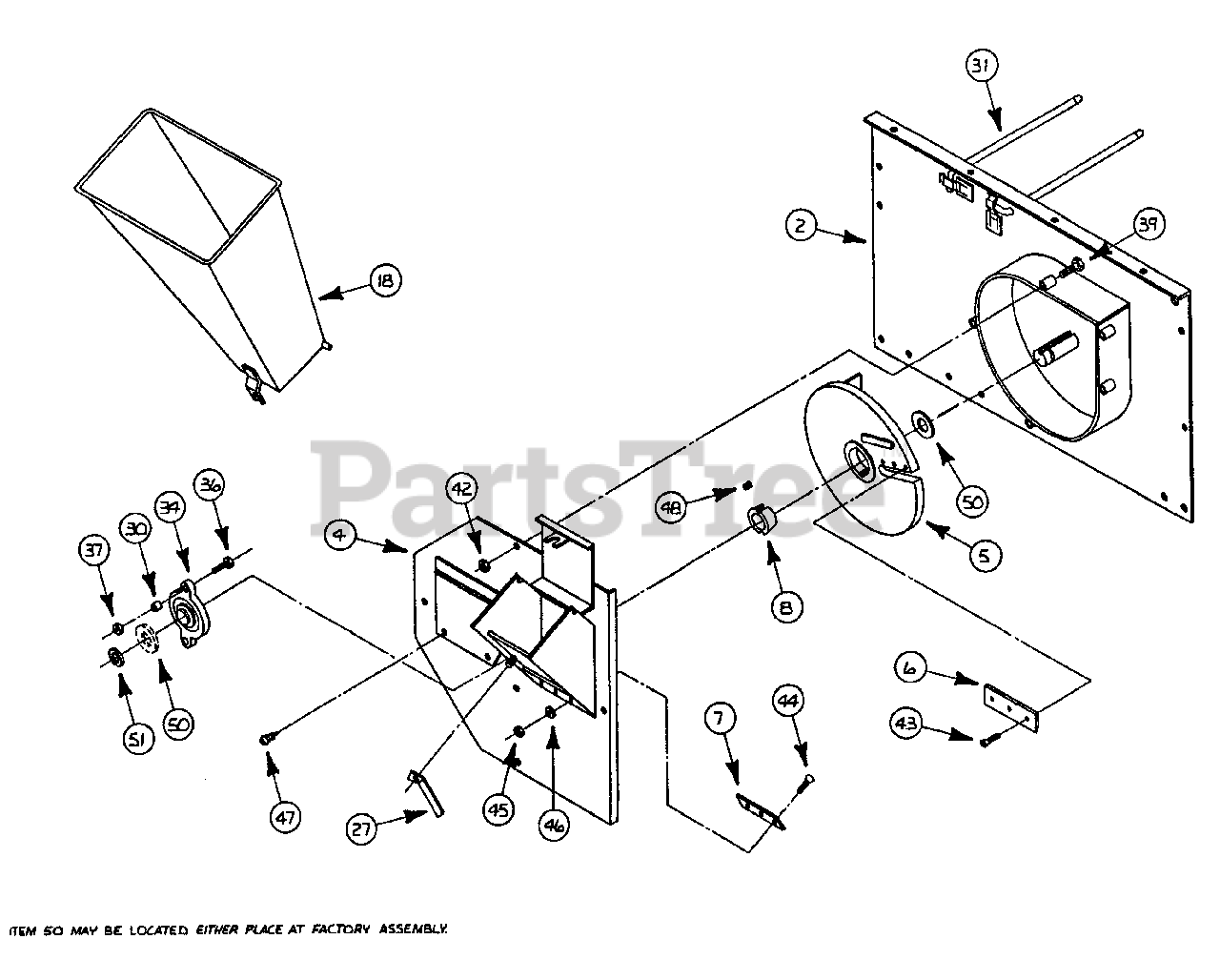

Chipper Grinder Section Parts Diagram

  • Title

2

Snapper 40754

Left Side Plate

$

$

Currently unavailable

4

Snapper 40762

Chipper Side Plate

$

$

Currently unavailable

5

Snapper 40763

Chipper Disc

$

$

Currently unavailable

6

Snapper 40807

Knife

Note: Was 40807

$

$

Currently unavailable

7

Snapper 40764

Wear Plate

$

$

Currently unavailable

8

Snapper 40765

Bushing 1-3/16

$

$

Currently unavailable

18

Snapper 40767

Chipper Hopper

$

$

Currently unavailable

27

Snapper 40768

Hopper Locking Handle

$

$

Currently unavailable

30

Snapper 40769

Bushing

$

$

Currently unavailable

31

Snapper 40778

Screen and Baffle Rod

$

$

Currently unavailable

34

Snapper 40771

Bearing Left Side

$

$

Currently unavailable

36

Snapper 7090138

3/8-16 x 1 Hex Hd. Cap Screw GR 5 Blk.
(Superseded to 7090138YP)

Note: Was 40855

$3.99

$

Usually ships in 2-12 days

0

37

Snapper 7091299

3/8-16 Grip-Co Lock Nut
(Superseded to 703117)

Note: Was 90490

$3.49

$

In Stock, Qty 20+

0

39

Snapper 7090627

5/16-18 x 1-1/4 Hex Hd. Cap Screw GR 5

$

$

Not available

42

Snapper 7090194

5/16-18 Grip-Co Lock Nut

$

$

Currently unavailable

43

Snapper 40867

5/16-18 x 3/4 Flat Hd. Socket Cap Screw Blk.

$

$

Currently unavailable

44

Snapper 40856

1/4-20 x 1 Flat Hd. Socket Cap Screw Blk.

$

$

Currently unavailable

45

Snapper 7091603

1/4-20 Flex Lock Nut
(Superseded to 703232)

Note: Was 40853

$4.49

$

In Stock, Qty 20+

0

46

Snapper 7091098

1/4 Flatwasher
(Superseded to 703302)

Note: Was 90598

$4.49

$

In Stock, Qty 20+

0

47

Snapper 7090812

6-32 x 3/8 Sheet Metal Screw

Note: Was 40857

$

$

Not available

48

Snapper 40858

3/8-16 x 5/8 Set Screw

$

$

Currently unavailable

50

Snapper 40859

1-3/16 Flatwasher

$

$

Currently unavailable

51

Snapper 40860

Retaining Ring

$

$

Currently unavailable
