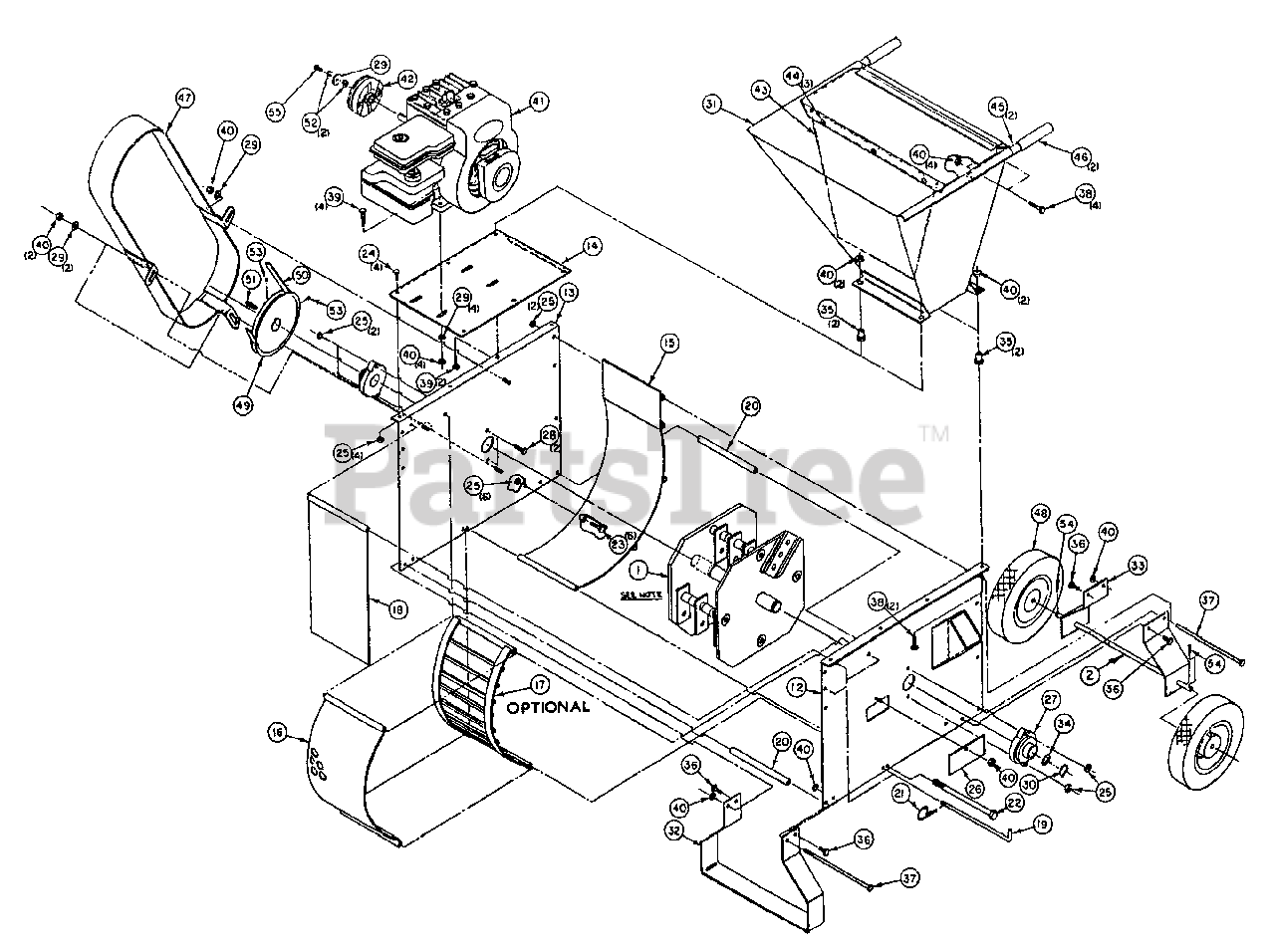

SG 5000 (80195) - Snapper Shredder Grinder Chipper, 5hp General Assembly Parts Diagram

Shredder Grinder Chipper, 5hp

General Assembly Parts Diagram

  • Title

1

Snapper 40811

Rotor Weldment

$

$

Currently unavailable

2

Snapper 40911

Axle

$

$

Currently unavailable

12

Snapper 40812

Chipper Side Plate

$

$

Currently unavailable

13

Snapper 40813

Drive Side Plate

$

$

Currently unavailable

14

Snapper 40814

Top Plate

$

$

Currently unavailable

15

Snapper 40815

Scroll

$

$

Currently unavailable

16

Snapper 40816

Screen 1"

$

$

Currently unavailable

17

Snapper 40817

Bar Screen

Note: (Optional)

$

$

Currently unavailable

18

Snapper 40818

Baffle Plate

$

$

Currently unavailable

19

Snapper 40819

Screen & Baffle Rod

$

$

Currently unavailable

20

Snapper 40820

Pipe Spacer

$

$

Currently unavailable

21

Snapper 7011773

Hair Cotter - 3/32"

$

$

Currently unavailable

22

Snapper 40854

5/16-18 x 8 Hex Hd. Cap Screw Blk.

$

$

Currently unavailable

23

Snapper 7090627

5/16-18 x 1-1/4 Hex Hd. Cap Screw

$

$

Not available

24

Snapper 7076934

5/16-1B x 3/4 Hex Hd. Cap Screw
(Superseded to 7076934YP)

$3.49

$

Usually ships in 2-12 days

0

25

Snapper 7090194

5/16-18 Grip-Co Lock Nut

$

$

Currently unavailable

26

Snapper 40809

Cover Plate

$

$

Currently unavailable

27

Snapper 40821

Bearing

$

$

Currently unavailable

28

Snapper 7027168

5/16-18 x 1 Hex Hd. Cap Screw
(Superseded to 703585)

Note: Was 90636

$4.99

$

Usually ships in 2-12 days

0

29

Snapper 7090692

5/16 Flatwasher
(Superseded to 7090692YP)

$3.49

$

Usually ships in 2-12 days

0

30

Snapper 40651

1" Retaining Ring

$

$

Currently unavailable

31

Snapper 40822

Hopper

$

$

Currently unavailable

32

Snapper 40823

Front Foot

$

$

Currently unavailable

33

Snapper 40909

Axle Bracket

$

$

Currently unavailable

34

Snapper 40825

1 1/2" O.D. x 1 1/64" I.D. x .050 Thk. Shim

Note: (A variety of shims with different thicknesses are available.)

$

$

Currently unavailable

35

Snapper 40799

Vibration Dampener

$

$

Currently unavailable

36

Snapper 7076934

5/16-18 x 3/4 Hex Hd. Cap Screw Pltd.
(Superseded to 7076934YP)

$3.49

$

Usually ships in 2-12 days

0

37

Snapper 40854

5/16-18 x 8 Hex Hd. Cap Screw Pltd.

$

$

Currently unavailable

38

Snapper 7090627

5/16-18 x 1-1/4 Hex Hd. Cap Screw Pltd.

$

$

Not available

39

Snapper 7076935

5/16-18 x 1-1/2 Hex Hd. Cap Screw Pltd.
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

40

Snapper 7090194

5/16-18 Grip-Co Lock Nut Pltd.

$

$

Currently unavailable

41

* ENGINE, 5 HP

$

$

Not available

42

Snapper 40887

Clutch

$

$

Currently unavailable

43

Snapper 40828

Hopper Flex Guard

$

$

Currently unavailable

44

Snapper 40801

Push Type Tie Button

$

$

Currently unavailable

45

Snapper 40829

Handle

$

$

Currently unavailable

46

Snapper 40800

Handle Grip

$

$

Currently unavailable

47

Snapper 40798

Belt Guard

$

$

Currently unavailable

48

Snapper 40830

8 x 1.75 Wheel

$

$

Currently unavailable

49

Snapper 40831

Sheave A550 x 1"

Note: (Includes item #53)

$

$

Currently unavailable

50

Snapper 40832

V-Belt 4L-410

$

$

Currently unavailable

51

Snapper 7013250

1/4" Sq. x 1" LG Shaft Key
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

52

Snapper 7090187

5/16 Split Lockwasher
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

53

Snapper 7090201

5/16-18 x 5/16 Set Screw
(Superseded to 7090201SM)

$

$

Not available

54

Snapper 7091809

1/8 x 1-1/4 LG Cotter Pin
(Superseded to 7091809YP)

Note: Was 90042

$4.49

$

Usually ships in 2-12 days

0

55

Snapper 7090233

5/16-24 x 3/4" Hex Hd. Cap Screw
(Superseded to 703336)

$4.49

$

In Stock, Qty 5

0
