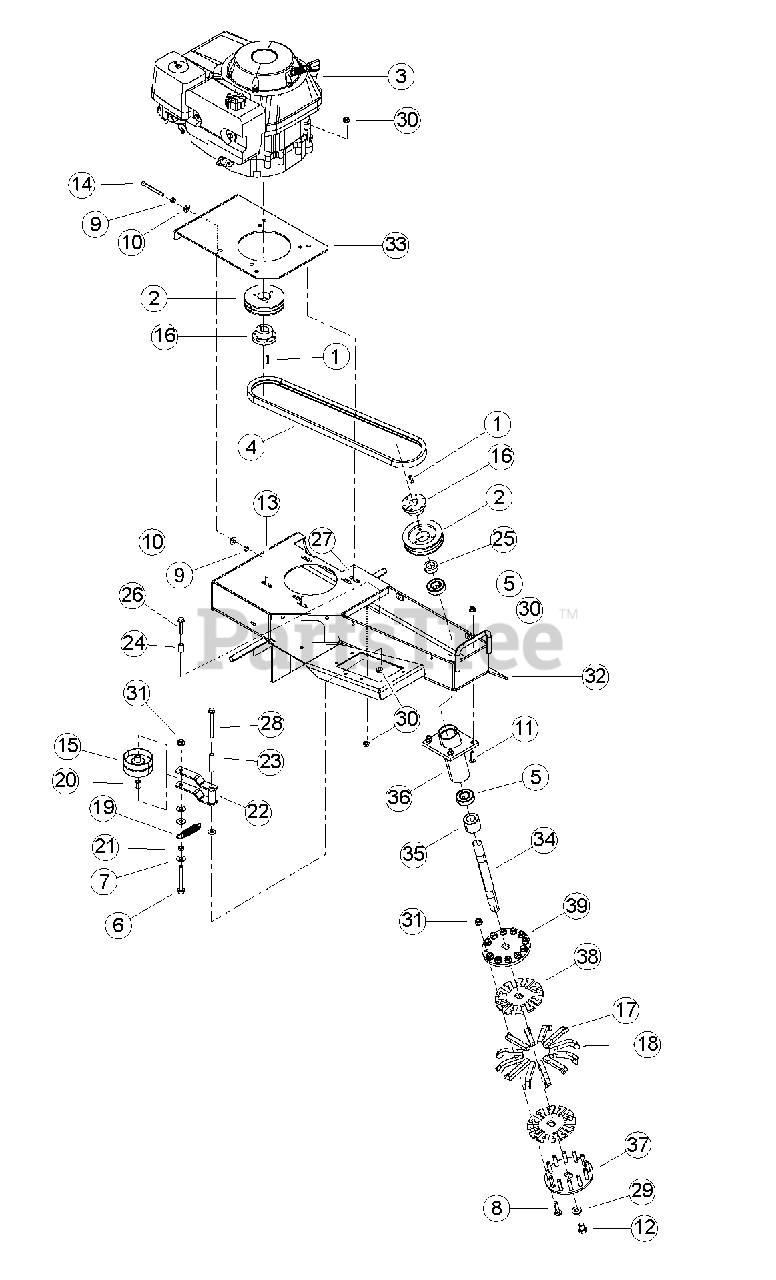

SG 340 - Bear Cat Stump Grinder, 340cc Honda (SN: D00001 & Above) Drive & Cutter (SN: G03068 - CURRENT) Parts Diagram

Stump Grinder, 340cc Honda

Drive & Cutter (SN: G03068 - CURRENT) Parts Diagram

  • Title
1

0122-0007-00

KEY, 1/4 SQ X 1-1/4

$

$

Not available

2

Bear Cat 12363

SHEAVE, 3V4.5-2 GROOVE SH

$93.99

$

Usually ships in 3-7 days

0

3

ENGINE, 11 HP HONDA GXV

$

$

Not available

4

Bear Cat 12365

BELT, 3VX530 DOUBLE BANDED

$81.99

$

In Stock, only 1 left!

0

5

Bear Cat 33179-00

BEARING, 1 INCH BALL

$48.99

$

Usually ships in 3-7 days

0

6

Bear Cat 15009

BOLT, 3/8 X 3 GR5 HEX CAPSCREW ZP

$

$

Not available

7

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

8

Bear Cat 15059

BOLT, 3/8 X 1 3/4 GR5 CARR BLT ZP

$

$

Not available

9

15153

NUT, 5/16 HEX NC - ZP

$

$

Not available

10

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

11

Bear Cat 15398

BOLT, 5/16 X 1-1/4 GR5 ZP CRG

$

$

Not available

12

Bear Cat 15413

BOLT, 1/2-20 X 3/4GR5 HHCS NF ZP

$

$

Not available

13

Bear Cat 15496

BOLT, 5/16 X 1-1/4 HCS NF GR5 ZP

$

$

Not available

14

Bear Cat 15588

SCREW, 5/16 X 3 SQ HD SET

$9.49

$

Usually ships in 3-7 days

0

15

Bear Cat 16319

PULLEY, 3-1/4 FLAT IDLER

$73.99

$

Usually ships in 3-7 days

0

16

Bear Cat 16517

BUSHING, SH 1 INCH

$

$

Not available

17

Bear Cat 16687

STUMP CUTTER TEETH, STRAIGHT

$63.99

$

Usually ships in 3-7 days

0

18

Bear Cat 16688

STUMP CUTTER TEETH, R.H.

$63.99

$

Usually ships in 3-7 days

0

19

Bear Cat 17692

SPRING, 3/4OD EXTENSION

$12.99

$

Usually ships in 3-7 days

0

20

Bear Cat 62531

3/4 LONG IDLER SPACER TUBE

$7.99

$

Usually ships in 3-7 days

0

21

Bear Cat 69239

SPACER IDLER PIVOT

$4.99

$

Usually ships in 3-7 days

0

22

Bear Cat 70287

WELDMENT, 2 BELT IDLER

$157.99

$

Usually ships in 3-7 days

0

23

Bear Cat 70357

PIVOT TUBE

$21.99

$

Usually ships in 3-7 days

0

24

Bear Cat 70495

SPACER, .54 X .88

$12.99

$

Usually ships in 3-7 days

0

25

Bear Cat 72819

SPACER, 1-1/2 X 1/2

$31.99

$

Usually ships in 3-7 days

0

26

Bear Cat 15127-00

BOLT, 5/16 X 1-3/4 FLANGE NC

$3.99

$

Usually ships in 3-7 days

0

27

Bear Cat 15135-00

BOLT, 5/16 X 2-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

28

15148-00

BOLT, 5/16 X 3-1/2 SERR FLANGE NC

$

$

Not available

29

Bear Cat 15762-00

WASHER, 1/2 HI-STRENGTH SAE ZP

$

$

Not available

30

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

31

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

32

Bear Cat 72798-35

WELDMENT, STUMPGRINDER FRAME

$1112.99

$

Usually ships in 3-7 days

0

33

Bear Cat 72802-35

PLATE, ENGINE SLIDE

$122.99

$

Usually ships in 3-7 days

0

34

Bear Cat 71958-00

SPINDLE, SG 12 BLADE

$86.99

$

Usually ships in 3-7 days

0

35

Bear Cat 76254-00

TUBE, SPACER 1-3/4 X 1.520

$48.99

$

Usually ships in 3-7 days

0

36

Bear Cat 76257-12

WELDMENT, SPINDLE HUB

$183.99

$

Usually ships in 3-7 days

0

37

Bear Cat 76898-12

PLATE, COVER STUMPGRINDER HEAD

$46.99

$

Usually ships in 3-7 days

0

38

Bear Cat 76899-00

PLATE, SPACER STUMPGRINDER HEAD
(Superseded to 76899-12)

$45.99

$

Usually ships in 3-7 days

0

39

Bear Cat 76900-12

PLATE, DISK STUMPGRINDER HEAD

$67.99

$

Usually ships in 3-7 days

0
