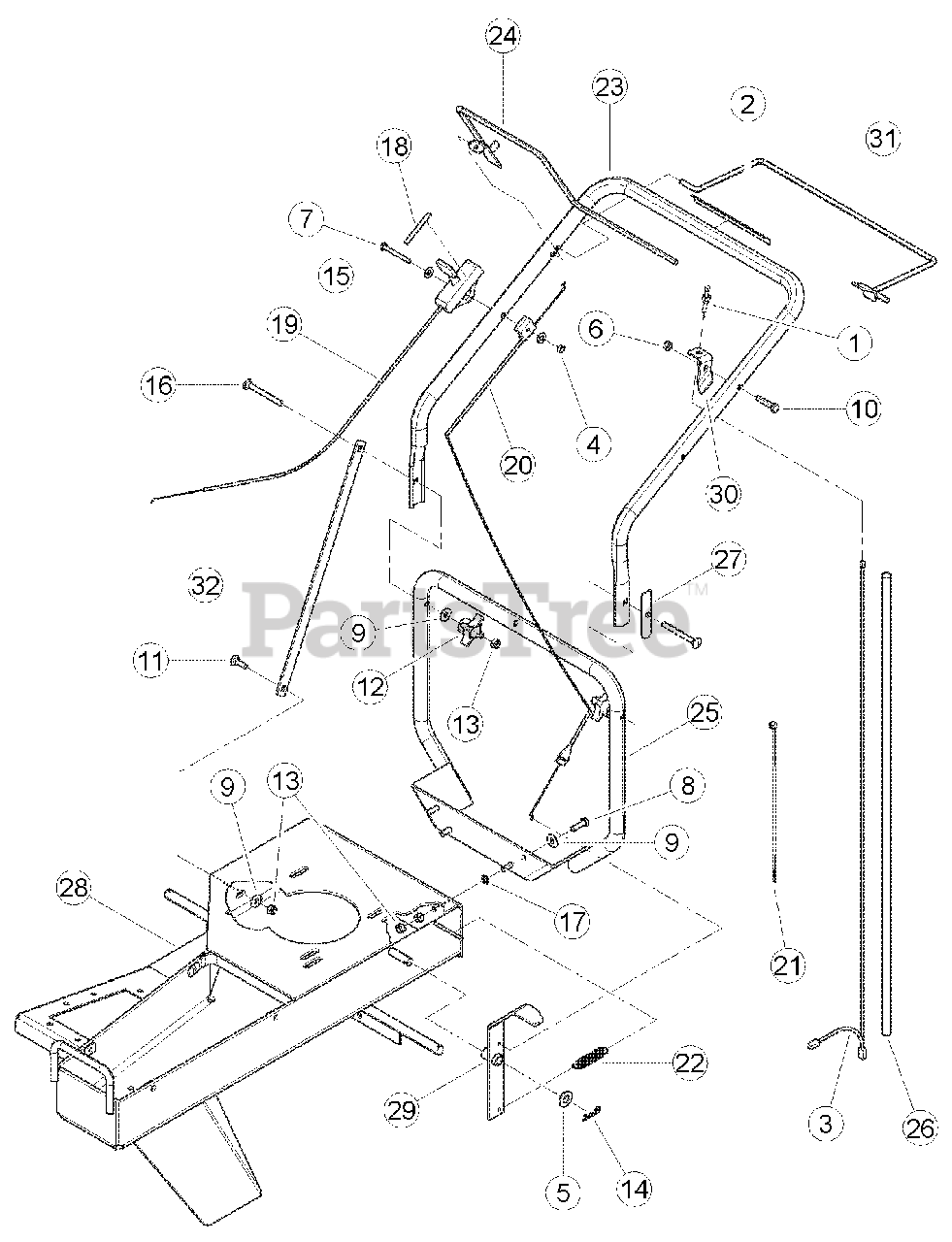

SG 340 - Bear Cat Stump Grinder, 340cc Honda (SN: A08032 - A08039) Handlebar Parts Diagram

Stump Grinder, 340cc Honda

Handlebar Parts Diagram

  • Title
1

Bear Cat 12014

SWITCH, ENGINE KILL
(Superseded to 78093-00)

$114.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12017

DECAL, STUMPGRINDER CONTROL

$16.99

$

Usually ships in 3-7 days

0

3

Bear Cat 14947-00

WIRE ASSY, ENGINE KILL

$45.99

$

Usually ships in 3-7 days

0

4

15087

NUT, 1/4 CENTERLOCK NC ZP

$

$

Not available

5

Bear Cat 15097

WASHER, 1/2 SAE FLAT ZP

$

$

Not available

6

15178

NUT, 5/16 CENTERLOCK NC ZP

$

$

Not available

7

Bear Cat 15197

BOLT, 1/4 X 2-1/4 HCS GR5 ZP

$

$

Not available

8

Bear Cat 15219

BOLT, 5/16 X 1 HHCS GR5 NC ZP

$

$

Not available

9

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

10

15282

BOLT, 5/16 X 1-1/2 HEX HD GR5 ZP

$

$

Not available

11

Bear Cat 15301

BOLT, 5/16 X 1 CRG GR5 ZP

$

$

Not available

12

Bear Cat 15321

KNOB, SPOUT 5/16-18

$3.49

$

Usually ships in 3-7 days

0

13

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

14

Bear Cat 15368

HAIRPIN CLIP ZP #203

$

$

Not available

15

15416

WASHER, 5/16 SAE FLAT ZP

$

$

Not available

16

Bear Cat 15438

BOLT, 5/16 X 3 CRG GR5 NC ZP

$1.99

$

Usually ships in 3-7 days

0

17

Bear Cat 15712-00

WASHER, 5/16 EXTERNAL TOOTH ZP

$0.99

$

Usually ships in 3-7 days

0

18

Bear Cat 16238

DECAL, THROTTLE

$5.49

$

Usually ships in 3-7 days

0

19

Bear Cat 16239

THROTTLE CONTROL

$44.99

$

Usually ships in 3-7 days

0

20

Bear Cat 16694

CABLE, STUMP GRINDER

$60.99

$

Usually ships in 3-7 days

0

21

17320

STRAP, 11 IN. BLACK TIE

$

$

Not available

22

Bear Cat 17520

SPRING, LT EXT .555OD X 2.75LG

$15.99

$

Usually ships in 3-7 days

0

23

Bear Cat 71207

UPPER HANDLE BAR
(Superseded to 71207-12)

$145.99

$

Usually ships in 3-7 days

0

24

Bear Cat 71402

TOP BALE WELDMENT

$94.99

$

Usually ships in 3-7 days

0

25

Bear Cat 71692

WELDMENT, HANDLEBAR

$281.99

$

Usually ships in 3-7 days

0

26

Bear Cat 71708

CONDUIT, 1/4 X 47 WIRE

$34.99

$

Usually ships in 3-7 days

0

27

Bear Cat 72684-12

BRACE, HANDLEBAR

$28.99

$

Usually ships in 3-7 days

0

28

Bear Cat 72798-35

WELDMENT, STUMPGRINDER FRAME

$1112.99

$

Usually ships in 3-7 days

0

29

Bear Cat 72812-12

WELDMENT, WHEEL BRAKE
(Superseded to 77745-12)

$103.99

$

Usually ships in 3-7 days

0

30

Bear Cat 72820-12

STRIP, SWITCH MOUNT

$44.99

$

Usually ships in 3-7 days

0

31

Bear Cat 72821-12

WELDMENT, BOTTOM BALE

$87.99

$

Usually ships in 3-7 days

0

32

Bear Cat 72823-12

STRIP, HANDLEBAR SUPPORT

$11.99

$

Usually ships in 3-7 days

0
