SG 340 - Bear Cat Stump Grinder, 340cc Honda (SN: A08032 - A08039) Body Parts Diagram

Stump Grinder, 340cc Honda

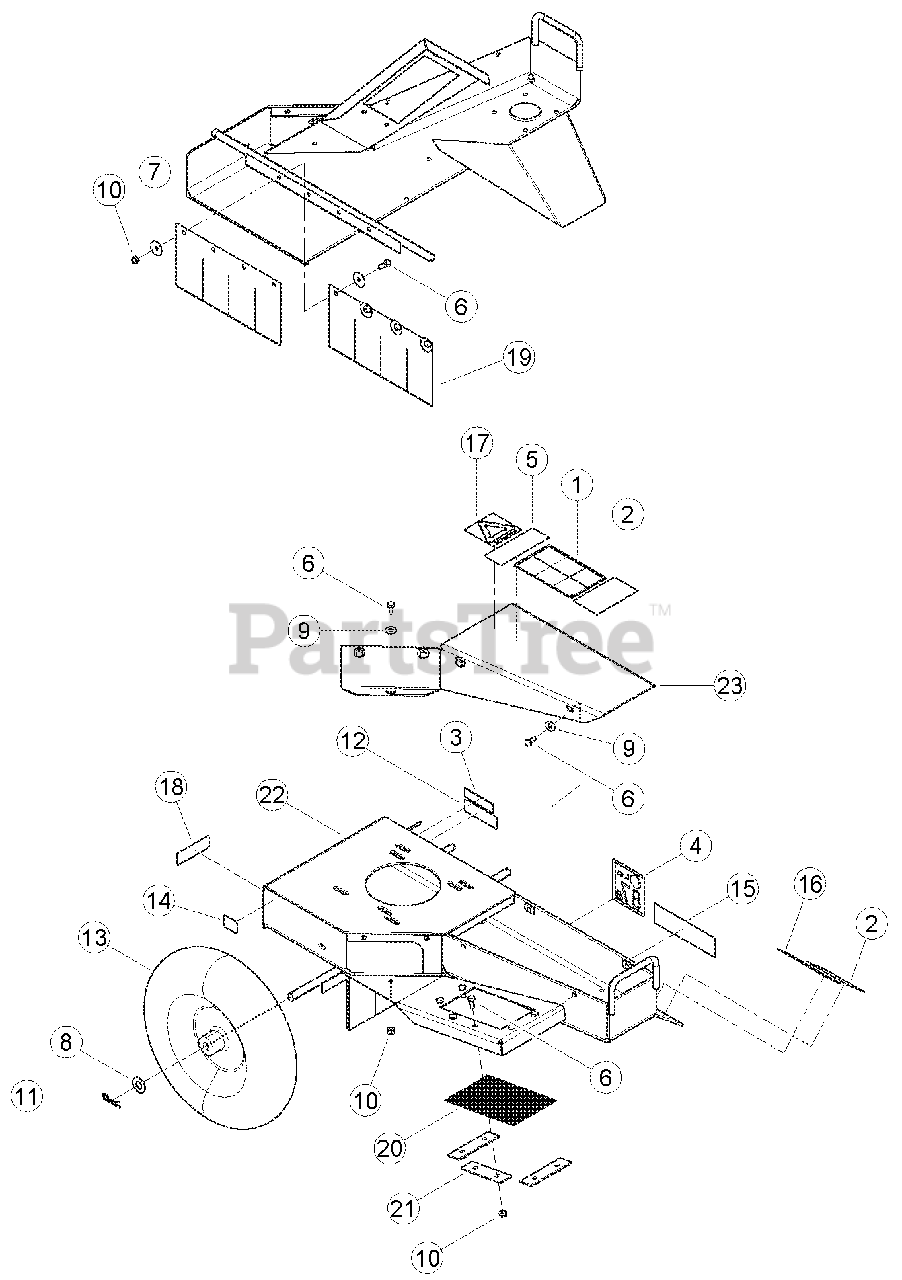

Body Parts Diagram

  • Title
1

Bear Cat 12172

DECAL, OPERATING INSTRUCTIONS ISO

$7.49

$

Usually ships in 3-7 days

0

2

Bear Cat 12254

DECAL, GRINDER DANGER

$6.49

$

Usually ships in 3-7 days

0

3

Bear Cat 12533

DECAL, STUMPGRINDER INFO

$18.99

$

Usually ships in 3-7 days

0

4

Bear Cat 14180-00

DECAL, 87 DB

$32.99

$

Usually ships in 3-7 days

0

5

Bear Cat 14942-00

DECAL, MULTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

6

Bear Cat 15003

BOLT, 5/16 X 3/4 HEX HD GR5 ZP

$

$

Not available

7

Bear Cat 15040

WASHER, 5/16 FENDER ZP

$0.99

$

Usually ships in 3-7 days

0

8

15129

WASHER, 5/8 SAE FLAT ZP

$

$

Not available

9

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

10

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

11

Bear Cat 15368

HAIRPIN CLIP ZP #203

$

$

Not available

12

Bear Cat 16155

DECAL, SERIAL NUMBER

$

$

Not available

13

Bear Cat 16678

TIRE, 480/400 X 8 WHEELBARROW
(Superseded to 32910-00)

$132.99

$

Usually ships in 3-7 days

0

14

Bear Cat 16753

DECAL, CE APPROVAL

$3.49

$

Usually ships in 3-7 days

0

15

Bear Cat 17913

DECAL, ECHO BEARCAT 6.82 X 1.90

$6.49

$

Usually ships in 3-7 days

0

16

Bear Cat 18944-00

DECAL, MODEL SG340

$12.99

$

Usually ships in 3-7 days

0

17

Bear Cat 31511-00

DECAL, SMALL RECLAIM IT

$14.99

$

Usually ships in 3-7 days

0

18

Bear Cat 31890-00

DECAL, ATLANTIC BRIDGE LTD INFO

$9.99

$

Usually ships in 3-7 days

0

19

Bear Cat 71420

MUD FLAP, STUMP GRINDER

$34.99

$

Usually ships in 3-7 days

0

20

Bear Cat 71437

DEBRIS SCREEN, STUMP GRINDER

$16.99

$

Usually ships in 3-7 days

0

21

Bear Cat 71438

SCREEN CLAMP, STUMP GRINDER

$9.49

$

Usually ships in 3-7 days

0

22

Bear Cat 72798-35

WELDMENT, STUMP GRINDER FRAME

$1112.99

$

Usually ships in 3-7 days

0

23

72803-35

COVER, TOP STUMP GRINDER

$

$

Not available
