SG 3000 (80194) - Snapper Shredder Grinder Chipper, 3hp Shredder Grinder Parts Diagram

Shredder Grinder Chipper, 3hp

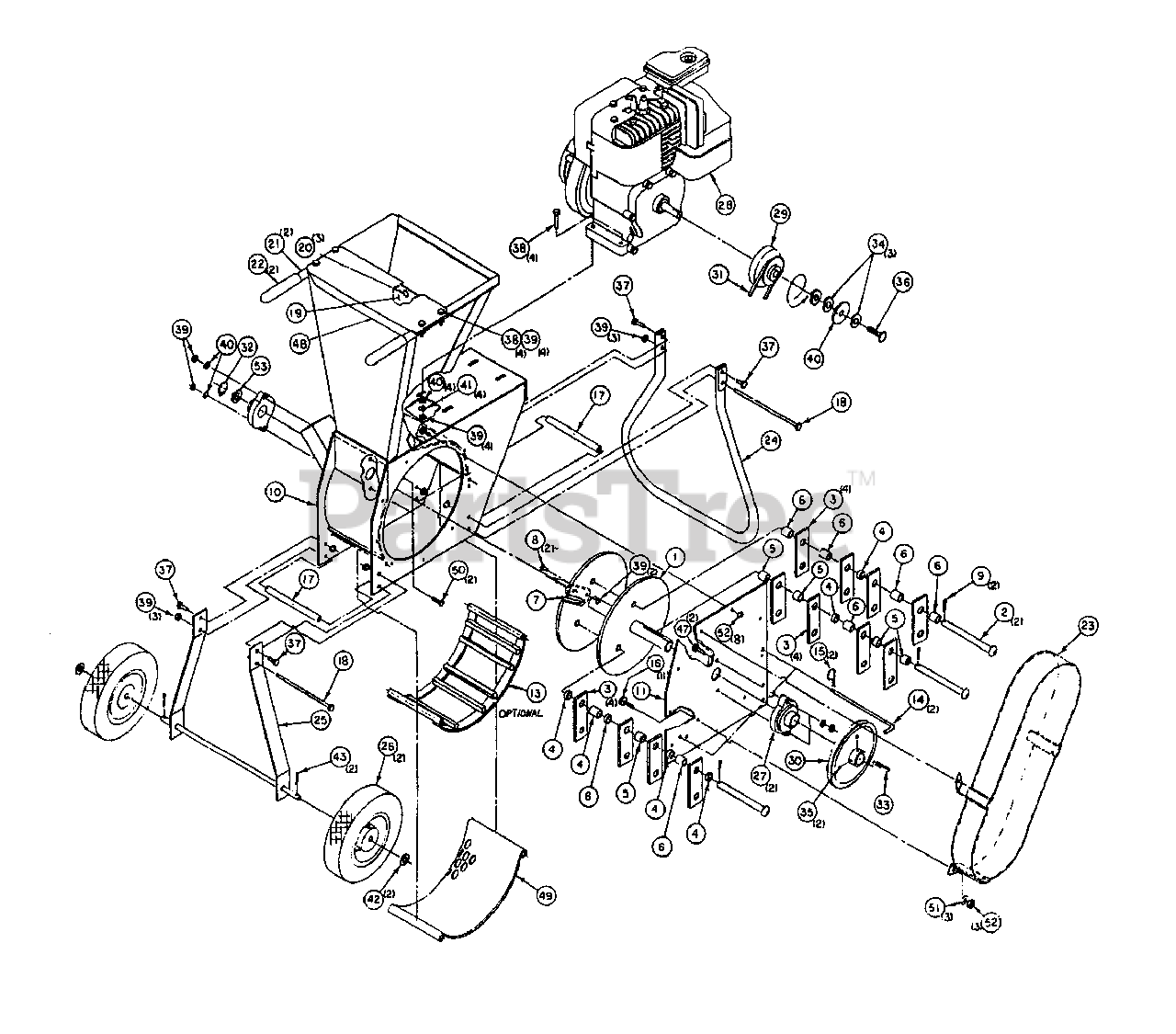

Shredder Grinder Parts Diagram

  • Title

1

Snapper 40843

Rotor Weldment

$

$

Currently unavailable

2

Snapper 40844

Hammer Rod

$

$

Currently unavailable

3

Snapper 40802

Hammer

$

$

Currently unavailable

4

Snapper 40805

Spacer 5/16" LG

$

$

Currently unavailable

5

Snapper 40804

Spacer 5/8" LG

$

$

Currently unavailable

6

Snapper 40803

Spacer 7/8" LG

$

$

Currently unavailable

7

Snapper 40847

Chipper Knife

$

$

Currently unavailable

8

Snapper 40848

5/16-18 x 1" Flat Hd. Socket Cap Screw

$

$

Currently unavailable

9

Snapper 40849

3/16" x 1-1/4" LG Cotter Pin

$

$

Currently unavailable

10

Snapper 40750

Main Body Assembly

$

$

Currently unavailable

11

Snapper 40842

Cover Plate

$

$

Currently unavailable

13

Snapper 40845

Bar Screen

Note: (Optional)

$

$

Currently unavailable

14

Snapper 40846

Screen Rod

$

$

Currently unavailable

15

Snapper 7011773

Hair Cotter 3/32"

$

$

Currently unavailable

16

Snapper 7090072

1/4-20 x 5/8" Hex Hd. Cap Screw
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

17

Snapper 40833

Pipe Spacer

$

$

Currently unavailable

18

Snapper 40850

5/16-18 x 7-1/2" LG Hex Hd. Cap Screw

$

$

Currently unavailable

19

Snapper 40834

Hopper Flex Guard

$

$

Currently unavailable

20

Snapper 40801

Push Type Tie Button

$

$

Currently unavailable

21

Snapper 40829

Handle

$

$

Currently unavailable

22

Snapper 40800

Handle Grip

$

$

Currently unavailable

23

Snapper 40798

Belt Guard

$

$

Currently unavailable

24

Snapper 40835

Front Foot

$

$

Currently unavailable

25

Snapper 40836

Axle Assembly

$

$

Currently unavailable

26

Snapper 40830

8 x 1.75 Wheel

$

$

Currently unavailable

27

Snapper 40821

Bearing

$

$

Currently unavailable

28

* ENGINE, 3 HP

$

$

Not available

29

Snapper 40887

Centrifugal Clutch

$

$

Currently unavailable

30

Snapper 40831

Sheave A550 x 1

$

$

Currently unavailable

31

Snapper 40838

V-Belt 4L-390

$

$

Currently unavailable

32

Snapper 40851

Retaining Ring

$

$

Currently unavailable

33

Snapper 7013250

Shaft Key 1/4" x 1"
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

34

Snapper 40898

1/4" Split Lockwasher

$

$

Currently unavailable

35

Snapper 7090201

5/16-18 x 5/16" Set Screw
(Superseded to 7090201SM)

$

$

Not available

36

Snapper 40899

1/4-28 x 3/4 Hex Hd. Cap Screw

$

$

Currently unavailable

37

Snapper 7076934

5/16-18 x 3/4" Hex Hd. Cap Screw
(Superseded to 7076934YP)

$3.49

$

Usually ships in 2-12 days

0

38

Snapper 7076935

5/16-18 x 1-1/2" Hex Hd. Cap Screw
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

39

Snapper 7090194

5/16-18 Grip-Co Lock Nut

$

$

Currently unavailable

40

Snapper 7090692

5/16" Flatwasher
(Superseded to 7090692YP)

$3.49

$

Usually ships in 2-12 days

0

41

Snapper 7090391

5/16" Internal Lockwasher
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

42

Snapper 7090705

1/2" Flatwasher
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

43

Snapper 7091809

1/8 x 1-1/4" Cotter Pin
(Superseded to 7091809YP)

Note: Was 90042

$4.49

$

Usually ships in 2-12 days

0

47

Snapper 7027168

5/16-18 x 1" Hex Hd. Cap Screw
(Superseded to 703585)

Note: Was 90636

$4.99

$

Usually ships in 2-12 days

0

48

Snapper 40839

Hopper Lid

$

$

Currently unavailable

49

Snapper 40840

1" Screen

$

$

Currently unavailable

50

Snapper 40852

5/16-18 x 1" Milled Hd. Cap Screw

$

$

Currently unavailable

51

Snapper 7091098

1/4" Flat Washer
(Superseded to 703302)

Note: Was 90598

$4.49

$

In Stock, Qty 20+

0

52

Snapper 40853

1/4-20 Flex Lock Nuts Cap Pltd.

$

$

Currently unavailable

53

Snapper 40825

1 1/2" O.D. x 1 1/64" I.D. x .050 Thk Shim

$

$

Currently unavailable
