SG 13 - Husqvarna Stump Grinder (2000-12) Belt Cover Guard Assembly Parts Diagram

Stump Grinder

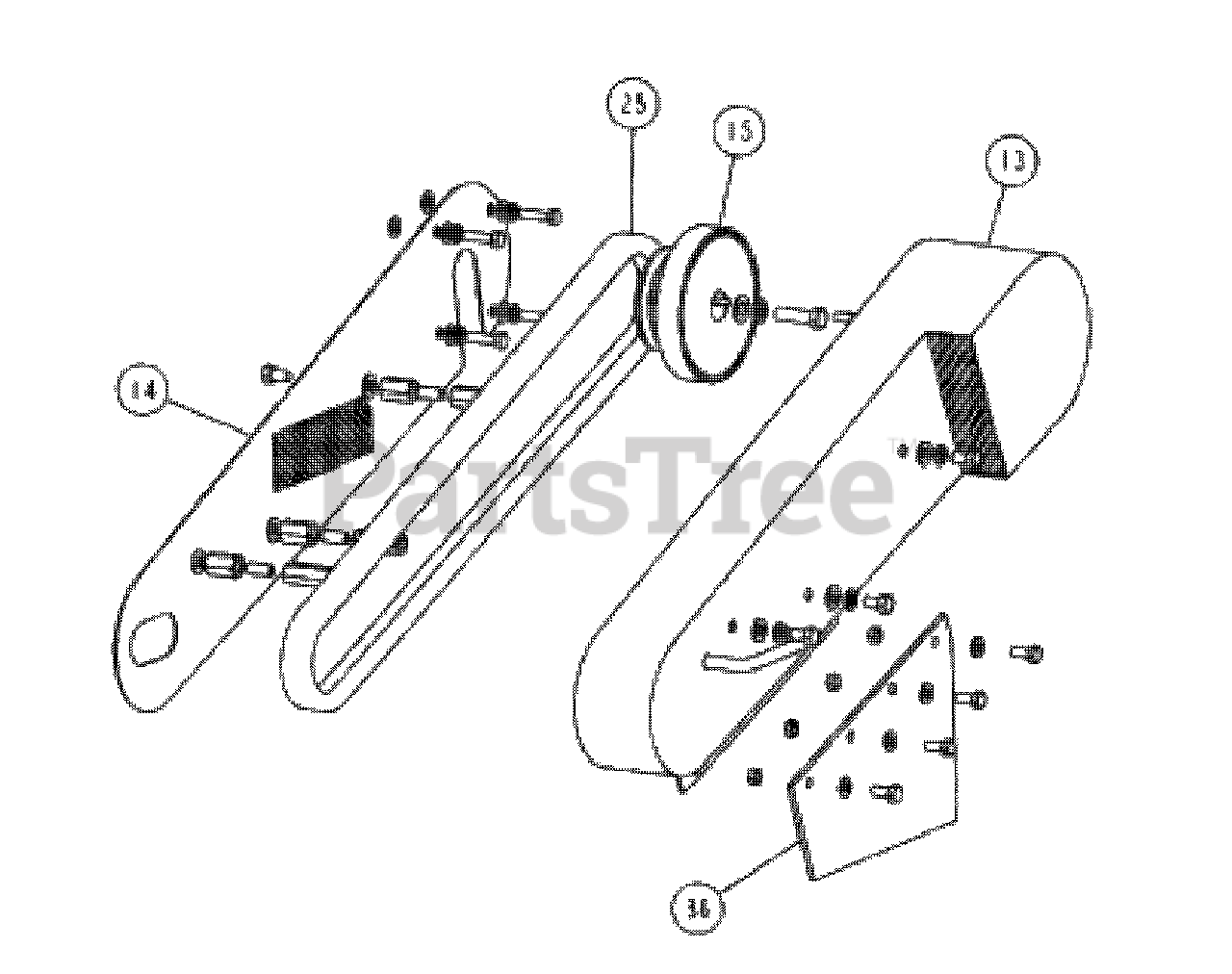

Belt Cover Guard Assembly Parts Diagram

  • Title

13

Husqvarna 540020212

Drive Cover Assembly
(Superseded to 539112298)

Note: Includes cover, 3/8"-16 x 5/8" hex bolt (3 ea), 3/8" lock washer (3 ea), 3/8" flat washer (3 ea)

$432.99

$

Usually ships in 3-10 days

0

14

Husqvarna 540020213

Belt Guard Plate
(Superseded to 540200350)

$193.99

$

Usually ships in 3-10 days

0

15

Husqvarna 540020214

Centrifugal Clutch Assembly
(Superseded to 539020020)

Note: Includes 2-groove centrifugal clutch B-4" OD 7/16"-20 x 1-1/2" hex bolt (1 ea) 7/16" split lock washer (1 ea), 7/16" flat washer (1 ea), 1/2" flat washer (1 ea), 1/4" sq x 2" key (1 ea)

$

$

Not available

25

Husqvarna 540020224

Double V-Belt, BP54
(Superseded to 539200751)

$

$

Not available

36

Husqvarna 540020237

Left Side Deflector Kit
(Superseded to 539020237)

Note: Includes neoprene deflector, 5/16"-18x 3/4" hex bolt (4 ea), 5/16" flat washer (4 ea), 5/16" lock nut (4 ea)

$

$

Not available
