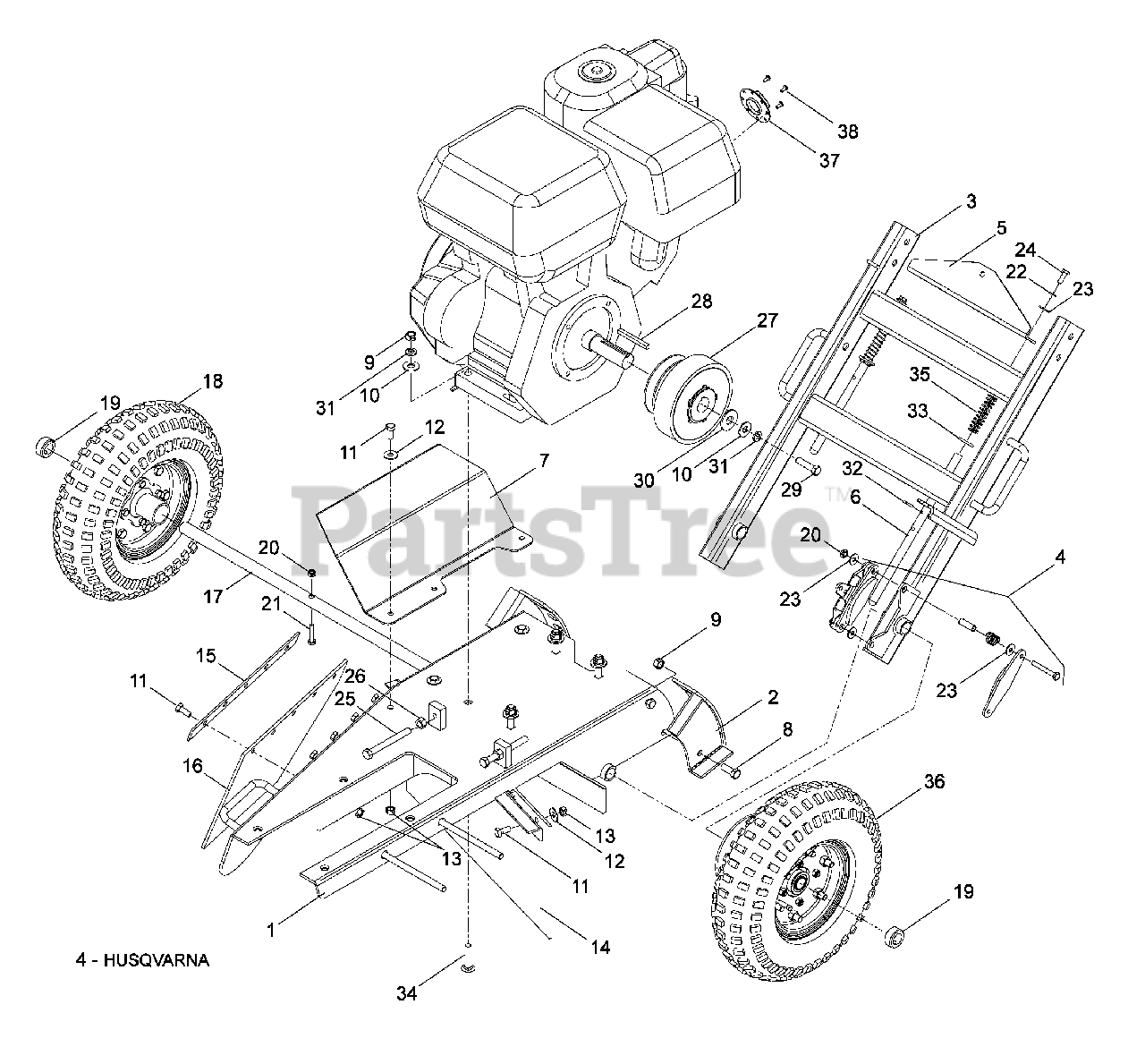

SG 13 HB/CE (966042701) - Husqvarna Stump Grinder (2009-02) Frame Parts Diagram

Stump Grinder

Frame Parts Diagram

  • Title

1

Husqvarna 539109316

DECK

$

$

Not available

2

Husqvarna 540200178

BRACKET

$

$

Not available

3

Husqvarna 539109321

HANDLE, LOWER

$242.99

$

In Stock, only 1 left!

0

4

Husqvarna 539020024

BRAKE, CALIPER

$

$

Not available

5

Husqvarna 539108649

BRACKET, HANDLE

$12.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539020082

PIN, HANDLE ADJUSTMENT

$21.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539109283

FENDER

$68.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539990563

HCS 3/8-16 x 1

$1.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539990546

NUT 3/8-16 CNTRLK

$

$

Not available

10

Husqvarna 539990517

WASHER 3/8 FLAT STD

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539976934

HCS 5/16-18 x ¾
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 539990692

WASHER 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 539990184

NUT 5/16-18 CNTRLK

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539020094

DEFLECTOR, REAR

$60.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539200781

STRAP, DEFLECTOR

$9.49

$

Usually ships in 3-10 days

0

16

Husqvarna 539020084

DEFLECTOR, SIDE

$

$

Not available

17

Husqvarna 539020085

AXLE

$48.99

$

Usually ships in 3-10 days

0

18

Husqvarna 540020025

WHEEL, RT

$169.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539020028

SET COLLAR, ¾"
(Superseded to 540020028)

$7.49

$

Usually ships in 3-10 days

0

20

Husqvarna 539990761

NUT ¼-20 CNTRLK

$4.99

$

In Stock, only 4 left!

0

21

Husqvarna 539100266

HCS ¼-20 x 1¼

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990052

LOCKWASHER ¼

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539990598

WASHER ¼

$

$

Not available

24

Husqvarna 539990580

HCS ¼-20 x ¾

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539109389

HCS 3/8-16 x 3½ TPBLT

$5.99

$

In Stock, only 3 left!

0

26

Husqvarna 539990130

NUT 3/8-16

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539020020

CLUTCH -NORAM 3 SHOE

$

$

Not available

Husqvarna 505194401

CLUTCH-AMSBECK 2 SHOE
(Superseded to 539020020)

$

$

Not available

28

Husqvarna 539917033

KEY ¼ SQ x 2½

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990164

HCS 3/8-24 x 1½

$6.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539109554

WASHER ½ FLAT

$

$

Not available

31

Husqvarna 539990118

WASHER 3/8 SPLIT LK
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 539990365

PIN, COTTER 1/8 x ¾
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

33

Husqvarna 539990250

WASHER ½, SAE

$1.99

$

In Stock, only 2 left!

0

34

Husqvarna 539990923

RHSNB 3/8-16 x 1¾

$3.49

$

Usually ships in 3-10 days

0

35

Husqvarna 539020034

SPRING, COMPRESSION

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539020074

WHEEL w/ DISC

$194.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539020092

DEFLECTOR, EXHAUST

$35.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539108495

SCREW #8-32 x 3/8

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 539109299

WIRE HARNESS, ENGINE FOR NORAM CLUTCH

Note: NOT SHOWN

$145.99

$

Usually ships in 3-10 days

0

Husqvarna 539110762

KIT, SNAP RINGS & BRGS

Note: NOT SHOWN

$169.99

$

Usually ships in 3-10 days

0

Husqvarna 539110763

KIT, CLUTCH SHOE / SPRGS FOR AMSBECK CLUTCH

Note: NOT SHOWN

$399.99

$

Usually ships in 3-10 days

0

Husqvarna 505246401

KIT, CLUTCH SHOE

Note: NOT SHOWN

$

$

Not available
