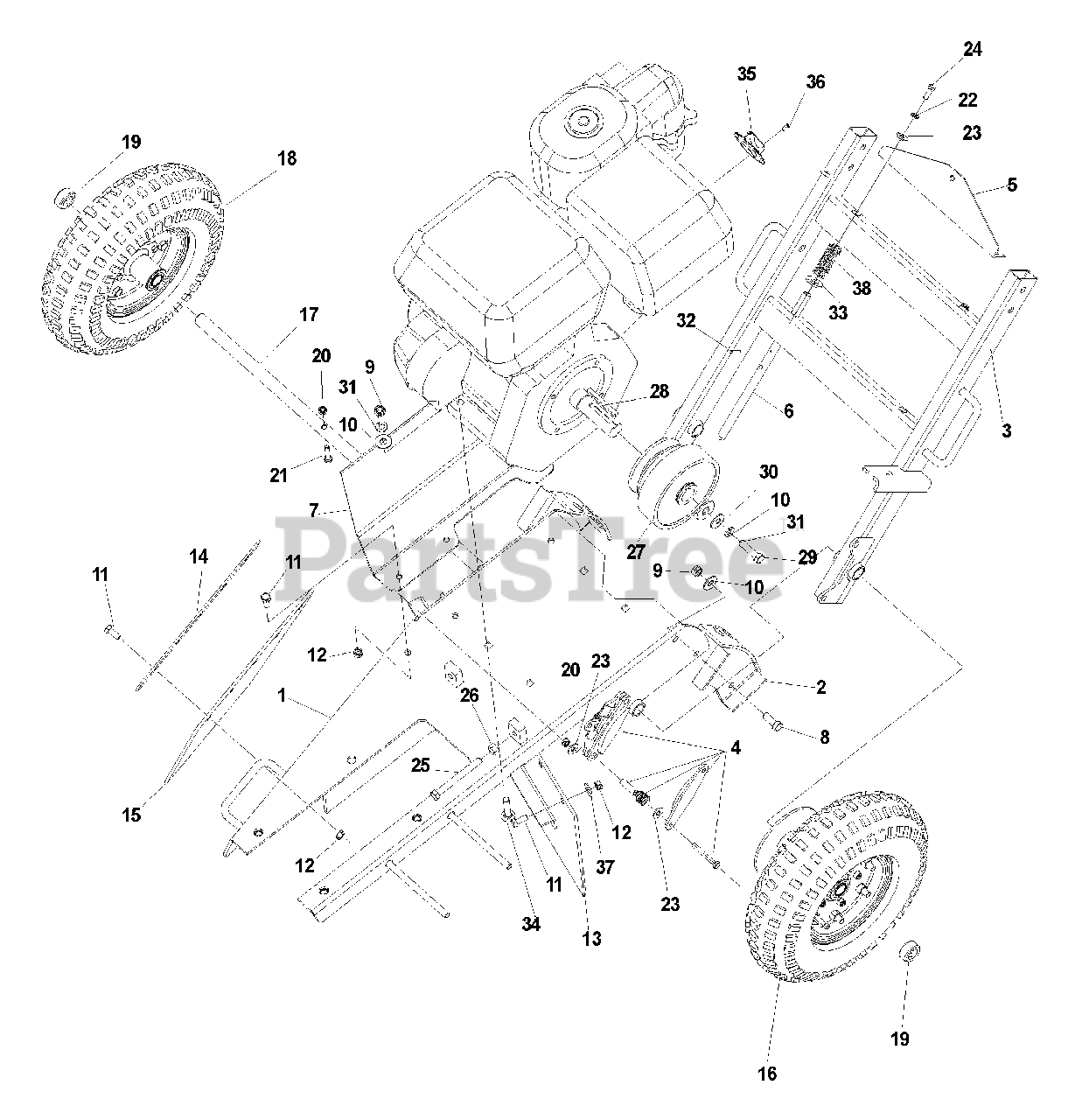

SG 13 A/CE (968999239) - Husqvarna Stump Grinder (2004-03) Deck Assembly Parts Diagram

Stump Grinder

Deck Assembly Parts Diagram

  • Title

1

Husqvarna 539109316

DECK

$

$

Not available

2

Husqvarna 540020221

BRACKET, KIT

Note: (INCLUDES ONE BRACKET & HARDWARE)

$

$

Not available

3

Husqvarna 539109321

HANDLE, LOWER

$242.99

$

In Stock, only 1 left!

0

4

Husqvarna 540020024

BRAKE, CALIPER
(Superseded to 539020024)

$

$

Not available

5

Husqvarna 540108649

BRACKET, HANDLE POSTIONING

$8.99

$

Usually ships in 3-10 days

0

6

Husqvarna 540020082

PIN, HANDLE ADJUSTMENT

$12.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539109283

FENDER

$68.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539990563

HCS 3/8-16 X 1, GR5

$1.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539990546

NUT 3/8-16, CENTER LOCK

$

$

Not available

10

Husqvarna 539990517

WASHER, 3/8, FLAT

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539976934

HCS 5/16-18 X 3/4, GR5
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 539990184

NUT 5/16-18, CENTER LOCK

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539020094

DEFLECTOR, NEOPRENE, REAR

$60.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539200781

STRAP, DEFLECTOR

$9.49

$

Usually ships in 3-10 days

0

15

Husqvarna 540020084

DEFLECTOR, SIDE, NEOPRENE
(Superseded to 539020084)

$

$

Not available

16

Husqvarna 540020074

WHEEL W/DISC, 12" SNOW HOG
(Superseded to 539020074)

$194.99

$

Usually ships in 3-10 days

0

17

Husqvarna 540020085

AXLE
(Superseded to 539020085)

$48.99

$

Usually ships in 3-10 days

0

18

Husqvarna 540020025

WHEEL, 12" SNOW HOG

$169.99

$

Usually ships in 3-10 days

0

19

Husqvarna 540020028

SET COLLAR, 3/4" BORE

$7.49

$

Usually ships in 3-10 days

0

20

Husqvarna 539990761

NUT 1/4-20, CENTER LOCK

$4.99

$

In Stock, only 4 left!

0

21

Husqvarna 539100266

HCS 1/4-20 X 1 1/4, GR5

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990052

LOCKWASHER, 1/4

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539990598

WASHER, 1/4, FLAT

$

$

Not available

24

Husqvarna 539990580

HCS 1/4-20 X 3/4, GR5

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539109389

HCS 3/8-16 X 3 1/2, GR5

$5.99

$

In Stock, only 3 left!

0

26

Husqvarna 539990130

NUT 3/8-16

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539020020

CLUTCH, CENTRIFUGAL, 2-GROOVE

$

$

Not available

Husqvarna 539110762

KIT, SNAP RINGS & BEARINGS

Note: (NOT SHOWN)

$169.99

$

Usually ships in 3-10 days

0

Husqvarna 539110763

KIT, CLUTCH SHOES & SPRINGS

Note: (NOT SHOWN)

$399.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539917033

KEY, 1/4 SQ X 2 1/2"

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990164

HCS 3/8-24 X 1 1/2, GR5

$6.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539000427

WASHER 1/2, FLAT

$

$

Not available

31

Husqvarna 539990118

LOCK WASHER, 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 539990365

COTTER PIN
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

33

Husqvarna 539990250

WASHER 1/2, SAE FLAT

$1.99

$

In Stock, only 2 left!

0

34

Husqvarna 539990923

RHSNB 3/8-16 X 1 3/4, GR5

$3.49

$

Usually ships in 3-10 days

0

35

Husqvarna 540020092

DEFLECTOR, EXHAUST
(Superseded to 539020092)

$35.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539108495

SCREW #8-32 X 3/8, SELF TAP, PHIL

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539990692

WASHER 5/16, FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

38

Husqvarna 540020034

SPRING, COMPRESSION
(Superseded to 539020034)

$3.99

$

Usually ships in 3-10 days

0
