SG 13 (968999239) - Husqvarna Stump Grinder (2005-12) MOWER DECK / CUTTING DECK Parts Diagram

Stump Grinder

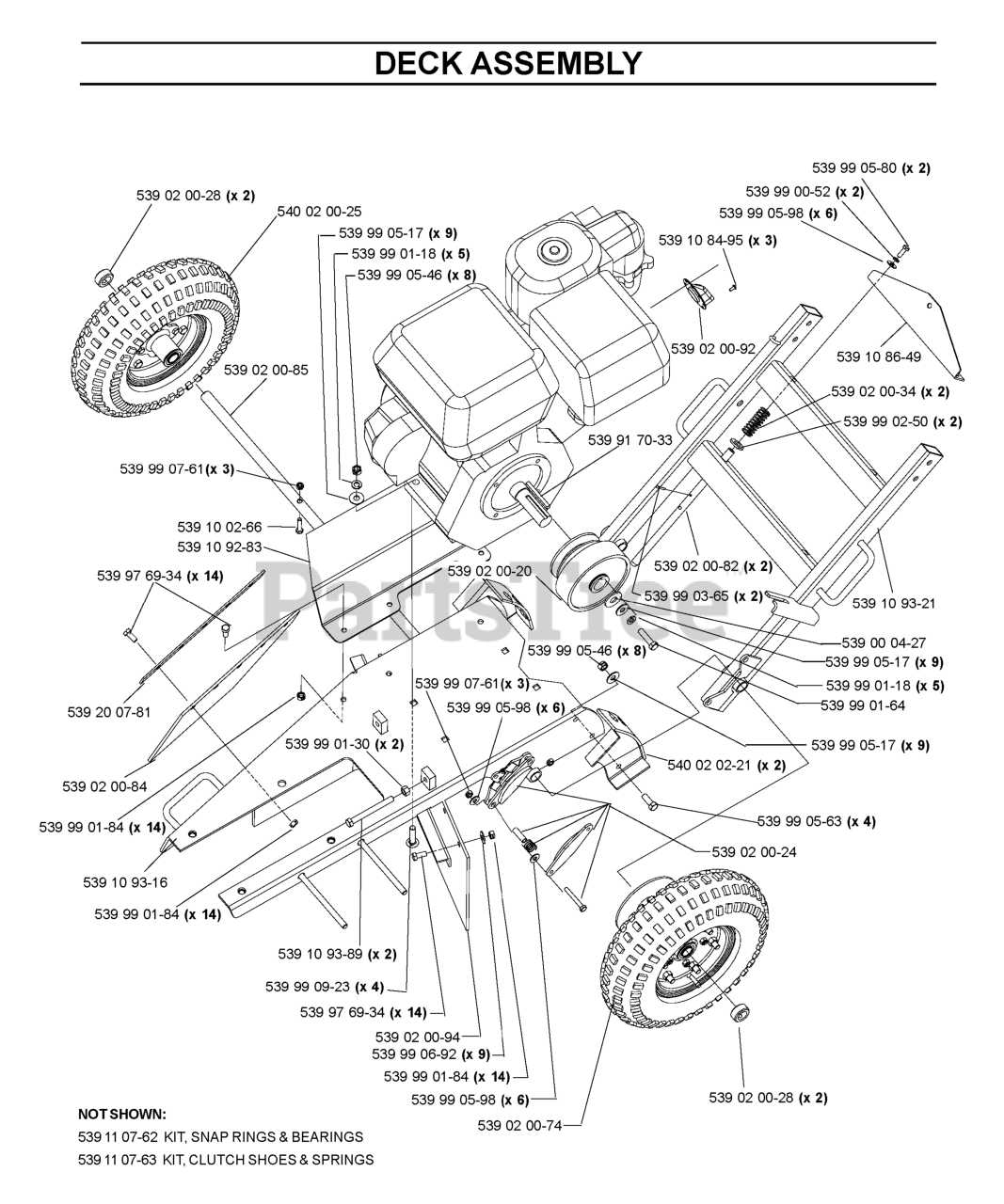

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

33

Husqvarna 540054021

ENGINE BOLT KIT
(Superseded to 539054021)

$10.99

$

Usually ships in 3-10 days

0

19

Husqvarna 540054012

LIFT ARM ROD KIT
(Superseded to 539054012)

$12.99

$

Usually ships in 3-10 days

0

24

Husqvarna 540005005

ROTOR CAP
(Superseded to 539005005)

$13.99

$

Usually ships in 3-10 days

0

3

Husqvarna 540054003

BAIL

$17.99

$

Usually ships in 3-10 days

0

26

Husqvarna 540054049

STAMPING KIT
(Superseded to 539054049)

$7.99

$

Usually ships in 3-10 days

0

13

Husqvarna 540054009

3-PRONGED LOCK DEPTH
(Superseded to 539054009)

$7.99

$

In Stock, only 4 left!

0

11

Husqvarna 540005129

SPRING
(Superseded to 539005129)

$8.99

$

In Stock, only 4 left!

0

22

Husqvarna 540000315

BEARING
(Superseded to 539000315)

$37.99

$

In Stock, Qty 7

0

41

Husqvarna 540054047

AGITATOR BAR
(Superseded to 539054047)

$

$

Not available

40

Husqvarna 540054046

SEED HOPPER

$

$

Not available

35

Husqvarna 540005162

DEFLECTOR KIT
(Superseded to 540054058)

$14.99

$

Usually ships in 3-10 days

0

1

Husqvarna 540054023

KIT, HANDLE ASSY

$

$

Not available

34

Husqvarna 540054030

DECK

$

$

Not available

42

Husqvarna 540054048

AXLE

$17.99

$

Usually ships in 3-10 days

0

44

Husqvarna 54054055

Kit Decal SD18 Seeder

$

$

Currently unavailable

23

Husqvarna 540005185

STAMPING KIT
(Superseded to 539005185)

$17.99

$

In Stock, only 3 left!

0

15

Husqvarna 540005051

WHEEL
(Superseded to 540075051)

$37.99

$

In Stock, only 1 left!

0

17

Husqvarna 540054041

KIT, WHEEL

$72.99

$

Usually ships in 3-10 days

0

9

Husqvarna 540000343

PULLEY
(Superseded to 539000343)

$44.99

$

Usually ships in 3-10 days

0

10

Husqvarna 540005121

MTG ARM, IDLER PULLEY
(Superseded to 539005121)

$

$

Not available

21

Husqvarna 540054014

TORSION SPRING
(Superseded to 539054014)

$

$

Not available

30

Husqvarna 540000339

V-BELT
(Superseded to 539000339)

$48.99

$

Usually ships in 3-10 days

0

5

Husqvarna 540005140

BELT KEEPER KIT
(Superseded to 539005140)

$74.99

$

Usually ships in 3-10 days

0

27

Husqvarna 540054015

V-PULLEY
(Superseded to 539054015)

$121.99

$

Usually ships in 3-10 days

0

37

Husqvarna 540054043

KIT, HOPPER LID

$

$

Not available

2

Husqvarna 540054024

CLUTCH CABLE
(Superseded to 540200578)

$133.99

$

Usually ships in 3-10 days

0

39

Husqvarna 540054045

KIT, PUSH-PULL CONTROL
(Superseded to 539054045)

$91.99

$

Usually ships in 3-10 days

0

8

Husqvarna 540005027

IDLER ASSY KIT
(Superseded to 539005027)

$

$

Not available

32

Husqvarna 540054020

V-PULLEY
(Superseded to 539054020)

$66.99

$

Usually ships in 3-10 days

0

29

Husqvarna 540054018

V-BELT
(Superseded to 539054018)

$

$

Not available

14

Husqvarna 540054010

ROTOR GUARD
(Superseded to 539054010)

$

$

Not available

20

Husqvarna 540054028

LIFT ARM ASSY OR

$

$

Not available

6

Husqvarna 540054025

BELT GUARD KIT ORN

$

$

Not available

25

Husqvarna 540009127

BEARING

$

$

Not available

38

Husqvarna 540054044

DIAL GAUGE KIT

$

$

Not available

28

Husqvarna 540054016

BUSHING KIT

$

$

Not available

12

Husqvarna 540054008

DEPTH ADJUSTMENT KNOB
(Superseded to 539054008)

$74.99

$

Usually ships in 3-10 days

0

16

Husqvarna 540054011

BOLT KIT
(Superseded to 539054011)

$56.99

$

Usually ships in 3-10 days

0

18

Husqvarna 540054042

KIT, WHEEL, RIGHT REAR

$85.99

$

Usually ships in 3-10 days

0

31

Husqvarna 540054019

V-PULLEY
(Superseded to 539054019)

$182.99

$

Usually ships in 3-10 days

0

36

Husqvarna 540005161

DEFLECTOR, NEOPRENE

$

$

Not available

4

Husqvarna 540005167

BOLT KIT
(Superseded to 539005167)

$6.99

$

Usually ships in 3-10 days

0

7

Husqvarna 540054007

DEPTH LEVER ASSY
(Superseded to 539054007)

$121.99

$

Usually ships in 3-10 days

0
