SG 11 - Weed Eater String Trimmer, Electric Product Complete Parts Diagram

String Trimmer, Electric

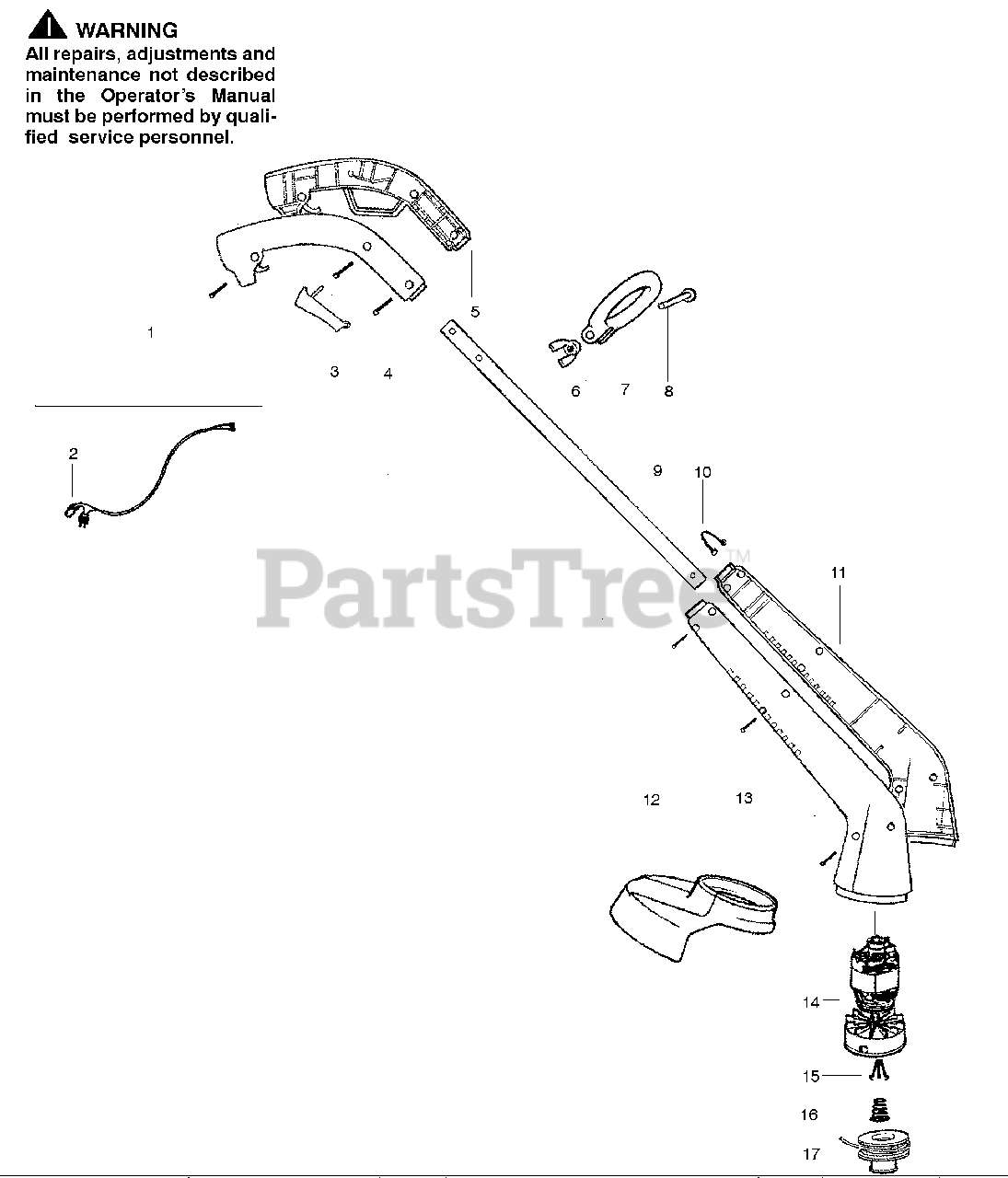

Product Complete Parts Diagram

  • Title

1

Poulan 530403587

Assy-Wire Harness

Note: (includes #2)

$

$

Not available

2

Poulan 530402879

Switch

$6.49

$

In Stock, only 3 left!

0

3

Poulan 530054813

Trigger

$

$

Not available

4

Poulan 530016120

Screw

$3.99

$

In Stock, Qty 9

0

5

Poulan 530054809

Handle Set

$

$

Not available

6

Poulan 530016152

Wing Nut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

7

Poulan 530401988

Assist Handle

$

$

Not available

8

Poulan 530401989

Bolt

$

$

Not available

9

Poulan 530402545

Tube w/Decal

$8.99

$

Usually ships in 3-10 days

0

10

Poulan 530403835

Snap Button

$

$

Not available

11

Poulan 530401971

Housing Set

$

$

Not available

12

Poulan 530401985

Shield w/Limiter

$

$

Not available

13

Poulan 530016120

Screw

$3.99

$

In Stock, Qty 9

0

14

Poulan 530404110

Motor/Hub Ass'y

Note: (incl. #15,16)

$

$

Not available

15

Poulan 530401957

Retainer-Spool

$4.99

$

In Stock, only 4 left!

0

16

Poulan 530401958

Spring-Return

$4.99

$

In Stock, Qty 6

0

17

Poulan 952701663

Accy-Spool w/ Line

$

$

Not available

17

Poulan 530084129

Operator Manual

Note: Not Shown

$

$

Not available

17

Poulan 530402012

Warning Decal

Note: Not Shown

$

$

Not available
