SG 11 - Husqvarna Stump Grinder (2000-12) Cutting Wheel Assembly Parts Diagram

Stump Grinder

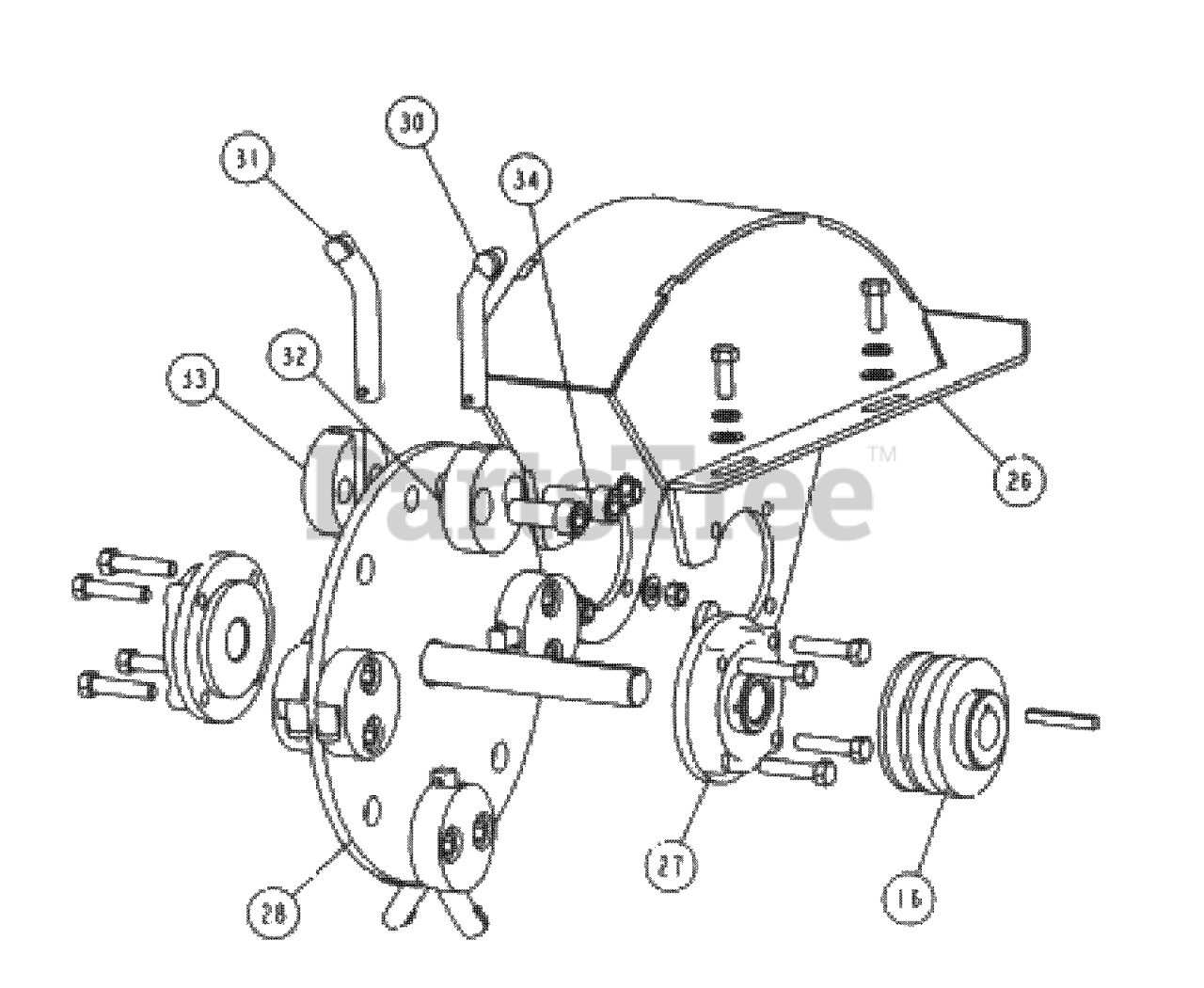

Cutting Wheel Assembly Parts Diagram

  • Title

16

Husqvarna 540020215

Double V-Pulley
(Superseded to 539111401)

Note: Includes B-3.55" OD V-pulley, 1/4" square x 2" key (1 ea)

$339.99

$

Usually ships in 3-10 days

0

26

Husqvarna 540020225

Cutting Wheel Shroud Kit

Note: Includes shroud, 3/8"-16 x 1" hex bolt (4 ea), 3/8" split lock washer (4 ea), 3/8" flat washer (4 ea)

$376.99

$

Usually ships in 3-10 days

0

27

Husqvarna 540020226

Bearings, Flange
(Superseded to 539020226)

Note: Includes bearing (1 ea), 3/8"-16 x 1-3/4" hex bolt (4 ea), 3/8" flatwasher (4 ea), 3/8" lock nut (4 ea)

$113.99

$

In Stock, only 1 left!

0

28

Husqvarna 540020227

Cutting Wheel Assembly
(Superseded to 539020227)

Note: (Cutting wheel only / no teeth) - 11 -1 /4" diameter

$667.99

$

Usually ships in 3-10 days

0

30

Husqvarna 540020229

Right Tooth (1 ea)
(Superseded to 539020229)

$22.99

$

In Stock, only 2 left!

0

31

Husqvarna 540020230

Left Tooth (1 ea)
(Superseded to 539020230)

$22.99

$

In Stock, only 2 left!

0

32

Husqvarna 540020231

Counter Bore Pocket (1 ea)
(Superseded to 539020231)

$

$

Not available

33

Husqvarna 540020232

Threaded Pocket (1 ea)
(Superseded to 539020232)

$

$

Not available

34

Husqvarna 540020233

Socket Head Screw (2 ea)
(Superseded to 539020233)

Note: 2 screws are required per complete pocket

$

$

Not available
