SFZP61-27BS - Scag Freedom Z Pro 61" Zero-Turn Mower, 27hp Briggs (SN: K8400000 - K8499999) Drive System Components - SFZP52 & SFZP61 Parts Diagram

Freedom Z Pro 61" Zero-Turn Mower, 27hp Briggs

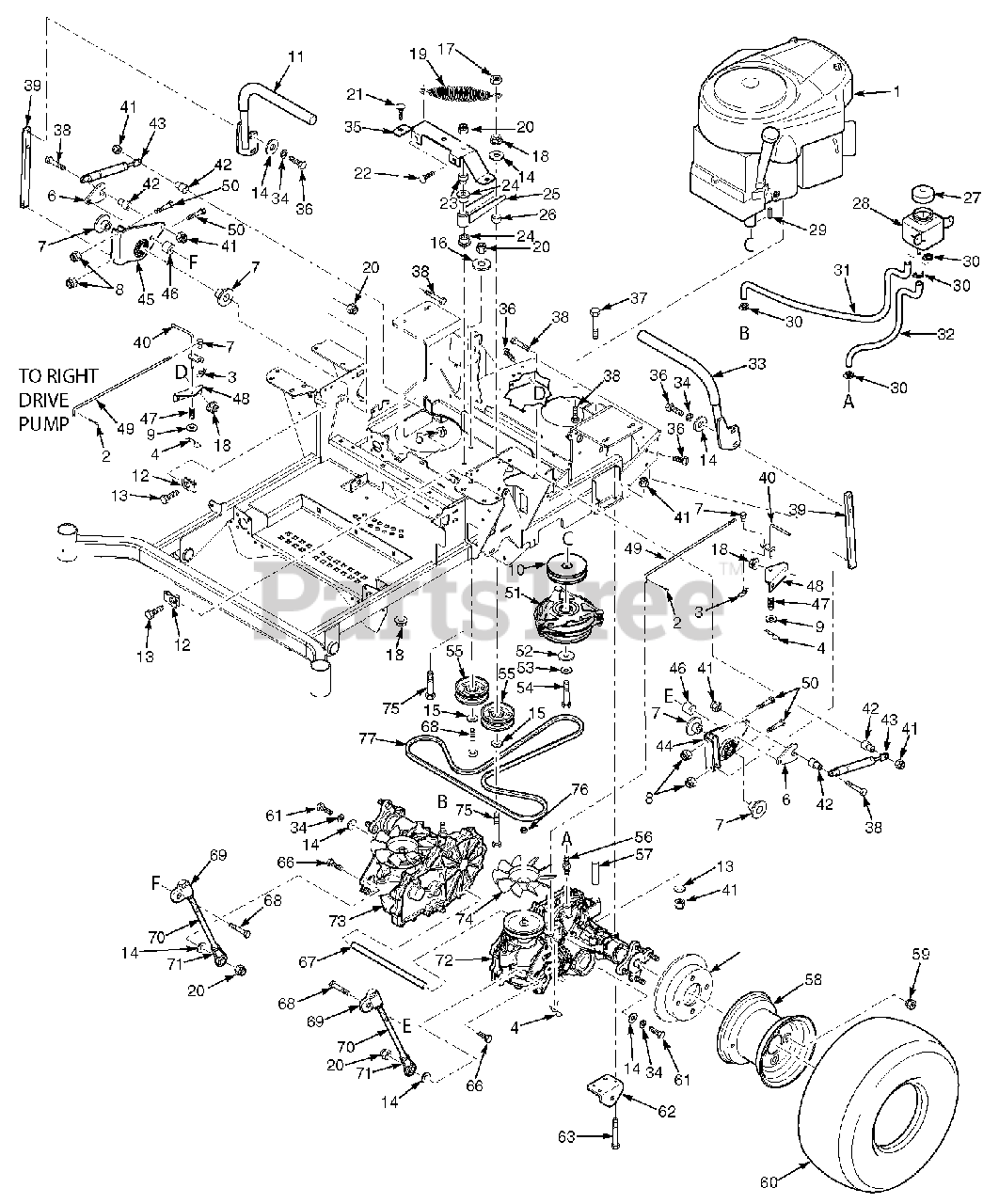

Drive System Components - SFZP52 & SFZP61 Parts Diagram

  • Title

1

Scag 485026

Engine, Briggs & Stratton - 25HP Pro

$

$

Currently unavailable

1

Scag 485025

Engine, Kawasaki - 23FS

$

$

Currently unavailable

1

Scag 485028

Engine, Briggs & Stratton - 27HP Pro

$

$

Currently unavailable

1

Scag 485027

Engine, Kawasaki - 24FS

$

$

Currently unavailable

2

Scag 04061-01

Cotter Pin, 3/32 x 1"

$0.99

$

In Stock, Qty 11

0

3

Scag 04069-01

Pin, Rue Cotter 3/8" Dia.

$1.49

$

In Stock, only 4 left!

0

4

Scag 04062-02

Hair Pin, .080 x 1.19"

$0.99

$

In Stock, Qty 20+

0

5

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

6

Scag 424687

Nut, Control Link

$5.99

$

Usually ships in 2-12 days

0

7

Scag 43719

Spacer, Linkage

$1.49

$

Usually ships in 2-12 days

0

8

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 9

0

9

Scag 04040-14

Flatwasher, 1/4-.312 x .750 x .065

$0.99

$

In Stock, only 4 left!

0

10

Scag 484373

Pulley, 5" OD - 1.125 Bore

Note: (SFZ52)

$58.99

$

Usually ships in 2-12 days

0

10

Scag 484646

Pulley, 4-1/2" OD - 1.125 Bore

Note: (SFZ61)

$36.99

$

Usually ships in 2-12 days

0

11

Scag 462371

Handle Bar w/Grip

$69.99

$

Usually ships in 2-12 days

0

11

Scag 484376

Grip

$10.99

$

Usually ships in 2-12 days

0

12

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

13

Scag 04107-01

Bolt, Hex Head 3/8-16 x 1-1/4" Special Lock
(Superseded to 04107-03)

$0.99

$

In Stock, Qty 5

0

14

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

15

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105 HD

$0.99

$

In Stock, Qty 20+

0

16

Scag 04041-11

Flatwasher, 3/8-.406 x 1.5 x 7 GA.

$1.99

$

In Stock, only 4 left!

0

17

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

18

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

19

Scag 483087

Spring, Transmission Idler

$45.99

$

In Stock, only 1 left!

0

20

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

21

Scag 04003-31

Bolt, Carriage 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 5

0

22

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

23

Scag 43715

Shaft Pivot, Idler Arm

$17.99

$

In Stock, only 1 left!

0

24

Scag 483453-04

Bearing

$3.99

$

In Stock, Qty 18

0

25

Scag 462122

Transmission Idler Arm Assembly

$

$

Not available

26

Scag 43674

Spacer, Idler Pulley - SFZ52

$2.49

$

In Stock, only 2 left!

0

26

Scag 43720

Spacer, Idler Pulley - SFZ61

$4.99

$

In Stock, only 1 left!

0

27

Scag 483514

Cap

$22.99

$

Usually ships in 2-12 days

0

28

Scag 483438

Reservoir Assembly

$37.99

$

Usually ships in 2-12 days

0

29

Scag 04063-24

Key, 1/4 x 1/4 x 2-3/4"

$1.99

$

In Stock, only 3 left!

0

30

Scag 48136-05

Clamp, 0.87" Max Dia.

$3.99

$

In Stock, only 2 left!

0

31

Scag 483431

Hose, RH Transmission

$27.99

$

Usually ships in 2-12 days

0

32

Scag 483432

Hose, LH Transmission

$27.99

$

Usually ships in 2-12 days

0

33

Scag 462370

Handle Bar Assembly, w/Grip

$69.99

$

Usually ships in 2-12 days

0

33

Scag 484376

Grip

$10.99

$

Usually ships in 2-12 days

0

34

Scag 04030-04

Lockwasher, 3/8" Spring

$0.99

$

In Stock, Qty 8

0

35

Scag 424476

Support, Idler Arm

$16.99

$

Usually ships in 2-12 days

0

36

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 6

0

37

Scag 04001-95

Bolt, Hex Head 5/16-18 x 5"

$2.49

$

In Stock, Qty 6

0

38

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 6

0

39

Scag 424498

Bar, Control Lever

$30.99

$

Usually ships in 2-12 days

0

40

Scag 451912

Dump Valve Lever

$14.99

$

Usually ships in 2-12 days

0

41

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

42

Scag 43602

Spacer, Pump Dampener

$2.99

$

In Stock, only 2 left!

0

43

Scag 484151

Dampener

$70.99

$

In Stock, Qty 6

0

44

Scag 462127

Control Link, LH

$75.99

$

Usually ships in 2-12 days

0

45

Scag 462128

Control Link, RH

$88.99

$

Usually ships in 2-12 days

0

46

Scag 43674

Spacer

$2.49

$

In Stock, only 2 left!

0

47

Scag 482070

Spring

$6.99

$

Usually ships in 2-12 days

0

48

Scag 424639

Bracket, Dump Mounting

$4.49

$

Usually ships in 2-12 days

0

49

Scag 44162

Linkage, Dump Valve

$8.99

$

Usually ships in 2-12 days

0

50

Scag 04001-04

Bolt, Hex Head 1/4-20 x 1-1/2"

$0.99

$

In Stock, Qty 16

0

51

Scag 462228

Electric Clutch Assembly - SFZ52 & SFZ61

$361.99

$

Usually ships in 2-12 days

0

52

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25

$2.99

$

In Stock, Qty 12

0

53

Scag 04041-28

Lockwasher, 7/16" spring

$2.99

$

In Stock, Qty 12

0

54

Scag 04102-08

Bolt, Hex Head 7/16-20 x 1-1/2" Patch SFZ-61

$2.49

$

In Stock, Qty 9

0

55

Scag 483638

Pulley, 3-1/2" Dia.
(Superseded to 486045)

$20.99

$

In Stock, Qty 20+

0

56

Scag 482800-02

Fitting, Transmission - SFZ52

$16.99

$

Usually ships in 2-12 days

0

56

Scag 482800-04

Fitting, Transmission - SFZ61

$10.99

$

Usually ships in 2-12 days

0

57

Scag 43700

Spacer, Axle - SFZ52

$7.99

$

Usually ships in 2-12 days

0

57

Scag 43857

Spacer, Axle - SFZ61

$17.99

$

Usually ships in 2-12 days

0

58

Scag 481659

Rim w/Valve Stem (52)

$137.99

$

In Stock, only 1 left!

0

58

Scag 482414

Rim w/Valve Stem (61)

$137.99

$

In Stock, only 1 left!

0

59

Scag 04028-02

Wheel Nut, 1/2-20

$1.49

$

In Stock, Qty 20+

0

60

Scag 484554

Wheel Assembly, 22 x 9.5-12

Note: (SFZ52)

$399.99

$

Usually ships in 2-12 days

0

60

Scag 484555

Tire, 22 x 9.5-12

Note: (SFZ52)

$259.99

$

Usually ships in 2-12 days

0

60

Scag 481659

Rim

Note: (SFZ52)

$137.99

$

In Stock, only 1 left!

0

60

Scag 484465

Wheel Assembly, 23 x 9.5-12

Note: (SFZ61)

$421.99

$

Usually ships in 2-12 days

0

60

Scag 484466

Tire, 23 x 9.5-12

Note: (SFZ61)

$322.99

$

Usually ships in 2-12 days

0

60

Scag 484056

Rim

Note: (SFZ61)

$256.99

$

In Stock, only 1 left!

0

61

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

62

Scag 424489

Bracket, Pusharm Link

$11.99

$

Usually ships in 2-12 days

0

63

Scag 04001-49

Bolt, Hex Head 5/16-18 x 3"

$0.99

$

In Stock, Qty 9

0

64

Clip, Brake Lever

Note: (order through Hydro-Gear)

$

$

Not available

65

Lever, Brake

Note: (order through Hydro-Gear)

$

$

Not available

66

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

67

Scag 43701

Spacer, Axle

$26.99

$

In Stock, only 1 left!

0

68

Scag 04001-45

Bolt, Hex Head 3/8-16 x 2"

$0.99

$

In Stock, Qty 8

0

69

Scag 483563

Rod End, Adjustable 3/8-24

$35.99

$

Usually ships in 2-12 days

0

69

Scag 04020-25

Nut, Jam 3/8-24 UNF RH

$0.99

$

In Stock, only 2 left!

0

70

Scag 483668

Linkage, Pump - SFZ52

$74.99

$

Usually ships in 2-12 days

0

70

Scag 484405

Linkage, Pump - SFZ61

$65.99

$

Usually ships in 2-12 days

0

71

Scag 483575

Stake, Rod End Assembly
(Superseded to 483574)

$67.99

$

Usually ships in 2-12 days

0

72

Scag 484449

Transaxle Assy., LH

Note: (ZL-KCEF-3LKG-1NXX) SFZ52

$

$

Not available

72

Scag 484454

Transaxle Assy., LH
(Superseded to 486885)

Note: (ZS-KCEE-3LKG-11XX) SFZ61

$2015.99

$

Usually ships in 2-12 days

0

72

Scag 484450

Transaxle Assy., RH

Note: (ZL-GCEF-3LKG-1NXX) SFZ52

$

$

Not available

73

Scag 484455

Transaxle Assy., RH

Note: (ZS-GCEE-3LKF-11XX) SFZ61

$

$

Not available

74

Fan

Note: (order through Hydro-Gear)

$

$

Not available

75

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3"

$0.99

$

In Stock, Qty 9

0

76

Fan Nut

Note: (order through Hydro-Gear)

$

$

Not available

77

Scag 483314

Belt, Transmission Drive - SFZ52

$46.99

$

In Stock, Qty 17

0

77

Scag 484372

Belt, Transmission Drive - SFZ61

$51.99

$

In Stock, Qty 5

0
