SFZ52H-26KT - Scag Freedom Z 52" Zero-Turn Mower, 26hp Kohler (SN: S6700001 - S6799999) (Rev 01) FREEDOM TRANSAXLE Parts Diagram

Freedom Z 52" Zero-Turn Mower, 26hp Kohler

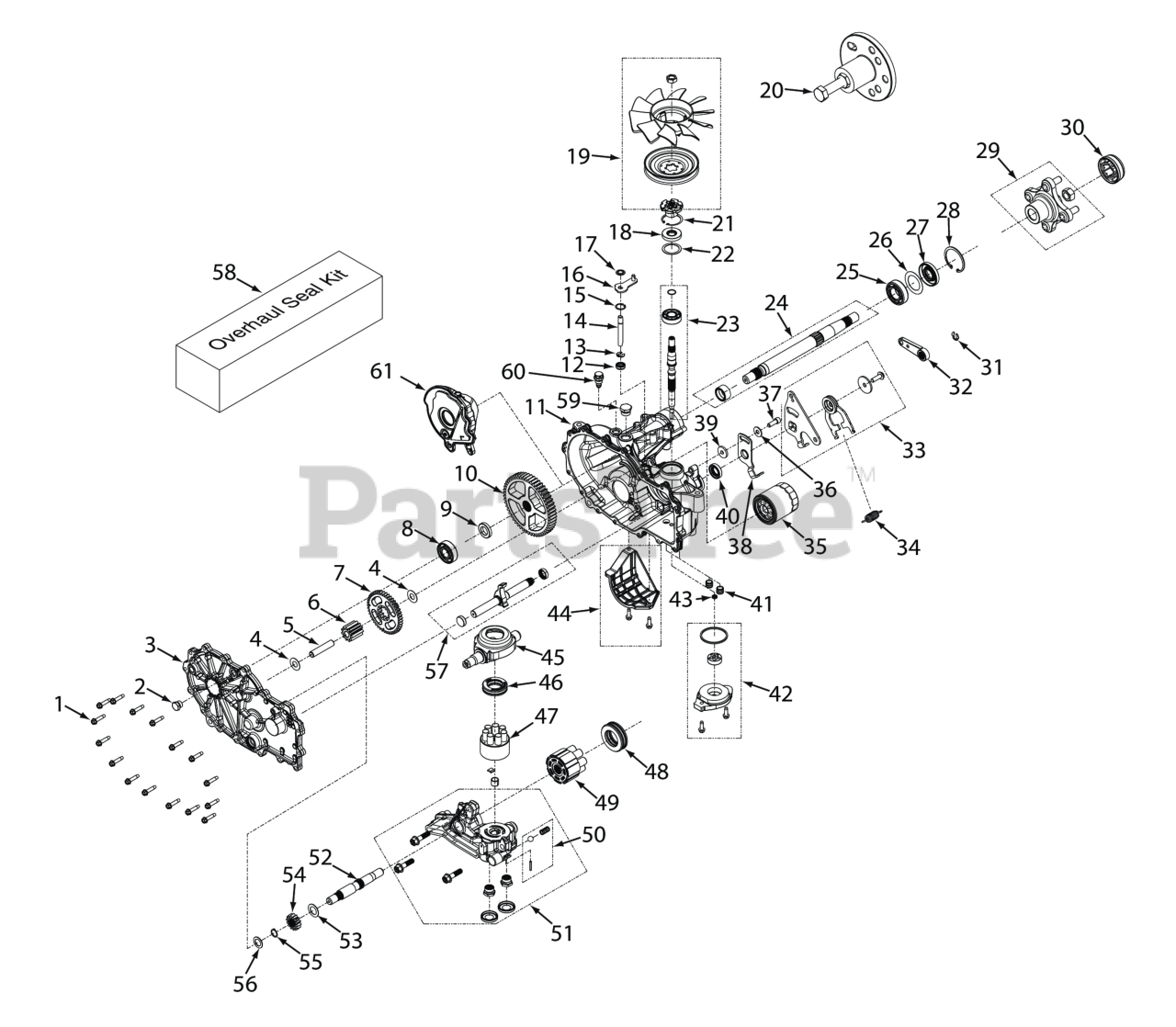

FREEDOM TRANSAXLE Parts Diagram

  • Title

1

Scag HG53246

Bolt, Hex Head 1/4-20 x 1-1/8"

$

$

Currently unavailable

2

Scag HG54730

Plug, External Hex Vent 9/16-18

$

$

Currently unavailable

3

Scag HG73096

Kit, Side Cover LH

$

$

Currently unavailable

Scag HG73095

Kit, Side Cover RH

$

$

Currently unavailable

4

Scag HG50132

Washer, .5 x 1.0 x .03

$

$

Currently unavailable

5

Scag HG51083

Jackshaft Pin

$

$

Currently unavailable

6

Scag HG52583

Gear, 11T

$

$

Currently unavailable

7

Scag HG52110

Gear, 45T

$

$

Currently unavailable

8

Scag HG72749

Kit, Bearing

$

$

Currently unavailable

9

Scag HG53336

Spacer, .750 x 1.320 x .257

$

$

Currently unavailable

10

Scag HG52108

Gear, 54T

$

$

Currently unavailable

11

Scag HG73073

Kit, Main Housing LH, Charge, Control

$

$

Currently unavailable

Scag HG73069

Kit, Main Housing RH Charge, Control

$

$

Currently unavailable

12

Scag HG55232

Seal, Lip, .375 x .75 x .25

$

$

Currently unavailable

13

Scag HG51628

Ring, .Retaining .375 External

$

$

Currently unavailable

14

Scag HG52136

Rod, By-Pass

$

$

Currently unavailable

15

Scag HG51627

R i n g , Retaining .750 Internal

$

$

Currently unavailable

16

Scag HG52370

Arm, Bypass (LH)

$

$

Currently unavailable

Scag HG51910

Arm, Bypass (RH)

$

$

Currently unavailable

17

Scag HG51630

Ring, Retainging .375 External

$

$

Currently unavailable

18

Scag HG 51161

Seal, Lip 17 x 40 x 7

$9.99

$

Usually ships in 2-12 days

0

19

Scag HG72973

Kit, Fan/Pulley

$

$

Currently unavailable

20

Scag HG72320

Kit, Hub Puller

$

$

Currently unavailable

21

Scag HG 50329

R i n g , Retaining 2.06 Internal

$5.49

$

Usually ships in 2-12 days

0

22

Scag HG 50951

Washer, 1.23 x 1.56 x .04

$3.99

$

Usually ships in 2-12 days

0

23

Scag HG73047

Kit, Input Shaft

$

$

Currently unavailable

24

Scag HG71569

Kit, Shaft, Axle

$

$

Currently unavailable

25

Scag HG53656

Bearing, Ball 1.0 x 52 x 15 Open

$

$

Currently unavailable

26

Scag HG53514

Spacer, 1.355 x 2.035 x .021

$

$

Currently unavailable

27

Scag HG53699

Seal, Lip TC4 1.0 x 2.06 x .38

$

$

Currently unavailable

28

Scag HG50859

R i n g , Retaining 2.06 Internal

$

$

Currently unavailable

29

Scag HG71405

Hub, 4-Bolt

$88.99

$

Usually ships in 2-12 days

0

30

Scag HG53088

Cap, Axle

$

$

Currently unavailable

31

Scag HG53019

Ring, Retaining External .375"

$

$

Currently unavailable

32

Scag HG53973

Handle, Brake

$

$

Currently unavailable

33

Scag HG71598

Kit, RTN Bi-Directional (Right Side)

$

$

Currently unavailable

Scag HG71595

Kit, RTN Bi-Directional (Left Side)

$

$

Currently unavailable

34

Scag HG51605

Spring, Extension, RTN - 44lbs

$

$

Currently unavailable

35

Scag HG52114

Filter, Oil

$24.99

$

Usually ships in 2-12 days

0

36

Scag HG44130

Washer, 7/16 x 7/8 OD x .06 HT

$

$

Not available

37

Scag HG51616

Bolt, Hex Head Cap Screw 5/16-24 x 1" Patch

$

$

Currently unavailable

38

Scag HG51946

Arm, Neutral (Left Side)

$

$

Currently unavailable

Scag HG51945

Arm, Neutral (Right Side)

$

$

Currently unavailable

39

Scag HG54315

Spacer, .32 ID x 1.005 OD x .1495 Thk

$

$

Currently unavailable

40

Scag HG51140

Seal, Lip 18 x 32 x 7

$

$

Currently unavailable

41

Scag HG54501

Tube, Charge Triple O-ring

$

$

Currently unavailable

42

Scag HG72274

Kit, Charge Pump

$114.99

$

Usually ships in 2-12 days

0

43

Scag HG72291

Kit, Gerotor Seal

$

$

Currently unavailable

44

Scag HG71854

Kit, Filter Guard (LH)

$

$

Currently unavailable

Scag HG73041

Kit, Filter Guard (RH)

$

$

Currently unavailable

45

Scag HG51048

Trunnion, Swashplate

$

$

Currently unavailable

46

Scag HG 50551

Ball Thrust Bearing

$24.99

$

Usually ships in 2-12 days

0

47

Scag HG70723

Kit, Cylinder Block

$

$

Currently unavailable

48

Scag HG51462

Thrust Ball Bearing Assembly

$40.99

$

Usually ships in 2-12 days

0

49

Scag HG72882

Kit, 16cc Cylinder Block Assembly (steam

$

$

Currently unavailable

50

Scag HG71436

Kit, Charge Relief

$

$

Currently unavailable

51

Scag HG72515

Kit, Charge Relief

$

$

Currently unavailable

Scag HG72516

Kit, Center Section, LH Charge

$

$

Currently unavailable

52

Scag HG52150

Shaft, Motor

$

$

Currently unavailable

53

Scag HG51069

Washer, .72 x 1.16 x .04

$

$

Currently unavailable

54

Scag HG52109

Washer, Flat, .71 x 1.16 x .04

$

$

Currently unavailable

55

Scag HG44145

Ring, Retaining .625

$

$

Currently unavailable

56

Scag HG44371

Washer, HT .62 ID x 1.0 OD x .05 Thick

$1.99

$

Usually ships in 2-12 days

0

57

Scag HG73119

Kit, Outboard, RH Rot B / LH Rot A (LH)

$

$

Currently unavailable

Scag HG73118

Kit, Outboard, RH Rot A / LH Rot B (RH)

$

$

Currently unavailable

58

Scag HG73107

Kit, Seal (ZT-2800)

$120.99

$

Usually ships in 2-12 days

0

59

Scag HG54974

Plug, 3/4-16

$

$

Currently unavailable

60

Scag HG55380

Fitting 9 /16 - 18, Breather

$

$

Currently unavailable

61

Scag HG55072

Expansion Tank, Internal LH

$

$

Currently unavailable

Scag HG55071

Expansion Tank, Internal RH

$

$

Currently unavailable

Scag HG50928

Tube, Sealant

Note: Item not shown

$

$

Currently unavailable
