SFZ52-26BS - Scag Freedom Z 52" Zero-Turn Mower, 26hp Briggs & Stratton (SN: G2200300 - G2299999) Echaust And Electrical System - SFZ48 & SFZ52 Parts Diagram

Freedom Z 52" Zero-Turn Mower, 26hp Briggs & Stratton

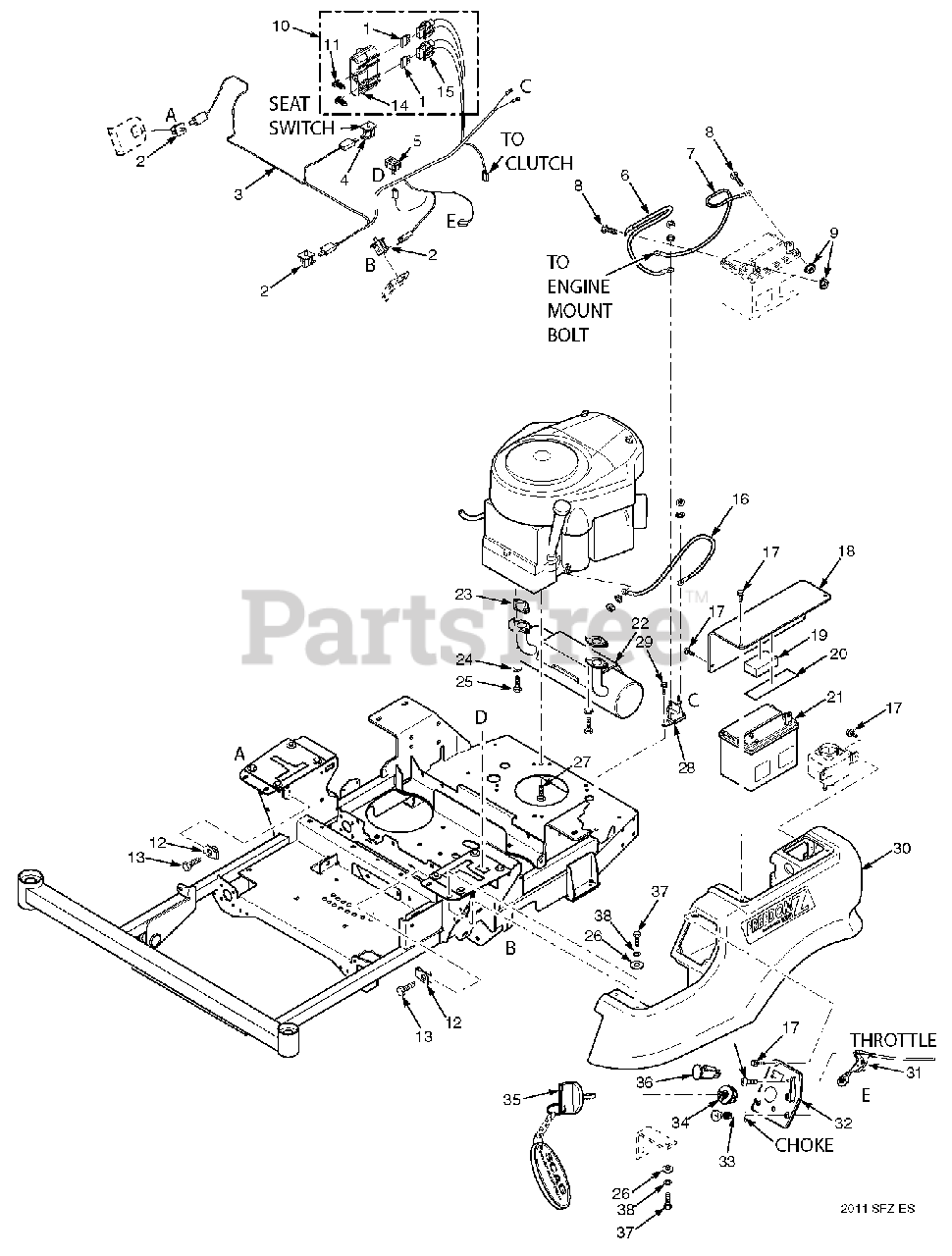

Echaust And Electrical System - SFZ48 & SFZ52 Parts Diagram

  • Title

1

Scag 48298

Fuse, 20 amp

$3.99

$

Usually ships in 2-12 days

0

2

Scag 483473

Switch

$16.99

$

In Stock, Qty 12

0

3

Scag 483621

Wire Harness, Main
(Superseded to 484433)

$364.99

$

Usually ships in 2-12 days

0

3

Scag 483628

Wire Harness Adapter,

Note: Kawasaki (not shown)

$24.99

$

Usually ships in 2-12 days

0

4

Scag 483474

Switch, Seat

$31.99

$

In Stock, only 1 left!

0

5

Scag 483537

Hourmeter
(Superseded to 484565)

$51.99

$

In Stock, only 1 left!

0

6

Scag 48029-13

Battery Cable, Red 25"

$13.99

$

In Stock, only 1 left!

0

7

Scag 48029-11

Battery Cable, Black 27"

$14.99

$

In Stock, only 1 left!

0

8

Scag 04001-44

Bolt, Hex Head 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 6

0

9

Scag 04020-02

Nut, 1/4-20

$0.99

$

In Stock, Qty 10

0

10

Scag 483642

Double Fuse Assy.

Note: (incl. items 1, 14, 15, 46)

$43.99

$

Usually ships in 2-12 days

0

11

Scag 482588

Clip, Wire

$1.99

$

Usually ships in 2-12 days

0

12

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

13

Scag 04107-03

Bolt, Hex Head 3/8-16 x 1-1/4" Special Lock

$0.99

$

In Stock, Qty 5

0

14

Scag 483571

Cover, Sealed Double

$1.99

$

Usually ships in 2-12 days

0

15

Scag 483629

Fuse Holder

$7.49

$

In Stock, Qty 7

0

16

Scag 48029-09

Battery Cable, Red 9"

$10.99

$

Usually ships in 2-12 days

0

17

Scag 04017-04

Bolt, Hex Head 1/4-20 x 1/2" Serr. Flange

$0.99

$

In Stock, Qty 20+

0

18

Scag 461996

Battery Cover

Note: (incl. items 19 & 20)

$40.99

$

In Stock, only 2 left!

0

19

Scag 483452

Pad, Battery Hold Down
(Superseded to 485506)

$3.99

$

In Stock, only 1 left!

0

20

Scag 483508

Rubber Pad

$18.99

$

In Stock, only 1 left!

0

21

Scag 483665

Battery

Note: (not avail. through Scag)

$

$

Not available

22

Scag 483381

Muffler

Note: Briggs & Stratton

$283.99

$

Usually ships in 2-12 days

0

22

Scag 483383

Muffler

Note: Kawasaki

$312.99

$

Usually ships in 2-12 days

0

23

Exhaust Gasket

Note: Available through individual engine manufacturer.

$

$

Not available

24

Lockwasher

Note: Available through individual engine manufacturer.

$

$

Not available

25

Bolt

Note: Available through individual engine manufacturer.

$

$

Not available

26

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

27

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

Note: (Kawasaki)

$0.99

$

In Stock, Qty 12

0

Scag 04030-04

Lockwasher, 3/8" Spring

Note: (Kawasaki)

$0.99

$

In Stock, Qty 8

0

27

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

Note: (Briggs)

$0.99

$

In Stock, Qty 6

0

27

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

27

Scag 04031-03

Lockwasher, 5/16" Spring

Note: (Briggs)

$0.99

$

Usually ships in 2-12 days

0

Scag 04011-07

Capscrew, Hex Head 3/8-16 x 1-1/4" Self Tap

Note: (Briggs)

$3.49

$

In Stock, Qty 11

0

28

Scag 483278

Solenoid

$51.99

$

In Stock, only 1 left!

0

29

Scag 04011-13

Bolt, Self Tapping 1/2-20 x 3/4" Shakeproof
(Superseded to 04011-14)

$0.99

$

In Stock, Qty 13

0

30

Scag 483364

Tank, LH
(Superseded to 463119)

$264.99

$

Usually ships in 2-12 days

0

31

Scag 483434

Throttle Cable

Note: Briggs & Stratton

$24.99

$

In Stock, only 3 left!

0

31

Scag 483645

Throttle Cable

Note: Kawasaki

$23.99

$

In Stock, only 2 left!

0

32

Scag 462036

Instrument Panel w/Decal
(Superseded to 462322)

$21.99

$

Usually ships in 2-12 days

0

33

Scag 483435

Choke Cable

Note: Briggs & Stratton

$25.99

$

In Stock, only 1 left!

0

33

Scag 483646

Choke Cable

Note: Kawasaki

$26.99

$

Usually ships in 2-12 days

0

34

Scag 483472

Ignition Switch

$22.99

$

In Stock, Qty 20+

0

35

Scag 483366

Key, Ignition
(Superseded to 462069)

$8.49

$

In Stock, Qty 20+

0

Scag 483609

Key w/Shroud

$2.99

$

In Stock, Qty 9

0

Scag 462069

Key Assembly w/Fob

$8.49

$

In Stock, Qty 20+

0

36

Scag 483957

PTO Switch
(Superseded to 463034)

$37.99

$

In Stock, Qty 20+

0

37

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

38

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0
