SFZ52-26BS - Scag Freedom Z 52" Zero-Turn Mower, 26hp Briggs & Stratton (SN: F3500300 - F3599999) SFZ48, SFZ52 & SFZ61 Fuel System - EPA Phase 2 Parts Diagram

Freedom Z 52" Zero-Turn Mower, 26hp Briggs & Stratton

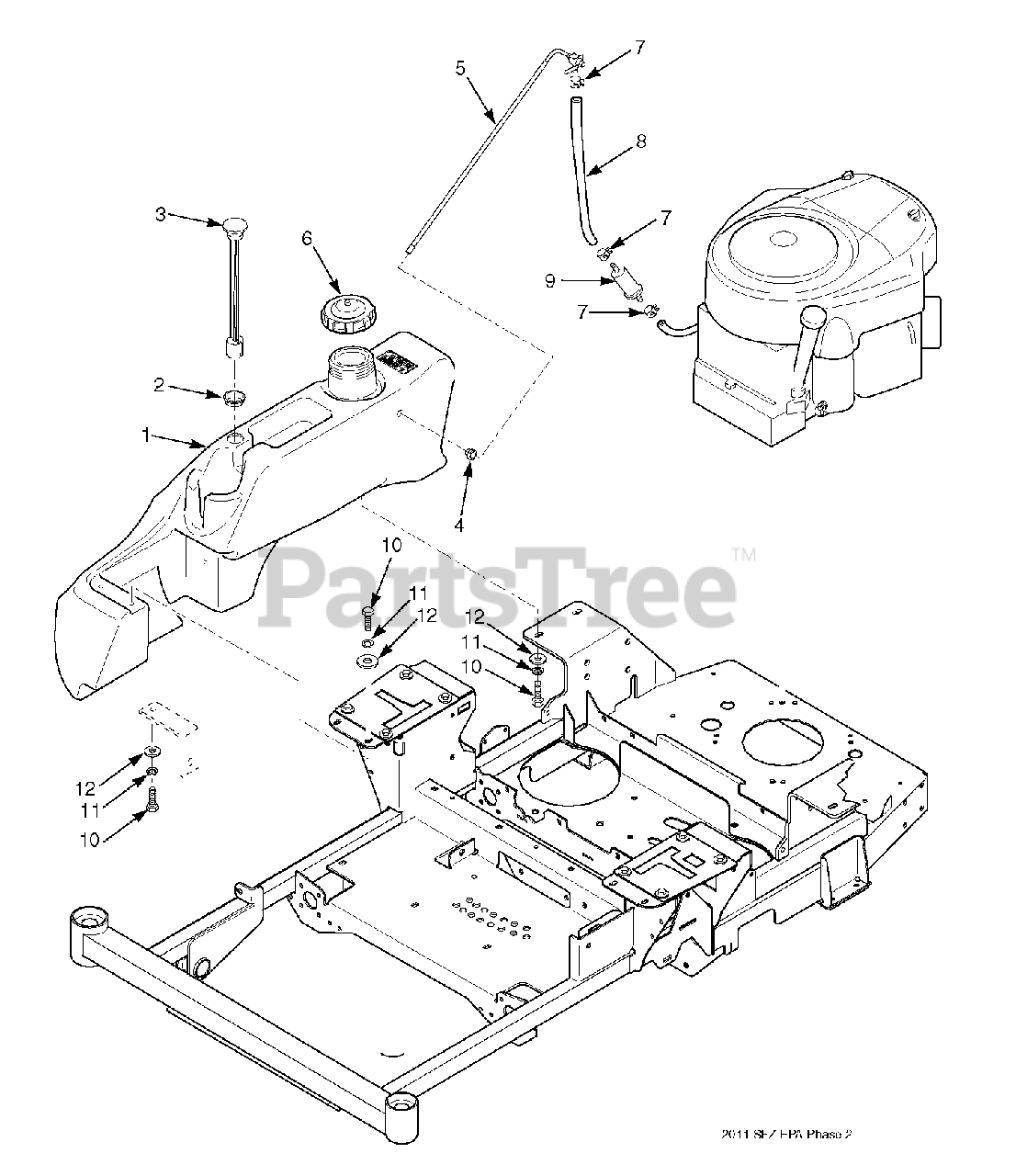

SFZ48, SFZ52 & SFZ61 Fuel System - EPA Phase 2 Parts Diagram

  • Title

1

Scag 462319

Fuel Tank Assembly
(Superseded to 462756)

$545.99

$

Usually ships in 2-12 days

0

2

Scag 483536

Grommet

$5.99

$

In Stock, Qty 8

0

3

Scag 484243

Fuel Gauge Assembly

$80.99

$

Usually ships in 2-12 days

0

4

Scag 482571

Bushing, 0.56 Dia Viton

$12.99

$

In Stock, Qty 20+

0

5

Scag 483555

Fuel Tube Assembly

$56.99

$

Usually ships in 2-12 days

0

6

Scag 483792

Fuel Cap

$26.99

$

In Stock, Qty 6

0

7

Scag 48059-01

Clamp, Fuel Hose 1/4"

$0.99

$

In Stock, Qty 7

0

8

Scag 483617

Fuel Hose, 1/4" ID Non-Perm

Note: (Order by inch)

$0.99

$

In Stock, Qty 20+

0

9

Fuel Filter

Note: Available through engine manufacturer only.

$

$

Not available

10

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

11

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0

12

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0
