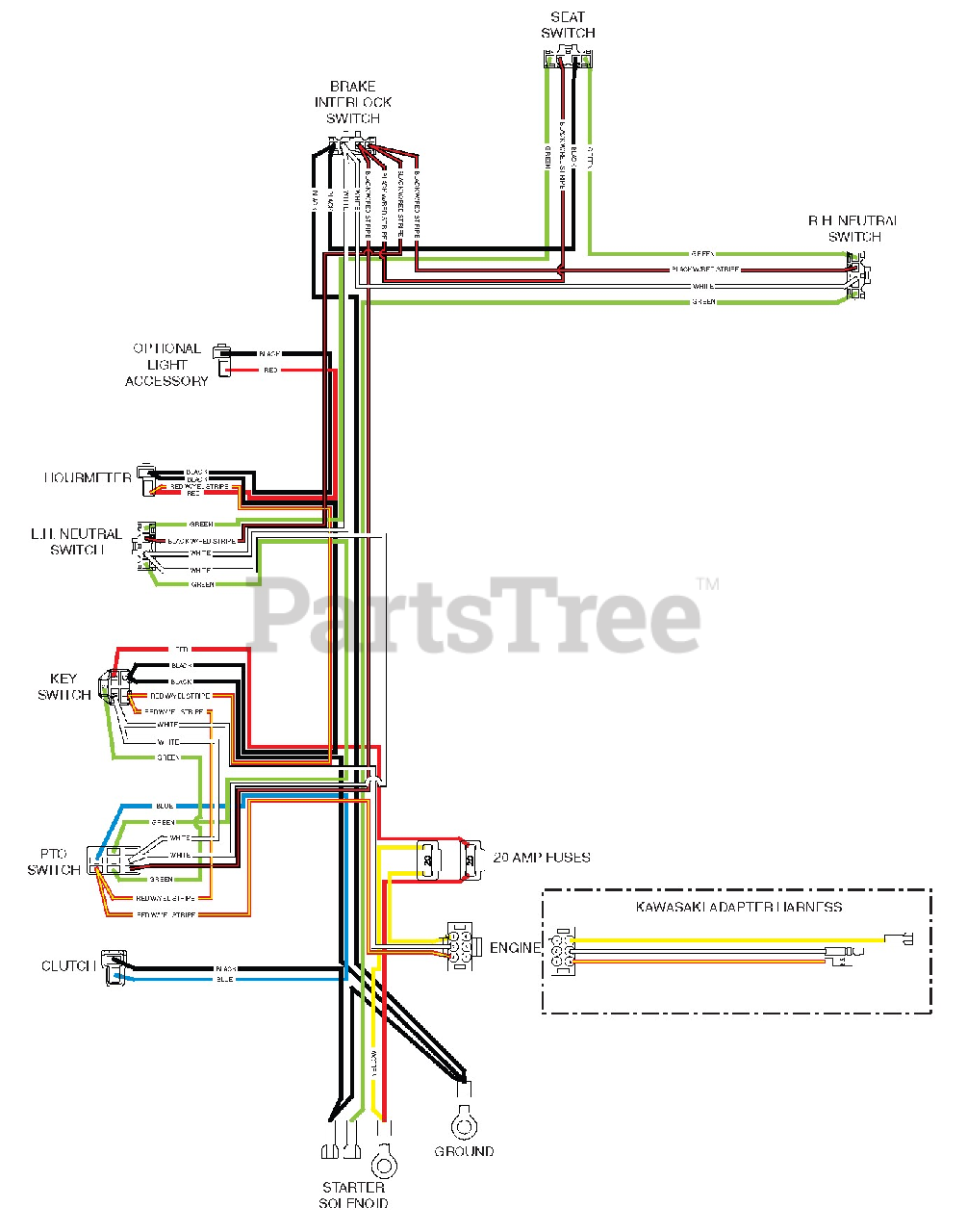

SFZ52-23FS - Scag Freedom Z 52" Zero-Turn Mower, 23hp Kawasaki (SN: J8300000 - J8399999) Electrical Schematic Parts Diagram

Freedom Z 52" Zero-Turn Mower, 23hp Kawasaki

Electrical Schematic Parts Diagram

  • Title

No Part List Information Available

$

$

Not available
