SFZ52-19KA - Scag Freedom Z 52" Zero-Turn Mower, 19hp Kawasaki (SN: D8800001 - D8800150) Roll-Over Protection System Parts Diagram

Freedom Z 52" Zero-Turn Mower, 19hp Kawasaki

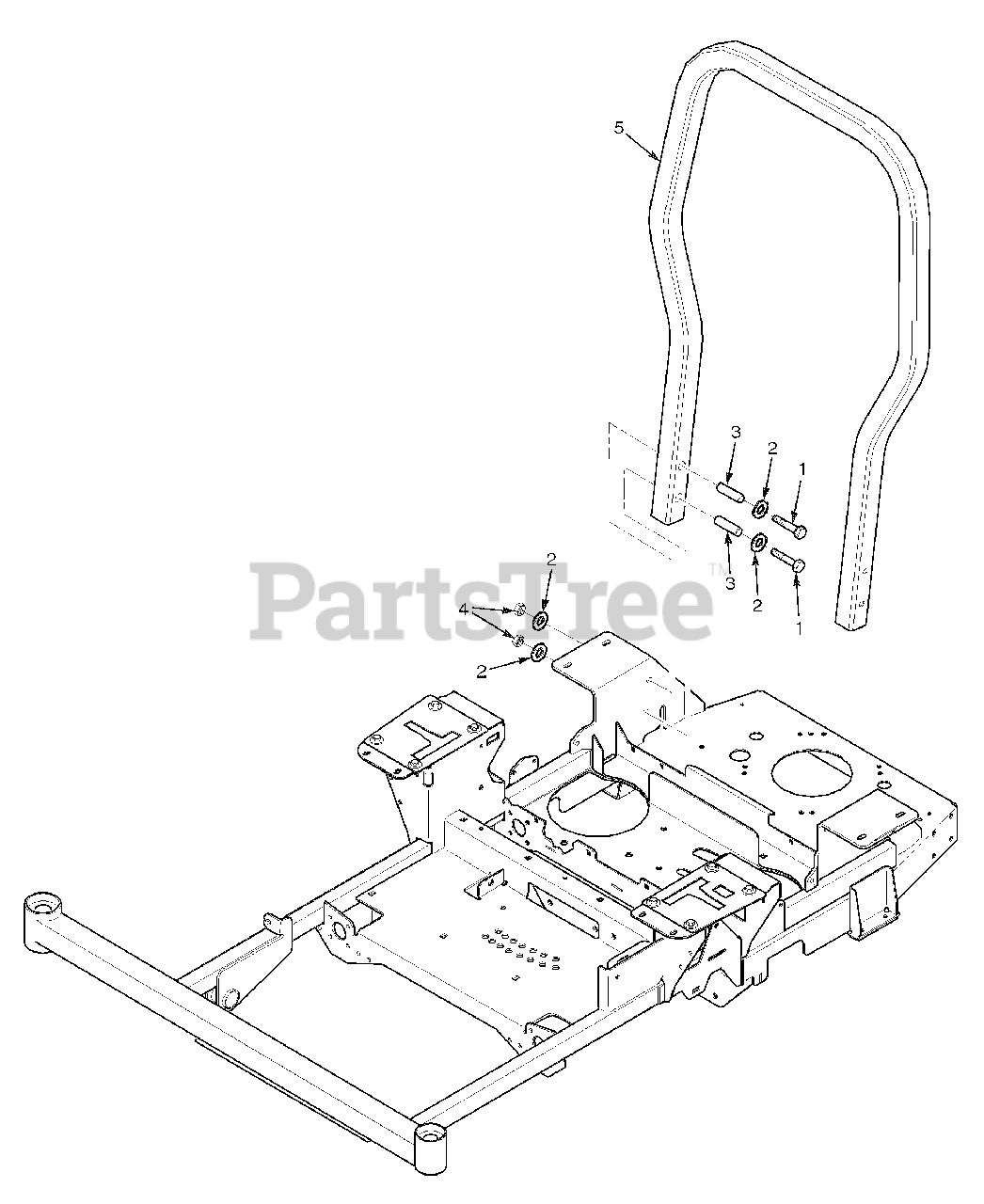

Roll-Over Protection System Parts Diagram

  • Title
1

Scag 04001-184

Bolt, Hex Head 1/2-13 x 3-1/4" Gr. 8

$2.99

$

In Stock, Qty 6

0

2

Scag 04040-13

Flatwasher, 1/2-.562 x 1.375 x .109

$0.99

$

In Stock, Qty 20+

0

3

Scag 43743

Bushing, SFZ ROPS

$6.49

$

Usually ships in 2-12 days

0

4

Scag 04021-19

Nut, Center Lock 1/2-13

$0.99

$

In Stock, Qty 10

0

5

Scag 462021

ROPS, SFZ

$354.99

$

Usually ships in 2-12 days

0
