SFZ48H-24KT - Scag Freedom Z 48" Zero-Turn Mower, 24hp Kohler (SN: R7600001 - R7699999) SHEET METAL COMPONENTS Parts Diagram

Freedom Z 48" Zero-Turn Mower, 24hp Kohler

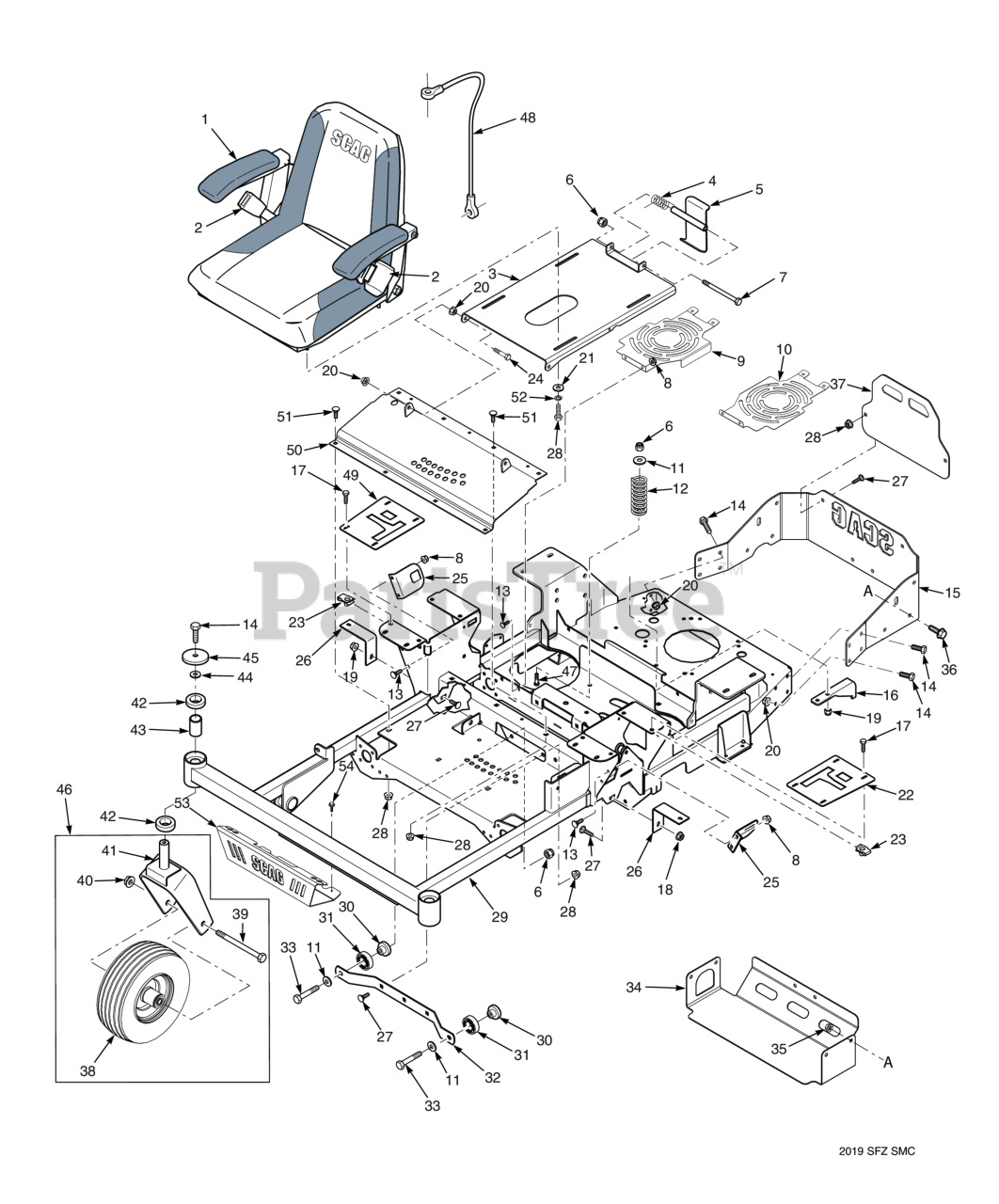

SHEET METAL COMPONENTS Parts Diagram

  • Title

1

Scag 486713

Seat Assembly

$628.99

$

Usually ships in 2-12 days

0

Scag 486773

Back Cushion

$213.99

$

Usually ships in 2-12 days

0

Scag 486774

Cover, Bottom Cushion

$156.99

$

Usually ships in 2-12 days

0

Scag 486776

Arm Rest Kit

$

$

Not available

Scag 486775

Cap, Actuator Switch

$17.99

$

Usually ships in 2-12 days

0

Scag 483473

Switch, Double Pole - Plunger

$17.99

$

In Stock, Qty 12

0

2

Scag 485164

Seat Belt Assembly, Retractable

$234.99

$

Usually ships in 2-12 days

0

Scag 461990

Hardware Package, Seat Belt Mounting

$29.99

$

Usually ships in 2-12 days

0

3

Scag 463296

Seat Base w/Decal

$125.99

$

Usually ships in 2-12 days

0

4

Scag 483371

Spring, Seat Latch

$7.99

$

Usually ships in 2-12 days

0

5

Scag 451883

Weldment, Seat Latch

$34.99

$

Usually ships in 2-12 days

0

6

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

7

Scag 04001-100

Bolt, 3/8-16 x 6.00" Hex Head

$6.49

$

Usually ships in 2-12 days

0

8

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

9

Scag 425698

Fan Cover, RH

$42.99

$

Usually ships in 2-12 days

0

10

Scag 425697

Fan Cover, LH

$42.99

$

In Stock, only 1 left!

0

11

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

12

Scag 483372

Spring, Seat

$13.99

$

Usually ships in 2-12 days

0

13

Scag 04003-07

Bolt, Carriage 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 9

0

14

Scag 04017-27

Capscrew, 3/8-16 x 1.0" Serrated Flange Hex Hd

$1.49

$

In Stock, Qty 20+

0

15

Scag 427870

Rear Bumper

$128.99

$

In Stock, only 1 left!

0

16

Scag 424523

Bracket, Anti-Rotation

$38.99

$

Usually ships in 2-12 days

0

Scag 425328

Bracket, Anti-Rotation

Note: Used on a limited production build of model SFZ52H-26KT in the following serial number range. R7700001 - R7700289

$56.99

$

Usually ships in 2-12 days

0

17

Scag 04017-06

CAP SCREW, 1/4-20 X 1" SERRATED FLANGE HEX

$0.99

$

Usually ships in 2-12 days

0

18

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

0

19

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

20

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

21

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

22

Scag 463170

Control Plate LH (Black)

$19.99

$

Usually ships in 2-12 days

0

23

Scag 04110-01

Bolt, Hex Head 3/8-16 x 1"

$1.49

$

In Stock, Qty 18

0

24

Scag 04001-20

Bolt, Hex Head, 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

25

Scag 424511

Bracket, Switch Mount

$6.99

$

Usually ships in 2-12 days

0

26

Scag 424516

Bracket, Tank Mount

$6.99

$

Usually ships in 2-12 days

0

27

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

28

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

29

Scag 463316

Main Frame w/Decals

$

$

Currently unavailable

30

Scag 43703

Spacer, Bearing

$11.99

$

Usually ships in 2-12 days

0

31

Scag 483379

Bearing

$5.99

$

In Stock, Qty 5

0

32

Scag 424480

Support, Deck Guide

$7.99

$

Usually ships in 2-12 days

0

33

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI)

$0.99

$

In Stock, Qty 20+

0

34

Scag 427871

Heatshield

$61.99

$

Usually ships in 2-12 days

0

35

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

36

Scag 04017-27

Capscrew, 3/8-16 x 1.0" Serrated Flange Hex Hd

$1.49

$

In Stock, Qty 20+

0

37

Scag 427862

Guard, Engine, (Scag Gold)

$30.99

$

In Stock, only 1 left!

0

38

Scag 486310

Caster Wheel Assembly (INCL. Rim - 486311)

$134.99

$

Usually ships in 2-12 days

0

Scag 485941

TIRE, 11 X 6.00-5

$55.99

$

Usually ships in 2-12 days

0

39

Scag 04001-134

Bolt, Hex Head 1/2-13 x 7-1/2" (48"/52")

$5.49

$

In Stock, Qty 20+

0

40

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

0

41

Scag 453010

Yoke, Caster Wheel

$

$

Not available

42

Scag 483466

Bearing

$8.99

$

In Stock, only 2 left!

0

Scag 424636

Spacer, Yoke

$4.49

$

Usually ships in 2-12 days

0

43

Scag 43736

Spacer, Caster Bearing

$6.49

$

In Stock, only 2 left!

0

44

Scag 04040-11

Flatwasher, 7/16" (.500 x 1.25 x .083")

$0.99

$

In Stock, Qty 13

0

45

Scag 04041-38

Flatwasher, 3/8-.406 x 2.25" x .1875

$3.49

$

In Stock, Qty 9

0

46

Scag 463018

Caster Wheel Assembly w/Yoke

$228.99

$

Usually ships in 2-12 days

0

47

Scag 04003-11

SHORT SQ. NECK CARRIAGE BOLT, 3/8-16 X 1-1/4"

$0.99

$

In Stock, Qty 7

0

48

Scag 483559

Cable, Seat Stop

$8.99

$

Usually ships in 2-12 days

0

49

Scag 463171

Control Plate RH (Black)

$19.99

$

Usually ships in 2-12 days

0

50

Scag 463136

Weldment, Deck Lift Cover w/Decal

$

$

Currently unavailable

51

Scag 04003-14

Carriage Bolt, 5/16-18 x 1/2"

$0.99

$

In Stock, Qty 8

0

52

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

53

Scag 427868

Bumper. Front

$42.99

$

Usually ships in 2-12 days

0

54

Scag 04011-29

Screw, 1/4-20 x .375"

$0.99

$

In Stock, Qty 5

0
