SFZ48H-24KT - Scag Freedom Z 48" Zero-Turn Mower, 24hp Kohler (SN: R7600001 - R7699999) ELECTRICAL SCHEMATIC Parts Diagram

Freedom Z 48" Zero-Turn Mower, 24hp Kohler

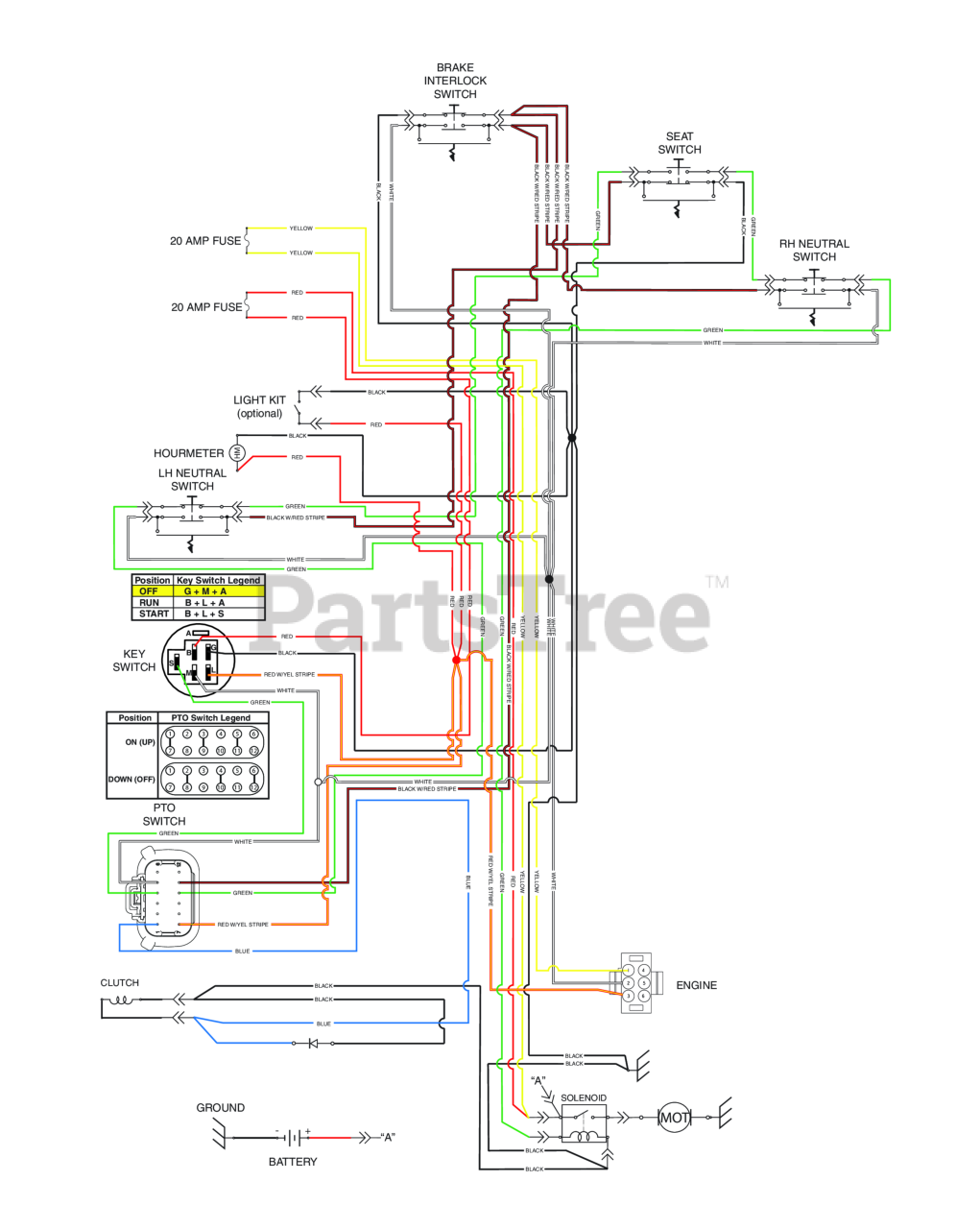

ELECTRICAL SCHEMATIC Parts Diagram

  • Title

No Part List Information Available

$

$

Not available
