SFZ48-600FS - Scag Freedom Z 48" Zero-Turn Mower, Kawasaki 600FS (SN: H4500400 - H4599999) SFZ48 Fuel System Parts Diagram

Freedom Z 48" Zero-Turn Mower, Kawasaki 600FS

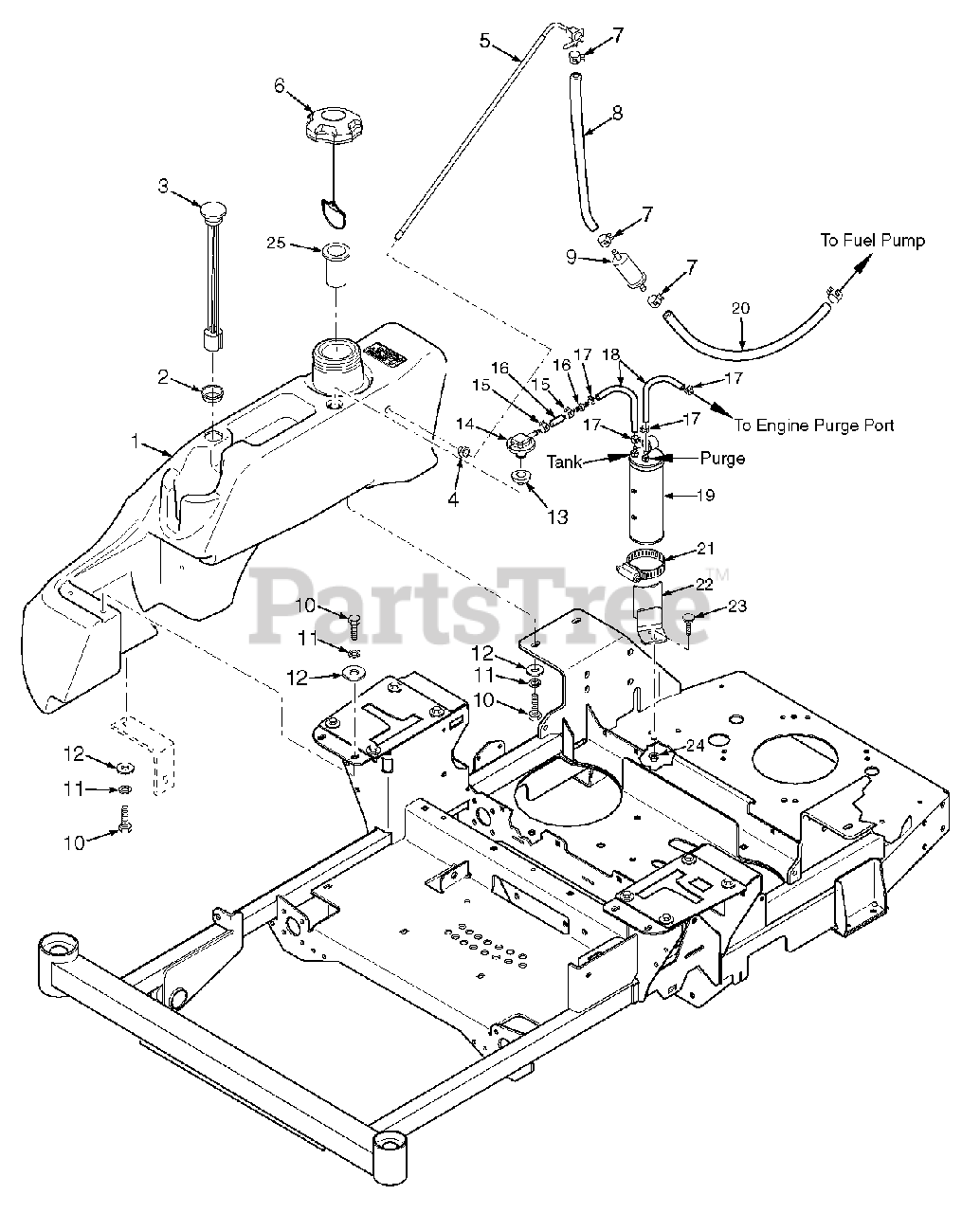

SFZ48 Fuel System Parts Diagram

  • Title

1

Scag 462379

Fuel Tank Assembly, SFZ - Low Perm
(Superseded to 462750)

$576.99

$

Usually ships in 2-12 days

0

2

Scag 483536

Grommet

$5.99

$

In Stock, Qty 8

0

3

Scag 484243

Fuel Gauge Assembly

$82.99

$

Usually ships in 2-12 days

0

4

Scag 482571

Bushing, .56 Dia. Viton

$12.99

$

In Stock, Qty 20+

0

5

Scag 483555

Fuel Tube Assembly

$57.99

$

Usually ships in 2-12 days

0

6

Scag 484286

Fuel Cap, Tethered

$54.99

$

In Stock, only 1 left!

0

6

Scag 484297

Fuel Cap w/Tethered - California Models Only

Note: (not shown)

$65.99

$

Usually ships in 2-12 days

0

7

Scag 48059-01

Clamp, Fuel Hose 1/4"

$0.99

$

In Stock, Qty 7

0

8

Scag 483617

Fuel Hose, 1/4" Non-Perm (order by inch)

$0.99

$

In Stock, Qty 20+

0

9

Fuel Filter

Note: Available through engine manufacturer only.

$

$

Not available

10

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

11

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0

12

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

13

Scag 484285

Grommet, Viton

$11.99

$

Usually ships in 2-12 days

0

14

Scag 484333

Remote Vent

$14.99

$

In Stock, only 1 left!

0

15

Scag 48059-02

Clamp, Fuel Hose 7/32"

$0.99

$

In Stock, Qty 19

0

16

Scag 484347

Hose, 1/4" Vapor Recovery (order by inch)

$0.99

$

In Stock, Qty 20+

0

17

Scag 48059-05

Clamp, Vapor Recovery Hose

$4.49

$

In Stock, only 3 left!

0

18

Scag 484345

Hose, 3/16" (order by inch)

$0.99

$

In Stock, Qty 20+

0

19

Scag 484342

Carbon Canister

$103.99

$

In Stock, only 1 left!

0

20

Fuel Hose

Note: Available through engine manufacturer only.

$

$

Not available

21

Scag 48136-17

Clamp, Hose

$7.49

$

Usually ships in 2-12 days

0

22

Scag 452226

Bracket Weldment, SFZ48/52

$22.99

$

Usually ships in 2-12 days

0

23

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

24

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

25

Scag 484279-01

Tube, Fuel Tank Insert

$4.49

$

In Stock, only 1 left!

0

26

Scag 484343-01

Mender, 1/4 x 3/16 w/0.02 Hole

$26.99

$

In Stock, Qty 5

0
