SFZ48-26BS - Scag Freedom Z 48" Zero-Turn Mower, 26hp Briggs & Stratton (SN: H4600400 - H4699999) Drive System Components - SFZ48 Parts Diagram

Freedom Z 48" Zero-Turn Mower, 26hp Briggs & Stratton

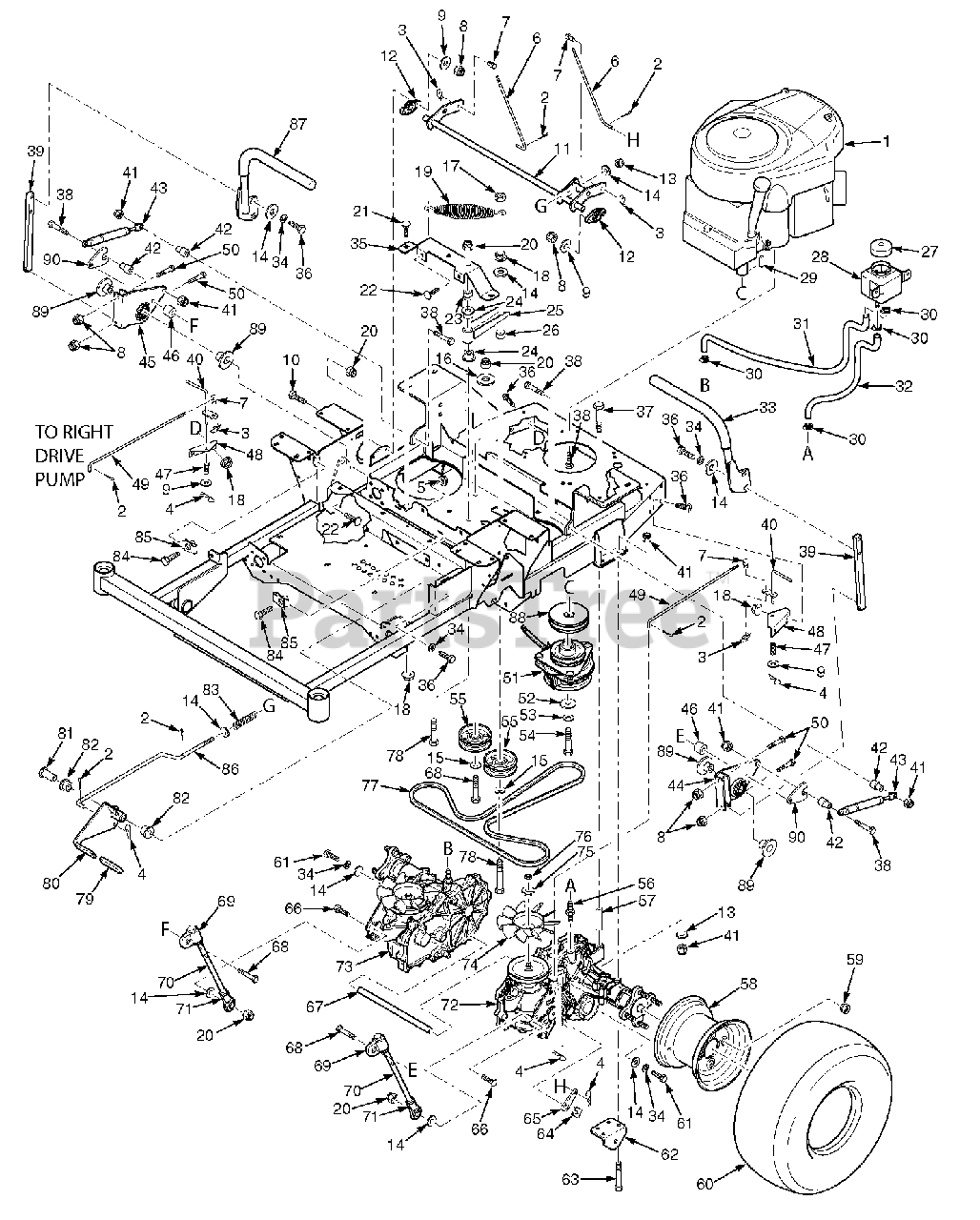

Drive System Components - SFZ48 Parts Diagram

  • Title

1

Scag 484223

Engine, Briggs & Stratton Pro-Series

$

$

Currently unavailable

1

Scag 484418

Engine, Kawasaki FS600V

$

$

Currently unavailable

2

Scag 04061-01

Cotter Pin, 3/32 x 1"

$0.99

$

In Stock, Qty 11

0

3

Scag 04069-01

Pin, Rue Cotter 3/8" Dia.

$1.49

$

In Stock, Qty 5

0

4

Scag 04062-02

Hair Pin, .080 x 1.19"

$0.99

$

In Stock, Qty 20+

0

5

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

6

Scag 44165

Rod, Brake Adjustment

$8.49

$

In Stock, only 2 left!

0

7

Scag 43726

Joint, Swivel

$13.99

$

Usually ships in 2-12 days

0

8

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

9

Scag 04040-14

Flatwasher, 1/4-.312 x .750 x .065

$0.99

$

In Stock, only 4 left!

0

10

Scag 04017-07

Bolt, Serrated Flange 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 10

0

11

Scag 451884

Weldment, Brake Lever

$75.99

$

Usually ships in 2-12 days

0

12

Scag 483504

Bearing

$17.99

$

Usually ships in 2-12 days

0

13

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

14

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

15

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105 HD

$0.99

$

In Stock, Qty 20+

0

16

Scag 04041-11

Flatwasher, 3/8-.406 x 1.5 x 7 GA.

$1.99

$

In Stock, Qty 5

0

17

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

18

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

19

Scag 483087

Spring, Transmission Idler

$56.99

$

In Stock, only 1 left!

0

20

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

21

Scag 04003-31

Bolt, Carriage 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 5

0

22

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

23

Scag 43715

Shaft Pivot, Idler Arm

$18.99

$

In Stock, only 1 left!

0

24

Scag 483453-04

Bearing

$4.49

$

In Stock, Qty 20+

0

25

Scag 462122

Transmission Idler Arm Assembly

$

$

Not available

26

Scag 43720

Spacer, Idler Pulley

$4.99

$

In Stock, only 1 left!

0

27

Scag 483514

Cap

$23.99

$

Usually ships in 2-12 days

0

28

Scag 483438

Reservoir Assembly

$38.99

$

Usually ships in 2-12 days

0

29

Scag 04063-31

Key, 1/4 x 1/4 x 1-3/4"

$1.49

$

In Stock, only 1 left!

0

30

Scag 48136-05

Clamp, 0.87" Max Dia.

$3.99

$

In Stock, only 2 left!

0

31

Scag 483431

Hose, RH Transmission

$27.99

$

Usually ships in 2-12 days

0

32

Scag 483432

Hose, LH Transmission

$27.99

$

Usually ships in 2-12 days

0

33

Scag 462433

Handle Bar Assembly LH, w/Grip

$73.99

$

Usually ships in 2-12 days

0

33

Scag 484376

Grip

$11.99

$

Usually ships in 2-12 days

0

34

Scag 04030-04

Lockwasher, 3/8" Spring

$0.99

$

In Stock, Qty 8

0

35

Scag 424476

Support, Idler Arm

$17.99

$

Usually ships in 2-12 days

0

36

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 7

0

37

Scag 04001-95

Bolt, Hex Head 5/16-18 x 5"

$2.49

$

In Stock, Qty 6

0

38

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 6

0

39

Scag 424498

Bar, Control Lever

$31.99

$

Usually ships in 2-12 days

0

40

Scag 451912

Dump Valve Lever

$14.99

$

Usually ships in 2-12 days

0

41

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

42

Scag 43602

Spacer, Pump Dampener

$3.49

$

In Stock, only 1 left!

0

43

Scag 482794

Dampener
(Superseded to 484193)

$74.99

$

In Stock, only 2 left!

0

44

Scag 462127

Control Link, LH

$76.99

$

Usually ships in 2-12 days

0

45

Scag 462128

Control Link, RH

$90.99

$

Usually ships in 2-12 days

0

46

Scag 43674

Spacer

$2.49

$

In Stock, only 2 left!

0

47

Scag 482070

Spring

$6.99

$

Usually ships in 2-12 days

0

48

Scag 424639

Bracket, Dump Mounting

$4.49

$

Usually ships in 2-12 days

0

49

Scag 44162

Linkage, Dump Valve

$8.99

$

Usually ships in 2-12 days

0

50

Scag 04001-04

Bolt, Hex Head 1/4-20 x 1-1/2"

$0.99

$

In Stock, Qty 14

0

51

Scag 462012

Electric Clutch Assembly
(Superseded to 462610)

$316.99

$

In Stock, only 1 left!

0

52

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25

$2.99

$

In Stock, Qty 13

0

53

Scag 04030-05

Lockwasher, 7/16" spring

$0.99

$

In Stock, Qty 8

0

54

Scag 04102-03

Bolt, Hex Head 7/16-20 x 2-1/4" Patch

$2.49

$

In Stock, Qty 13

0

55

Scag 483638

Pulley, 3-1/2" Dia.
(Superseded to 486045)

$21.99

$

In Stock, Qty 20+

0

56

Scag 482800-04

Fitting, Transmission

$11.99

$

Usually ships in 2-12 days

0

57

Scag 43700

Spacer, Axle

$7.99

$

Usually ships in 2-12 days

0

58

Scag 481868

Rim w/Valve Stem

$189.99

$

Usually ships in 2-12 days

0

59

Scag 04028-02

Wheel Nut, 1/2-20

$1.99

$

In Stock, Qty 20+

0

60

Scag 483390

Wheel Assembly

$243.99

$

Usually ships in 2-12 days

0

60

Scag 483389

Tire, 20 x 10-8 2-Ply

$192.99

$

Usually ships in 2-12 days

0

61

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

62

Scag 424489

Bracket, Pusharm Link

$11.99

$

Usually ships in 2-12 days

0

63

Scag 04001-49

Bolt, Hex Head 5/16-18 x 3"

$0.99

$

In Stock, Qty 9

0

64

Scag HG51190

Clip, Brake Lever (order through Hydro-Gear)

$

$

Currently unavailable

65

Scag HG52639

Lever, Brake (order through Hydro-Gear)

$

$

Currently unavailable

66

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 14

0

67

Scag 43701

Spacer, Axle

$26.99

$

Usually ships in 2-12 days

0

68

Scag 04001-45

Bolt, Hex Head 3/8-16 x 2"

$0.99

$

In Stock, Qty 9

0

69

Scag 483563

Rod End, Adjustable

$36.99

$

Usually ships in 2-12 days

0

69

Scag 04020-25

Nut, Jam 3/8-24 UNF RH

$0.99

$

In Stock, only 2 left!

0

70

Scag 483574

Linkage, Pump

$69.99

$

Usually ships in 2-12 days

0

71

Scag 483575

Stake, Rod End Assembly

$29.99

$

Usually ships in 2-12 days

0

72

Scag 484449

Transaxle Assy., (ZL-KCEF-3LKG-1NXX)

$1786.99

$

Usually ships in 2-12 days

0

73

Scag 484450

Transaxle Assy., (ZL-GCEF-3LKF-1NXX)

$1782.99

$

Usually ships in 2-12 days

0

74

Scag HG53823

Fan (order through Hydro-Gear)

$33.99

$

In Stock, only 1 left!

0

75

Scag 424687

Nut, Control Linkage

$5.99

$

Usually ships in 2-12 days

0

76

Scag HG44133

Fan Nut (order through Hydro-Gear)

$

$

Currently unavailable

77

Scag 483314

Belt, Transmission Drive

$47.99

$

In Stock, Qty 18

0

78

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3"

$1.49

$

In Stock, Qty 10

0

79

Scag 482102

Grip, Brake Handle

$3.99

$

In Stock, only 1 left!

0

80

Scag 462010

Brake Handle Assembly

$64.99

$

Usually ships in 2-12 days

0

81

Scag 43722

Spacer, Brake Handle

$20.99

$

Usually ships in 2-12 days

0

82

Scag 483453-05

Bearing

$2.49

$

Usually ships in 2-12 days

0

83

Scag 483538

Spring, Brake

$13.99

$

Usually ships in 2-12 days

0

84

Scag 04107-01

Bolt, Hex Head 3/8-16 x 1-1/4" Special Lock
(Superseded to 04107-03)

$1.49

$

In Stock, Qty 5

0

85

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

86

Scag 44157

Rod, Brake Linkage

$22.99

$

Usually ships in 2-12 days

0

87

Scag 462434

Handle Bar Assembly RH, w/Grip

$84.99

$

Usually ships in 2-12 days

0

87

Scag 484376

Grip

$11.99

$

Usually ships in 2-12 days

0

88

Scag 483320

Pulley, 4-1/2" Dia. 1" Bore
(Superseded to 486010)

$28.99

$

In Stock, only 2 left!

0

89

Scag 43719

Spacer, Linkage

$1.49

$

Usually ships in 2-12 days

0
