SFZ48-26BS - Scag Freedom Z 48" Zero-Turn Mower, 26hp Briggs & Stratton (SN: D8500001 - D8500300) Hydraulic Axle Assembly Parts Diagram

Freedom Z 48" Zero-Turn Mower, 26hp Briggs & Stratton

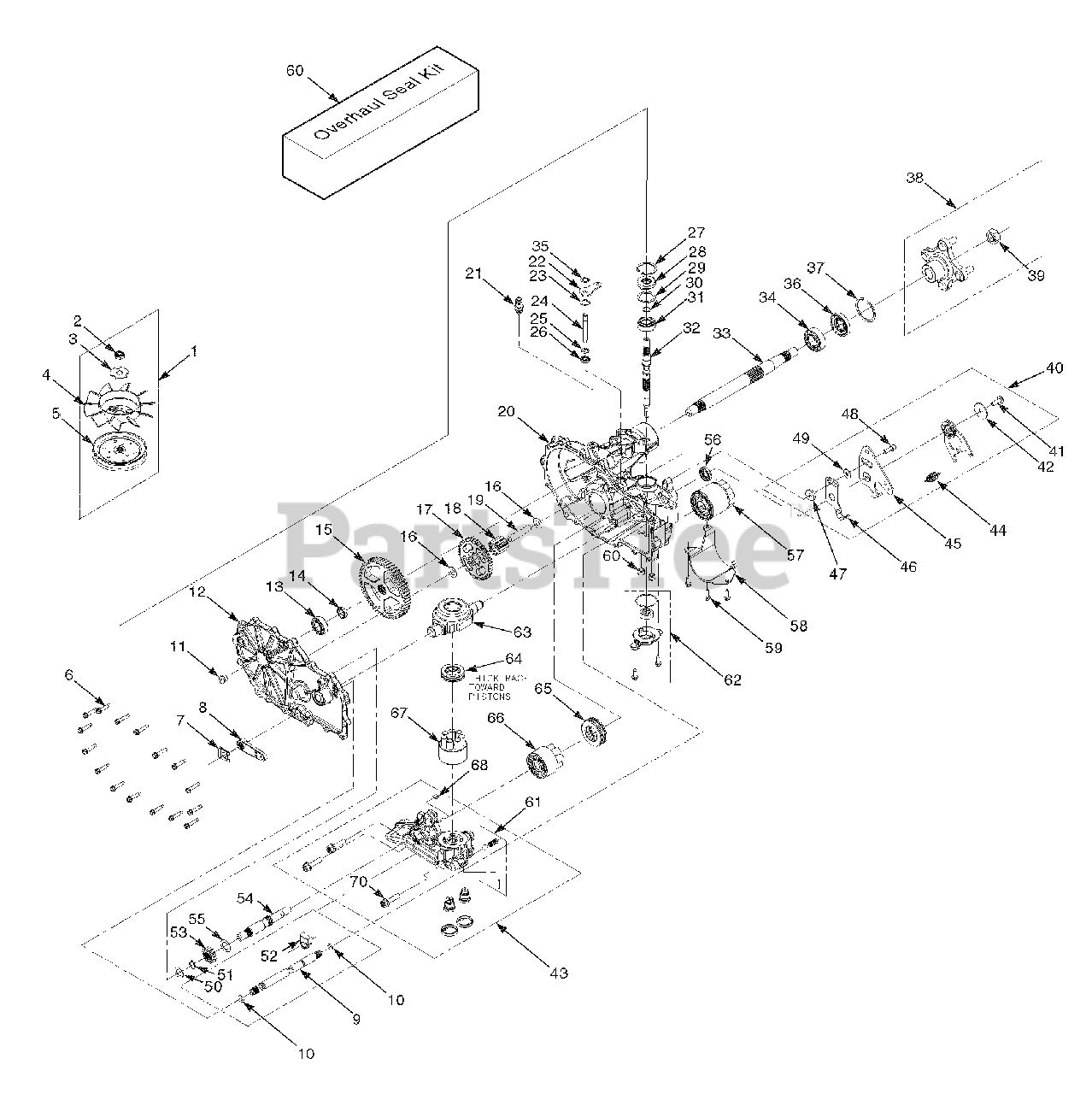

Hydraulic Axle Assembly Parts Diagram

  • Title

1

Scag HG70489

Kit, Fan & Pulley

$

$

Not available

2

Scag HG51244

Nut, Hex Locking 1/2-20

$

$

Currently unavailable

3

Scag HG51523

Washer, Slotted

$

$

Currently unavailable

4

Scag HG51862

Fan, 7" Dia.
(Superseded to HG72125)

Note: (10 Blade)

$68.99

$

Usually ships in 2-12 days

0

5

Scag HG52364

Pulley, Cupped 4-1/2" Dia.

$

$

Currently unavailable

Scag HG52366

Hub, Pulley

$

$

Currently unavailable

6

Scag HG51190

Bolt, Hex Head 1/4-20 x 1-1/4"

$

$

Currently unavailable

7

Scag HG52027

Clip, Retaining

$

$

Currently unavailable

8

Scag HG52639

Handle, Brake

$

$

Currently unavailable

9

Scag HG52640

Shaft, Brake

$

$

Currently unavailable

10

Scag HG51804

O-Ring

$

$

Currently unavailable

11

Scag HG9005110-5600

Plug, 9/16-18

$

$

Currently unavailable

12

Scag HG71572

Kit, Side Cover RH

$

$

Currently unavailable

Scag HG71574

Kit, Side Cover LH

$

$

Currently unavailable

13

Scag HG44121

Bearing, Ball .75 x 40 x 12

$

$

Currently unavailable

14

Scag HG52161

Spacer, .75 x 1.0 x .257

$

$

Currently unavailable

15

Scag HG52108

Gear, 54T

$

$

Currently unavailable

16

Scag HG50132

Washer, .5 x 1.0 x .03

$

$

Currently unavailable

17

Scag HG52110

Gear, 45T

$

$

Currently unavailable

18

Scag HG52586

Gear, 11T Steel

$

$

Currently unavailable

19

Scag HG51083

Jackshaft Pin

$

$

Currently unavailable

20

Scag HG71413

Kit, Housing RH

$248.99

$

Usually ships in 2-12 days

0

Scag HG71421

Kit, Housing LH

$269.99

$

In Stock, only 1 left!

0

21

Scag 482800-03

Fitting

$16.99

$

Usually ships in 2-12 days

0

22

Scag HG51329

Arm, Bypass

$

$

Currently unavailable

23

Scag HG51627

Ring, Retaining .750 Internal

$

$

Currently unavailable

24

Scag HG52136

Rod, Bypass

$

$

Currently unavailable

25

Scag HG51628

Ring, Retaining .375 External

$

$

Currently unavailable

26

Scag HG51626

Seal, Lip .375 x .75 x .25

$

$

Currently unavailable

27

Scag HG50329

Ring, Retaining 2.06 Internal

$5.49

$

Usually ships in 2-12 days

0

28

Scag HG51161

Seal, Lip 17 x 40 x 7

$9.99

$

Usually ships in 2-12 days

0

29

Scag HG50951

Washer, 1.23 x 1.56 x .04

$3.99

$

Usually ships in 2-12 days

0

30

Scag HG2000022

Ring, Retaining Wire

$

$

Currently unavailable

31

Scag HG50315

Bearing, Ball 17 x 40 x 12 Open
(Superseded to 483948)

$24.99

$

In Stock, only 1 left!

0

32

Scag HG52155

Shaft, Input
(Superseded to 462182)

$322.99

$

Usually ships in 2-12 days

0

33

Scag HG71569

Shaft Kit, Axle

$

$

Currently unavailable

34

Scag HG50771

Bearing, Ball 1.0 x 52 x 15 Open

$

$

Currently unavailable

35

Scag HG51630

Ring, Retaining .375 External

$

$

Currently unavailable

36

Scag HG50772

Seal, Lip 25 x 52 x 10 TC Gray

$

$

Currently unavailable

37

Scag HG50859

Ring, Retaining 2.06 Internal

$

$

Currently unavailable

38

Scag HG71405

Kit, Hub

$88.99

$

Usually ships in 2-12 days

0

Scag HG71241

Hub, Puller

Note: (not shown)

$

$

Currently unavailable

39

Scag HG50863

Nut, Hex Locking 3/4-16

$

$

Currently unavailable

40

Scag HG71595

Kit, RTN Assembly

$

$

Currently unavailable

41

Scag HG51812

Bolt, 5/16-24 x 1" Patch

$

$

Currently unavailable

42

Scag HG51950

Washer, .343 x 1.5 x .062

$

$

Currently unavailable

43

Scag HG71565

Kit, Center Section RH

$

$

Currently unavailable

Scag HG71566

Kit, Center Section LH

$

$

Currently unavailable

44

Scag HG51605

Spring

$

$

Currently unavailable

45

Scag HG52682

Arm, Control

$

$

Currently unavailable

46

Scag HG51945

Arm, Neutral RH

$

$

Currently unavailable

Scag HG51946

Arm, Neutral LH

$

$

Currently unavailable

47

Scag HG52527

Spacer, .320 x 1.005 x .179

$

$

Currently unavailable

48

Scag HG51616

Bolt, 5/16-24 x 1" Patch

$

$

Currently unavailable

49

Scag HG44130

Washer, .34 x .88 x .06

$

$

Not available

50

Scag HG44371

Washer, .63 x 1.0 x .05

$1.99

$

Usually ships in 2-12 days

0

51

Scag HG44145

Ring, Retaining

$

$

Currently unavailable

52

Scag HG52641

Pawl, Brake

$

$

Currently unavailable

53

Scag HG52341

Gear, 14T Steel

$

$

Currently unavailable

54

Scag HG52150

Shaft, Motor

$

$

Currently unavailable

55

Scag HG51069

Washer, .72 x 1.16 x .04

$

$

Currently unavailable

56

Scag HG51140

Seal, Lip 18 x 32 x 7

$

$

Currently unavailable

57

Scag HG52114

Filter

$24.99

$

Usually ships in 2-12 days

0

58

Scag HG52257

Filter Guard
(Superseded to HG53655)

$33.99

$

Usually ships in 2-12 days

0

59

Scag HG50752

Bolt, 1/4-20 x 3/4"

$

$

Currently unavailable

60

Scag HG71410

Seal Kit
(Superseded to HG73107)

$120.99

$

Usually ships in 2-12 days

0

61

Scag HG71436

Kit, Charge Relief

$

$

Currently unavailable

62

Scag HG71411

Kit, Charge Pump
(Superseded to HG72274)

$114.99

$

Usually ships in 2-12 days

0

63

Scag HG51048

Trunnion Swashplate

$

$

Currently unavailable

64

Scag HG50551

Thrust Bearing

$24.99

$

Usually ships in 2-12 days

0

65

Scag HG51462

Thrust Bearing

$40.99

$

Usually ships in 2-12 days

0

66

Scag HG71579

Kit, Motor Cylinder Block

$

$

Currently unavailable

67

Scag HG70723

Kit, Cylinder Block

$

$

Currently unavailable

68

Scag HG71448

Plate, Bypass

$

$

Currently unavailable

69

Scag HG71436

Kit, Charge Relief

$

$

Currently unavailable

70

Scag HG52137

Bolt, Hex Head 3/8-16 x 1-1/2" Patch

$

$

Currently unavailable
