SFZ48-22KT - Scag Freedom Z 48" Zero-Turn Mower, 22hp Kohler (SN: R3300001 - R3399999) SFZ ROLL-OVER PROTECTION SYSTEM Parts Diagram

Freedom Z 48" Zero-Turn Mower, 22hp Kohler

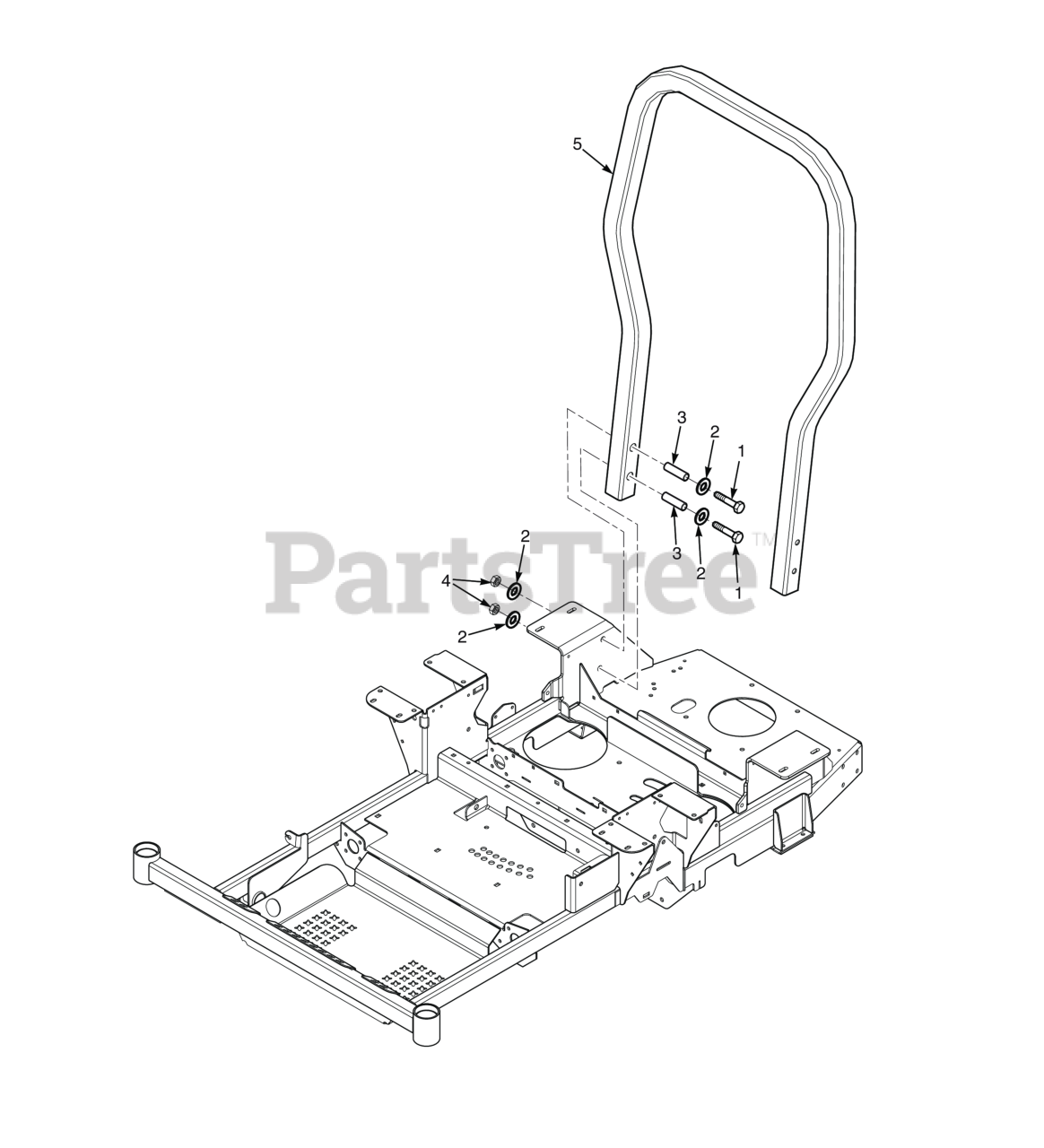

SFZ ROLL-OVER PROTECTION SYSTEM Parts Diagram

  • Title
1

Scag 04001-184

Bolt, Hex Head 1/2-13 x 3-1/4" Gr. 8

$2.99

$

In Stock, Qty 6

0

2

Scag 04040-07

Flatwasher, 1/2 - .531 x 1.062 x .095

$0.99

$

In Stock, Qty 5

0

3

Scag 43743

Bushing, SFZ ROPS

$6.49

$

Usually ships in 2-12 days

0

4

Scag 04021-19

Locknut, Hex 1/2-13 Center Lock

$0.99

$

In Stock, Qty 5

0

5

Scag 463113

ROPS, SFZ48, SFZ52

$

$

Not available
