SFZ48-22KT - Scag Freedom Z 48" Zero-Turn Mower, 22hp Kohler (SN: R3300001 - R3399999) 48 & 52 CUTTER DECKS Parts Diagram

Freedom Z 48" Zero-Turn Mower, 22hp Kohler

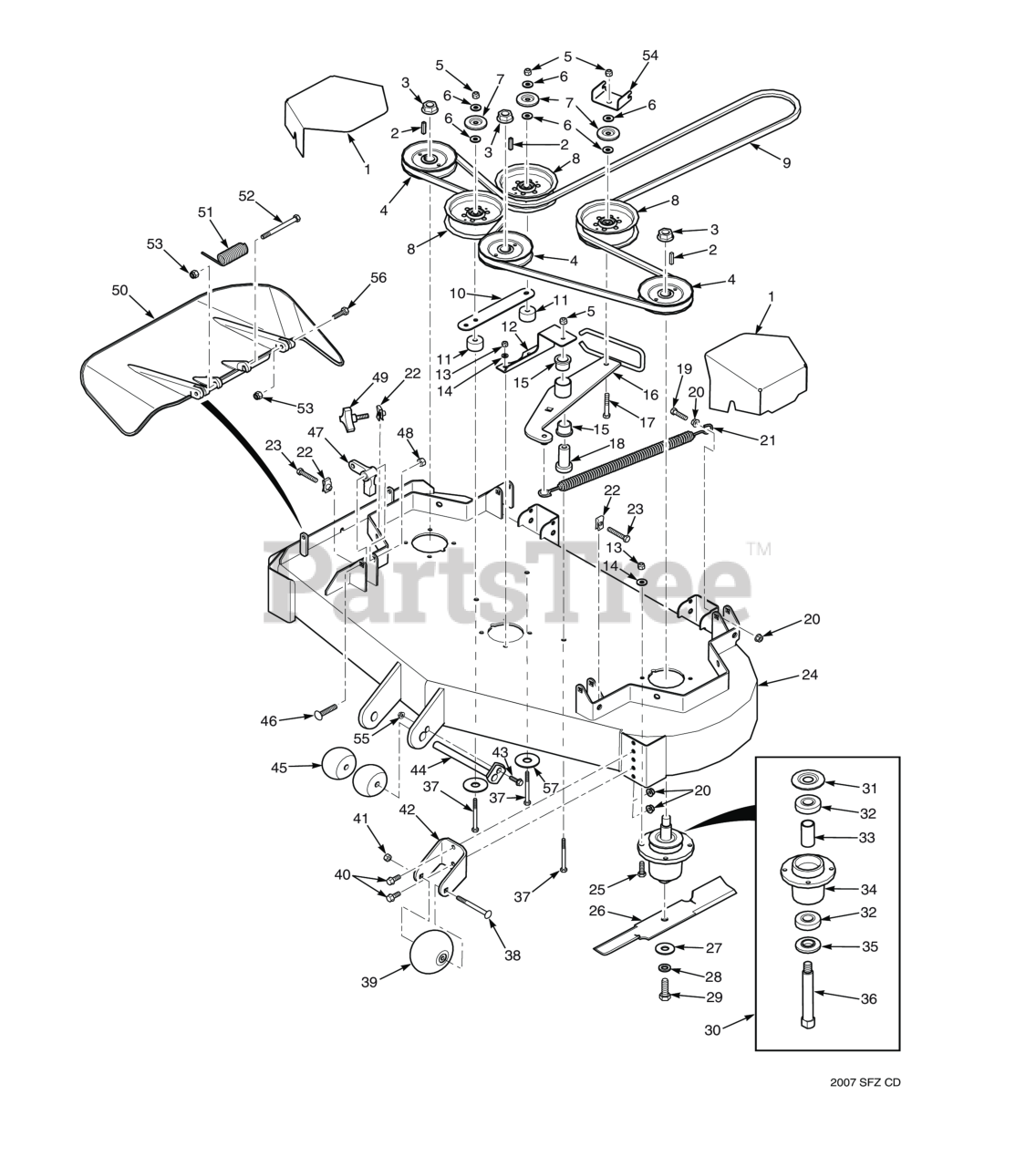

48 & 52 CUTTER DECKS Parts Diagram

  • Title

1

Scag 424528

Belt Cover

$27.99

$

In Stock, only 1 left!

0

2

Scag 04063-01

Key, 1/4 x 1/4 x 1.25" Pulley Mtg.

$1.49

$

In Stock, only 4 left!

0

3

Scag 04112-06

Nut, 3/4-16 Spriral Lock

$11.99

$

In Stock, Qty 5

0

4

Scag 483323

Pulley, 5.13" OD - 25mm Bore

$32.99

$

In Stock, only 2 left!

0

5

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

6

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

0

7

Scag 424367

Quick Pin, 5/16" Dia.

$2.49

$

In Stock, only 2 left!

0

8

Scag 483422

Pulley, 5" Idler

$20.99

$

In Stock, Qty 11

0

9

Scag 483325

Belt, Cutter Deck

$85.99

$

In Stock, only 1 left!

0

10

Scag 424479

Brace, Pulley

$5.49

$

Usually ships in 2-12 days

0

11

Scag 43711

Spacer, Idler Pulley

$6.49

$

Usually ships in 2-12 days

0

12

Scag 424548

Support, Idler Pivot - 48

$16.99

$

In Stock, only 1 left!

0

13

Scag 04021-22

Lock Nut, 5/16-18 Elastic Stop Grade 8

$0.99

$

In Stock, Qty 20+

0

14

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

15

Scag 483453-03

Bearing, Plastic

$7.99

$

In Stock, only 2 left!

0

16

Scag 462037

Idler Arm (incl. item #15)

$75.99

$

In Stock, only 1 left!

0

17

Scag 04001-31

Capscrew, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

18

Scag 43708

Pivot, Idler

$31.99

$

In Stock, only 1 left!

0

19

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black

$0.99

$

In Stock, Qty 20+

0

20

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

21

Scag 483375

Spring, Cutter Deck Idler

$85.99

$

In Stock, only 1 left!

0

22

Scag 04110-03

U-Nut, 3/8-16 (short)

$2.49

$

In Stock, Qty 20+

0

23

Scag 04107-04

Bolt, Hex Head 3/8-16 x 2" Special Lock

$1.49

$

In Stock, Qty 8

0

24

Scag 463100

Cutter Deck w/Decals, SFZ48
(Superseded to 463307)

$954.99

$

Usually ships in 2-12 days

0

25

Scag 4001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

$

$

Currently unavailable

26

Scag 482877

Cutter Blade, 16-1/2" (48V)

$22.99

$

In Stock, Qty 20+

0

27

Scag 04043-06

Flatwasher, 5/8-.688 x 1-3/4 x .134 HD

$1.99

$

In Stock, Qty 20+

0

28

Scag 04030-07

Lockwasher, 5/8" Spring

$0.99

$

In Stock, Qty 19

0

29

Scag 04001-121

Bolt, Hex Head 5/8-11 x 1-1/2"

$1.99

$

In Stock, Qty 20+

0

30

Scag 461950

Spindle Assembly

$137.99

$

In Stock, only 1 left!

0

31

Scag 483304

Debris Shield

$6.49

$

In Stock, only 1 left!

0

32

Scag 483303

Bearing

$13.99

$

In Stock, Qty 17

0

33

Scag 43693

Spacer, Bearing

$22.99

$

Usually ships in 2-12 days

0

34

Scag 462014

Spindle Housing Assembly

$129.99

$

In Stock, only 1 left!

0

35

Scag 43694

Protector, Bearing

$28.99

$

In Stock, only 1 left!

0

36

Scag 43695

Shaft, Spindle

$49.99

$

In Stock, only 1 left!

0

37

Scag 04001-77

Bolt, Hex Head, 3/8-16 x 3-1/2"

$1.49

$

In Stock, Qty 7

0

38

Scag 04003-26

Bolt, Hex Head 3/8-16 x 3-1/2"

$1.99

$

In Stock, Qty 20+

0

39

Scag 481632

Bolt, Carriage 3/8-16 x 4"

$21.99

$

In Stock, Qty 20+

0

40

Scag 04017-27

Capscrew, 3/8-16 x 1.0" Serrated Flange Hex Hd

$1.49

$

In Stock, Qty 20+

0

41

Scag 04021-05

Bolt, Hex Head 3/8-16 x 1" Ser. Flg.

$0.99

$

In Stock, Qty 20+

0

42

Scag 427865

Bracket, Anti-Scalp, (Black)

$20.99

$

In Stock, only 1 left!

0

43

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

44

Scag 451926

Shaft Weldment, Guide Roller

$25.99

$

In Stock, only 1 left!

0

45

Scag 482295

Wheel, Anti-Scalp

$9.99

$

In Stock, Qty 20+

0

46

Scag 04003-42

Bolt, Carriage 7/16-14 x 2-1/4"

$2.49

$

In Stock, only 3 left!

0

47

Scag 483361

Bolt, Carriage 7/16-14 x 2-1/4"

$21.99

$

In Stock, only 1 left!

0

48

Scag 04021-11

HEX LOCKNUT, ELASTIC STOP, 7/16-14

$0.99

$

In Stock, Qty 10

0

49

Scag 481625-01

Knob, w/stud 3/8-16 x 1-1/4"

$2.99

$

In Stock, Qty 20+

0

50

Scag 462031

Discharge Chute Assy. SFZ48

$65.99

$

In Stock, only 1 left!

0

51

Scag 482245

Spring, Discharge Chute

$10.99

$

In Stock, Qty 5

0

52

Scag 04001-154

Bolt, 5/16-18 x 4-3/4" Hex Head

$2.99

$

In Stock, Qty 20+

0

53

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

54

Scag 424615

Bracket, Belt Guide

$5.49

$

Usually ships in 2-12 days

0

55

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

56

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-1/2" - Front

$0.99

$

In Stock, Qty 20+

0

57

Scag 04041-38

Flatwasher, 3/8-.406 x 2.25" x .1875

$3.49

$

In Stock, Qty 8

0
