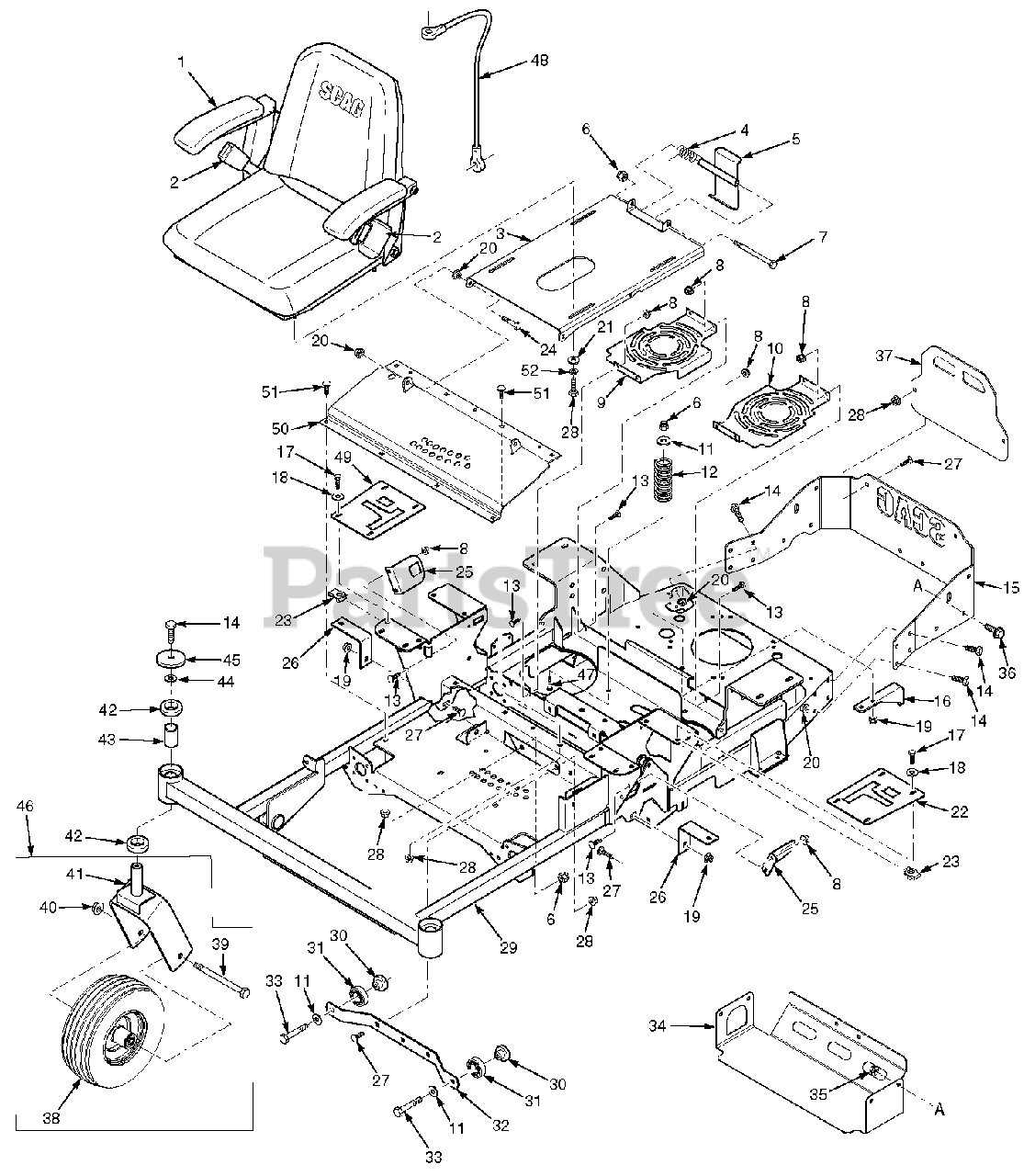

SFZ48-21FR - Scag Freedom Z 48" Zero-Turn Mower, 21hp Kawasaki (SN: K5000400 - K5099999) Sheet Metal Components Parts Diagram

Freedom Z 48" Zero-Turn Mower, 21hp Kawasaki

Sheet Metal Components Parts Diagram

  • Title

1

Scag 485211

Seat Assembly
(Superseded to 486056)

$

$

Not available

1

Scag 485162

Back Cushion

$170.99

$

Usually ships in 2-12 days

0

1

Scag 485163

Bottom Cushion

$267.99

$

Usually ships in 2-12 days

0

1

Scag 483549

Arm Rest Kit

$153.99

$

Usually ships in 2-12 days

0

1

Scag 485239

Seat Pan
(Superseded to 485992)

$170.99

$

Usually ships in 2-12 days

0

2

Scag 485164

Seat Belt Assembly, Retractable

$228.99

$

Usually ships in 2-12 days

0

2

Scag 461990

Hardware Package, Mounting

$28.99

$

Usually ships in 2-12 days

0

3

Scag 462707

Seat Base w/Decal

$117.99

$

Usually ships in 2-12 days

0

4

Scag 483371

Spring, Seat Latch

$7.99

$

Usually ships in 2-12 days

0

5

Scag 451883

Seat Latch

$33.99

$

Usually ships in 2-12 days

0

6

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

7

Scag 04001-100

Bolt, Hex Head 3/8-16 x 6"

$5.99

$

Usually ships in 2-12 days

0

8

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

9

Scag 424585

Cover, Fan RH
(Superseded to 425698)

$41.99

$

Usually ships in 2-12 days

0

10

Scag 424550

Cover, Fan LH
(Superseded to 425697)

$41.99

$

In Stock, only 1 left!

0

11

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

12

Scag 483372

Spring, Seat

$12.99

$

Usually ships in 2-12 days

0

13

Scag 04003-07

Bolt, Carriage 1/4-20 x 1"

$0.99

$

In Stock, Qty 9

0

14

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 6

0

15

Scag 426043

Rear Bumper

$129.99

$

Usually ships in 2-12 days

0

16

Scag 424523

Bracket, Anti-Rotation

$37.99

$

Usually ships in 2-12 days

0

17

Scag 04001-14

Bolt, Hex Head 1/4-20 x 1"

$0.99

$

In Stock, Qty 15

0

18

Scag 04040-14

Flatwasher, 1/4-.312 x .750 x .065

$0.99

$

In Stock, only 4 left!

0

19

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

20

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

21

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

22

Scag 462023

Control Plate LH

$45.99

$

Usually ships in 2-12 days

0

23

Scag 04110-01

U-Nut 1/4-20

$1.49

$

In Stock, Qty 18

0

24

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

25

Scag 424511

Bracket, Switch Mount

$6.99

$

Usually ships in 2-12 days

0

26

Scag 424516

Bracket, Tank Mount

$6.99

$

Usually ships in 2-12 days

0

27

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

28

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

29

Scag 462708

Main Frame w/Decals

$

$

Not available

30

Scag 43703

Spacer, Bearing

$11.99

$

Usually ships in 2-12 days

0

31

Scag 483379

Bearing

$5.49

$

In Stock, Qty 7

0

32

Scag 424480

Support, Deck Guide

$7.99

$

Usually ships in 2-12 days

0

33

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

34

Scag 426044

Heatshield

$62.99

$

Usually ships in 2-12 days

0

35

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

36

Scag 04017-26

Bolt, Hex Head Serrated Flange 3/8-16 x 3/4"

$1.49

$

Usually ships in 2-12 days

0

37

Scag 426053

Engine Guard

$29.99

$

Usually ships in 2-12 days

0

38

Scag 485207

Caster Wheel Assembly

$94.99

$

In Stock, only 1 left!

0

39

Scag 04001-80

Bolt, Hex Head 1/2-13 x 6-1/2"

$5.99

$

In Stock, Qty 20+

0

40

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

41

Scag 451845

Yoke, Caster Wheel

$102.99

$

Usually ships in 2-12 days

0

42

Scag 483466

Bearing

$8.99

$

Usually ships in 2-12 days

0

42

Scag 424636

Spacer, Yoke

Note: (Not Shown)

$4.49

$

Usually ships in 2-12 days

0

43

Scag 43736

Spacer, Caster Bearing

$6.49

$

In Stock, only 2 left!

0

44

Scag 04040-11

Flatwasher, 7/16-.50 x 1.250 x .083

$0.99

$

In Stock, Qty 13

0

45

Scag 04041-38

Flatwasher, 3/8-.406 x 2.25 x .188

$3.49

$

In Stock, Qty 8

0

46

Scag 462716

Caster Wheel Assembly w/Yoke

$176.99

$

Usually ships in 2-12 days

0

47

Scag 04003-11

Bolt, Carriage 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 7

0

48

Scag 483559

Cable, Seat Stop

$8.99

$

Usually ships in 2-12 days

0

49

Scag 462024

Control Plate RH

$45.99

$

Usually ships in 2-12 days

0

50

Scag 462706

Weldment, Deck Lift Cover w/Decal
(Superseded to 462760)

$122.99

$

Usually ships in 2-12 days

0

51

Scag 04003-14

Bolt, Carriage 5/16-18 x 1/2'

$0.99

$

In Stock, Qty 8

0

52

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0
