SFZ36-18FS - Scag Freedom Z 36" Zero-Turn Mower, 18hp Kawasaki (SN: F3100001 - F3199999) Cutter Deck Controls - SFZ36 Parts Diagram

Freedom Z 36" Zero-Turn Mower, 18hp Kawasaki

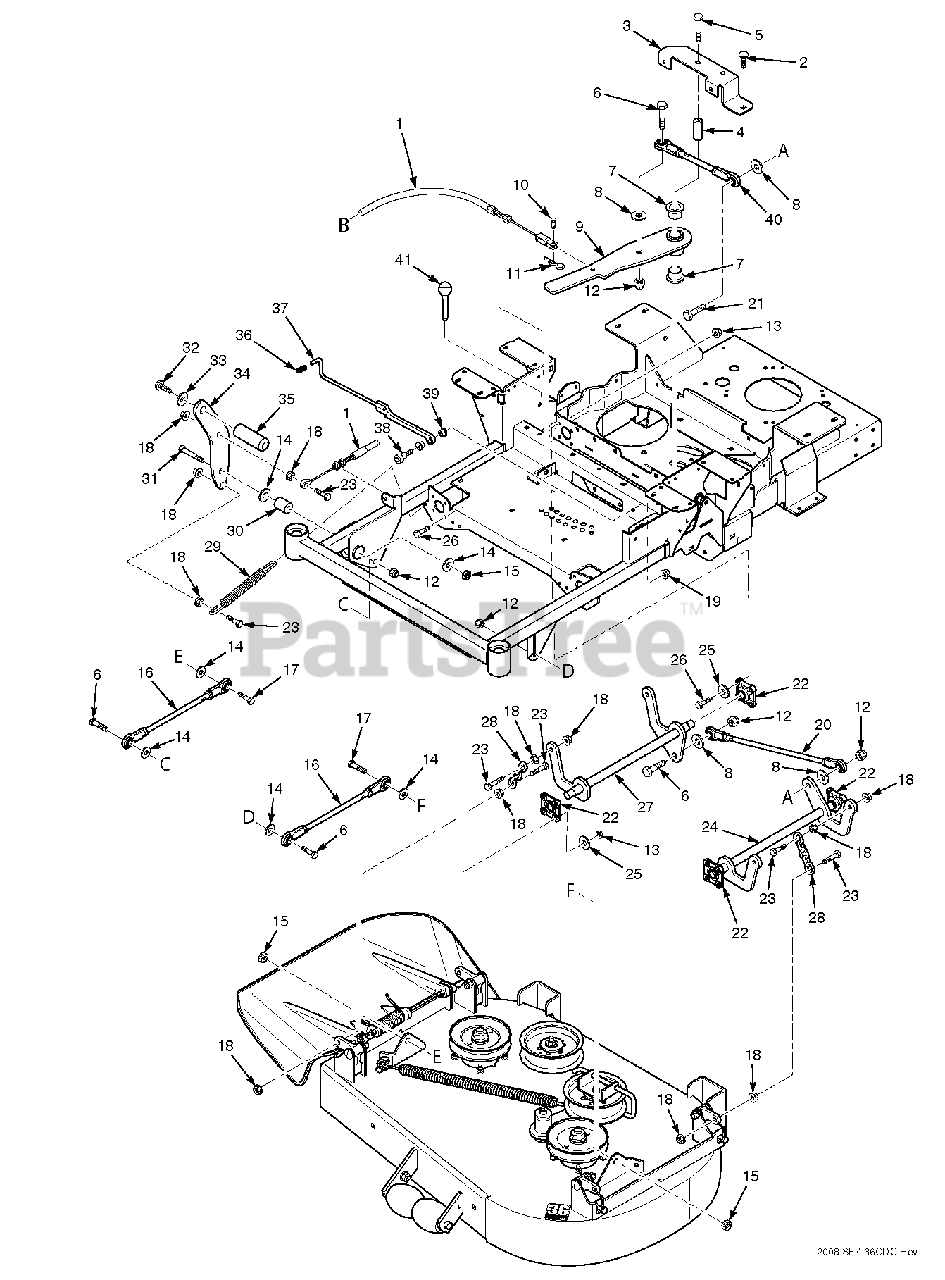

Cutter Deck Controls - SFZ36 Parts Diagram

  • Title

1

Scag 483341

Cable, Deck Lift

$75.99

$

Usually ships in 2-12 days

0

2

Scag 04003-31

Bolt, Carriage 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 5

0

3

Scag 424827

Support, Idler Arm

$20.99

$

Usually ships in 2-12 days

0

4

Scag 43710

Spacer, Deck Lift Pivot

$18.99

$

In Stock, only 2 left!

0

5

Scag 04001-90

Bolt, Hex Head 1/2-13 x 3-3/4"

$2.99

$

Usually ships in 2-12 days

0

6

Scag 04001-183

Bolt, Hex Head 1/2-13 x 1-3/4"

$1.49

$

In Stock, only 4 left!

0

7

Scag 483453-03

Bearing

$7.99

$

Usually ships in 2-12 days

0

8

Scag 04040-07

Flatwasher, 1/2-.531 x 1.06 x .095

$0.99

$

In Stock, Qty 5

0

9

Scag 461999

Deck Lift Bellcrank Assembly
(Superseded to 462215)

$68.99

$

Usually ships in 2-12 days

0

10

Scag 04064-17

Clevis Pin, 5/16 x 3/4"

$0.99

$

Usually ships in 2-12 days

0

11

Scag 04062-01

Hair Pin, .094 x 1.62"

$0.99

$

In Stock, Qty 20+

0

12

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

13

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

14

Scag 04040-13

Flatwasher, 1/2-.562 x 1.375 x .109

$0.99

$

In Stock, Qty 20+

0

15

Scag 04021-09

Nut, Center Lock 1/2-13

$0.99

$

In Stock, Qty 20+

0

16

Scag 483332

Linkage, Push Arm

$73.99

$

Usually ships in 2-12 days

0

17

Scag 04001-71

Bolt, Hex Head 1/2-13 x 1-1/2"

$1.49

$

In Stock, only 4 left!

0

18

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

19

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

20

Scag 483349

Linkage Assembly, Deck Lift

$91.99

$

Usually ships in 2-12 days

0

21

Scag 04001-52

Bolt, Hex Head 1/2-13 x 2-1/2"

$1.99

$

Usually ships in 2-12 days

0

22

Scag 483334

Bearing, Deck Lift

$16.99

$

In Stock, only 2 left!

0

23

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

24

Scag 451982

Weldment, Deck Lift LH

$148.99

$

Usually ships in 2-12 days

0

25

Scag 04040-14

Flatwasher, 1/4-.312 x .750 x .065

$0.99

$

In Stock, only 4 left!

0

26

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

27

Scag 451983

Weldment, Deck Lift RH

$148.99

$

Usually ships in 2-12 days

0

28

Scag 482628

Chain, Deck lift

$11.99

$

In Stock, only 3 left!

0

29

Scag 483374

Spring, Deck Lift

$51.99

$

Usually ships in 2-12 days

0

30

Scag 43710

Sleeve, Deck Lift Pivot

$18.99

$

In Stock, only 2 left!

0

31

Scag 04001-74

Bolt, Hex Head 1/2-13 x 3"

$1.99

$

In Stock, Qty 6

0

32

Scag 04105-01

Bolt, Head Socket 5/8-11 x 1-1/2"
(Superseded to 04108-04)

$2.99

$

Usually ships in 2-12 days

0

33

Scag 04030-07

Lockwasher, 5/8 Spring

$1.49

$

In Stock, Qty 19

0

34

Scag 424844

Pedal, Foot Bracket

$45.99

$

Usually ships in 2-12 days

0

35

Scag 424504

Foot Pedal

$14.99

$

In Stock, only 1 left!

0

36

Scag 483492

Grip, Deck Latch

$1.49

$

Usually ships in 2-12 days

0

37

Scag 491254

Weldment, Deck Latch

$55.99

$

In Stock, only 1 left!

0

38

Scag 04009-06

Bolt, Shoulder 1/2 x 1/2

$3.99

$

Usually ships in 2-12 days

0

39

Scag 483453-10

Bearing

$1.49

$

In Stock, only 1 left!

0

40

Scag 483328

Linkage Assembly, Deck Lift

$71.99

$

Usually ships in 2-12 days

0

41

Scag 483498

Pin, Height Adjuster

$16.99

$

Usually ships in 2-12 days

0
