SFW48-16BV - Scag 48" Walk-Behind Mower, 16hp Vanguard (SN: F9200001 - F9299999) Eleectrical System And Throttle Control Parts Diagram

48" Walk-Behind Mower, 16hp Vanguard

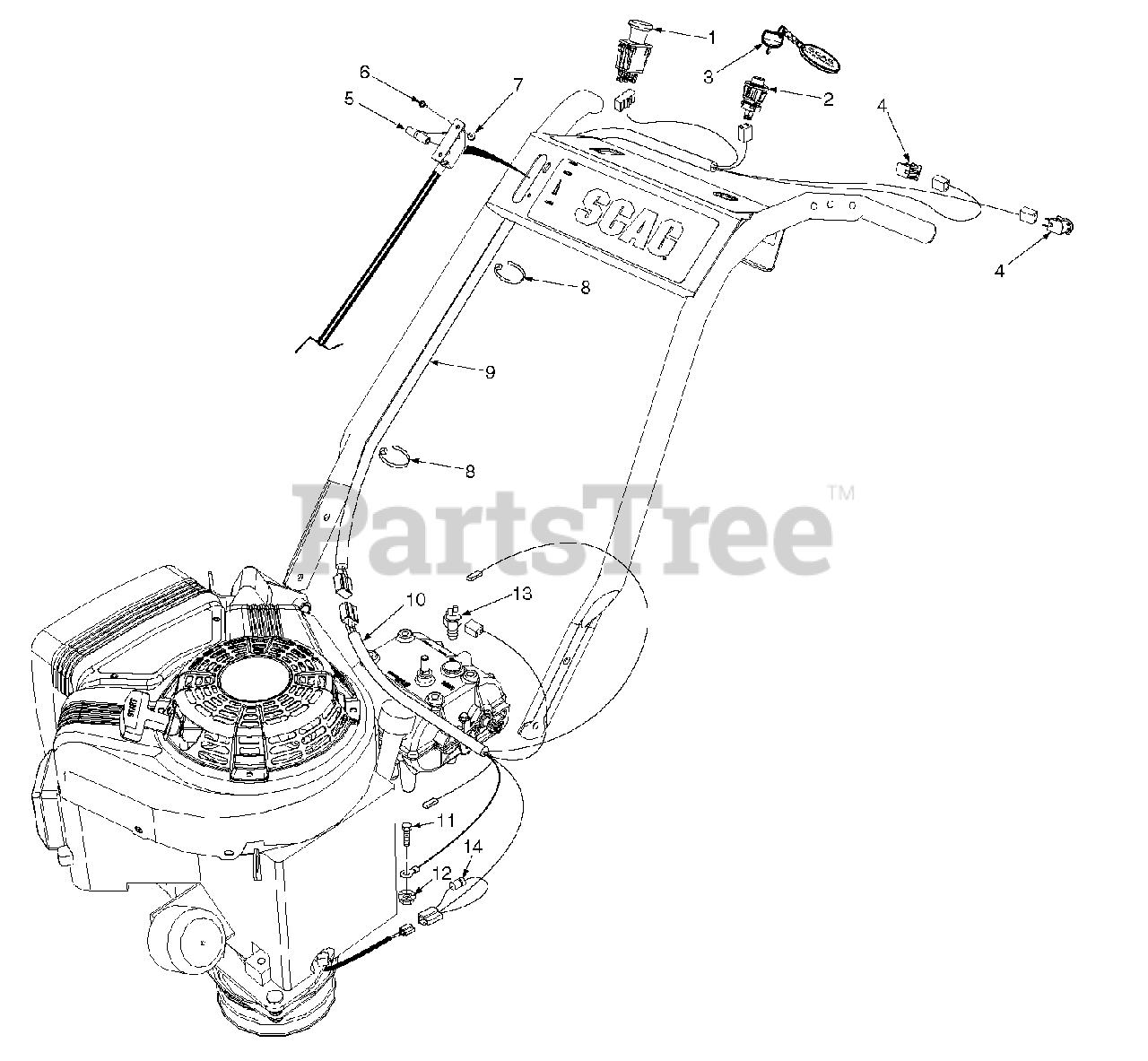

Eleectrical System And Throttle Control Parts Diagram

  • Title

1

Scag 483957

Switch, PTO 10 Amp
(Superseded to 463034)

$37.99

$

In Stock, Qty 20+

0

2

Scag 48609

Keyswitch

$13.99

$

In Stock, only 1 left!

0

3

Scag 462069

Key Chain w/Keys

$8.49

$

In Stock, Qty 20+

0

Scag 483609

Key w/Shroud

$2.99

$

In Stock, Qty 9

0

4

Scag 48717

Switch

$9.99

$

In Stock, only 1 left!

0

5

Scag 483904

Throttle Cable

$29.99

$

In Stock, only 1 left!

0

6

Scag 04010-01

Screw, #10-32 x 1/2"

$0.99

$

In Stock, Qty 20+

0

7

Scag 04019-01

Nut, #10-32

$0.99

$

Usually ships in 2-12 days

0

8

Scag 48028-05

Cable Tie

$

$

Not available

9

Scag 483872

Wire Harness, Handle Bar

$118.99

$

Usually ships in 2-12 days

0

10

Scag 483960

Wire Harness, Engine Deck

$118.99

$

Usually ships in 2-12 days

0

11

Scag 04017-19

Bolt, Serrated Flange 5/16-18 x 1-1/2"

$1.49

$

Usually ships in 2-12 days

0

12

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0
