SFW48-16BV - Scag 48" Walk-Behind Mower, 16hp Vanguard (SN: E5700001 - E5799999) Cutter Deck Controls Parts Diagram

48" Walk-Behind Mower, 16hp Vanguard

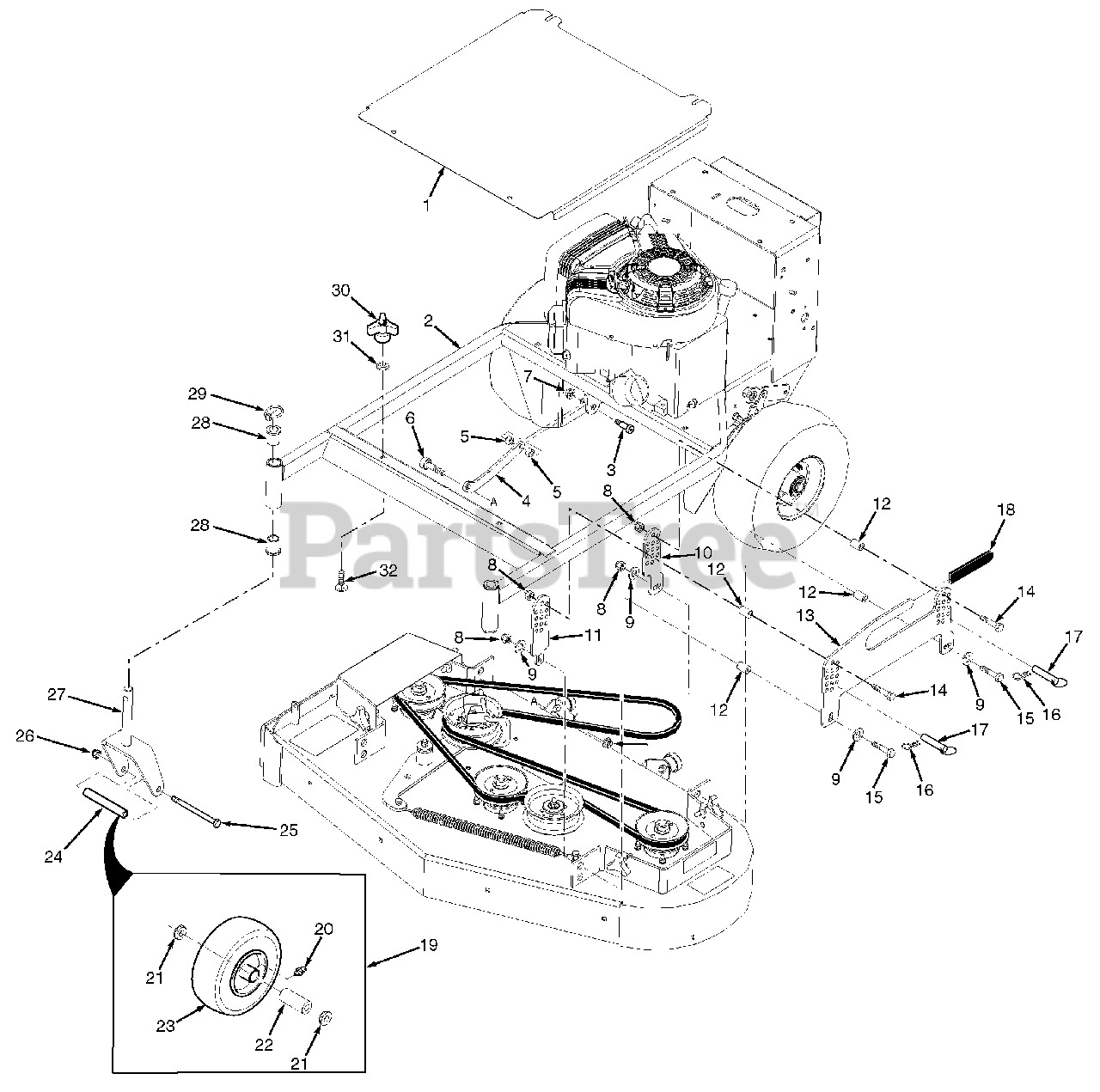

Cutter Deck Controls Parts Diagram

  • Title

1

Scag 462183

Belt Cover, SFW w/Decals

$105.99

$

Usually ships in 2-12 days

0

2

Scag 462181

Frame Weldment w/Decals

$

$

Not available

3

Scag 04009-13

Bolt, Shoulder 1/2 x 1-1/2"

$5.99

$

Usually ships in 2-12 days

0

4

Scag 425023

Pusharm

$15.99

$

Usually ships in 2-12 days

0

5

Scag 43041

Spacer

$4.99

$

Usually ships in 2-12 days

0

6

Scag 04009-10

Bolt, Shoulder 1/2 x 2-3/4"

$6.49

$

In Stock, Qty 20+

0

7

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

8

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

9

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105 HD

$0.99

$

In Stock, Qty 20+

0

10

Scag 425076

Mounting Bracket, Height Adjustment Rear

$

$

Not available

11

Scag 425077

Mounting Bracket, Height Adjustment Front

$28.99

$

Usually ships in 2-12 days

0

12

Scag 43572

Spacer

$1.99

$

In Stock, Qty 5

0

13

Scag 462188

Bracket, Deck Lift Height Adjustment - LH w/Decal

$111.99

$

Usually ships in 2-12 days

0

Scag 462189

Bracket, Deck Lift Height Adjustment - RH w/Decal

$

$

Not available

14

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

15

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

16

Scag 04062-01

Hair Pin Cotter, .094 x 1.62"

$0.99

$

In Stock, Qty 20+

0

17

Scag 04067-13

Pin, Ring 3/8 x 2-1/2"

$6.99

$

In Stock, Qty 6

0

18

Scag 481428

Grip

$4.49

$

Usually ships in 2-12 days

0

19

Scag 483922

Caster Wheel Assembly, 9 x 3.5-4

$105.99

$

Usually ships in 2-12 days

0

20

Scag 48114-03

Grease Fitting, 45 Degree 1/4-28

$10.99

$

In Stock, Qty 6

0

21

Scag 481770

Bearing, Oilite

$4.99

$

In Stock, Qty 20+

0

22

Scag 481769

Bearing, Roller

$27.99

$

In Stock, only 2 left!

0

23

Scag 483981

Tire Only, Caster Wheel

$67.99

$

Usually ships in 2-12 days

0

Scag 483921

Rim Only

$38.99

$

Usually ships in 2-12 days

0

24

Scag 43022

Sleeve, Caster Wheel

$6.99

$

In Stock, Qty 20+

0

25

Scag 04001-37

Bolt, Hex Head 1/2-13 x 5-1/2"

$4.49

$

In Stock, Qty 13

0

26

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

27

Scag 45006

Caster Yoke Weldment

$65.99

$

In Stock, only 1 left!

0

28

Scag 483453-07

Bearing

$

$

Currently unavailable

29

Scag 04066-01

Quick Pin

$8.49

$

In Stock, Qty 7

0

30

Scag 04029-04

Wing Nut, 3/8" Plastic Small

$2.99

$

In Stock, Qty 19

0

31

Scag 04024-02

Nut, Push-On 3/8"

$1.49

$

In Stock, Qty 5

0

32

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0
