Scag SFW48-16BV - Scag 48" Walk-Behind Mower, 16hp Vanguard (SN: E5700001 - E5799999) 48 Ft. Cutter Deck Parts Lookup with Diagrams

1

Scag 462149

Cutter Deck Weldment w/Decals

$1251.99

$

Usually ships in 2-12 days

2

Scag 04112-06

Nut, 3/4-16 Spiral Lock

$11.99

$

In Stock, Qty 5

3

Scag 04063-01

Key, 1/4 x 1/4 x 1-1/4"

$1.49

$

In Stock, only 4 left!

4

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

5

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105 HD

$0.99

$

In Stock, Qty 20+

6

Scag 424615

Bracket, Belt Guide

$5.49

$

Usually ships in 2-12 days

7

Scag 424367

Dust Shield

$2.49

$

In Stock, only 2 left!

8

Scag 483323

Pulley, 5.13" Dia.

$32.99

$

In Stock, only 2 left!

9

Scag 483012

Belt, Cutter Deck

$66.99

$

Usually ships in 2-12 days

10

Scag 483851

Pulley, 5" Idler

(Superseded to 483210) 

$55.99

$

In Stock, only 2 left!

11

Scag 483422

Pulley, 5" Idler

$20.99

$

In Stock, Qty 11

12

Scag 43711

Spacer, Idler Pulley

$6.49

$

Usually ships in 2-12 days

13

Scag 04041-11

Flatwasher, 3/8-.406 x 1-1/2"

$1.99

$

In Stock, only 4 left!

14

Scag 483453-03

Bearing

$7.99

$

In Stock, only 2 left!

15

Scag 462191

Idler Arm Assembly

Note: (incl. #14)

$114.99

$

Usually ships in 2-12 days

16

Scag 04001-62

Bolt, Hex Head 3/8-16 x 3-1/4"

$1.49

$

In Stock, Qty 12

17

Scag 425117

Belt Cover, SFW 48

$112.99

$

Usually ships in 2-12 days

18

Scag 43708

Pivot, Idler

$31.99

$

In Stock, only 1 left!

19

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

20

Scag 481625-01

Knob, w/Stud

$2.99

$

In Stock, Qty 20+

21

Scag 43703

Spacer, Bearing

$11.99

$

Usually ships in 2-12 days

22

Scag 483379

Bearing

$5.49

$

In Stock, Qty 7

23

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

24

Scag 04021-22

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

25

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

26

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Gr.8

$0.99

$

In Stock, Qty 20+

27

Scag 483375

Spring, Deck Idler

$85.99

$

In Stock, only 1 left!

28

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

29

Scag 04041-38

Flatwasher, 3/8-.406 x 2-1/4 x .187

$3.49

$

In Stock, Qty 8

30

Scag 04001-77

Bolt, Hex Head 3/8-16 x 3-1/2"

$1.49

$

In Stock, Qty 7

31

Scag 04001-175

Bolt, Hex Head 5/16-18 x 1-1/2" Gr.8

$0.99

$

In Stock, Qty 10

32

Scag 481706

Cutter Blade, 16-1/2"

$20.99

$

In Stock, Qty 20+

33

Scag 04043-06

Flatwasher, 5/8-.688 x 1-3/4 x .134 HD

$1.99

$

In Stock, Qty 20+

34

Scag 04030-07

Lockwasher, 1/2" Spring

$0.99

$

In Stock, Qty 19

35

Scag 04001-121

Bolt, Hex Head 5/8-11 x 1-1/2"

$1.99

$

In Stock, Qty 20+

36

Scag 461950

Spindle Assembly

$137.99

$

In Stock, only 1 left!

37

Scag 483304

Debris Shield

$6.49

$

In Stock, only 1 left!

38

Scag 483303

Bearing

$13.99

$

In Stock, Qty 17

39

Scag 43693

Spacer, Bearing

$22.99

$

Usually ships in 2-12 days

40

Scag 462014

Spindle Housing Assembly

Note: (incl. #38 & #39)

$129.99

$

In Stock, only 1 left!

41

Scag 43694

Protector, Bearing

$28.99

$

In Stock, only 1 left!

42

Scag 43695

Shaft, Spindle

$49.99

$

In Stock, only 1 left!

43

Scag 04001-51

Bolt, Hex Head 3/8-16 x 3-3/4"

$1.49

$

In Stock, Qty 8

44

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

45

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

46

Scag 04001-154

Bolt, Hex Head 5/16-18 x 4-3/4"

$2.99

$

In Stock, Qty 20+

47

Scag 482245

Spring, Discharge Chute

$10.99

$

In Stock, Qty 5

48

Scag 462031

Discharge Chute Assembly

$65.99

$

In Stock, only 1 left!

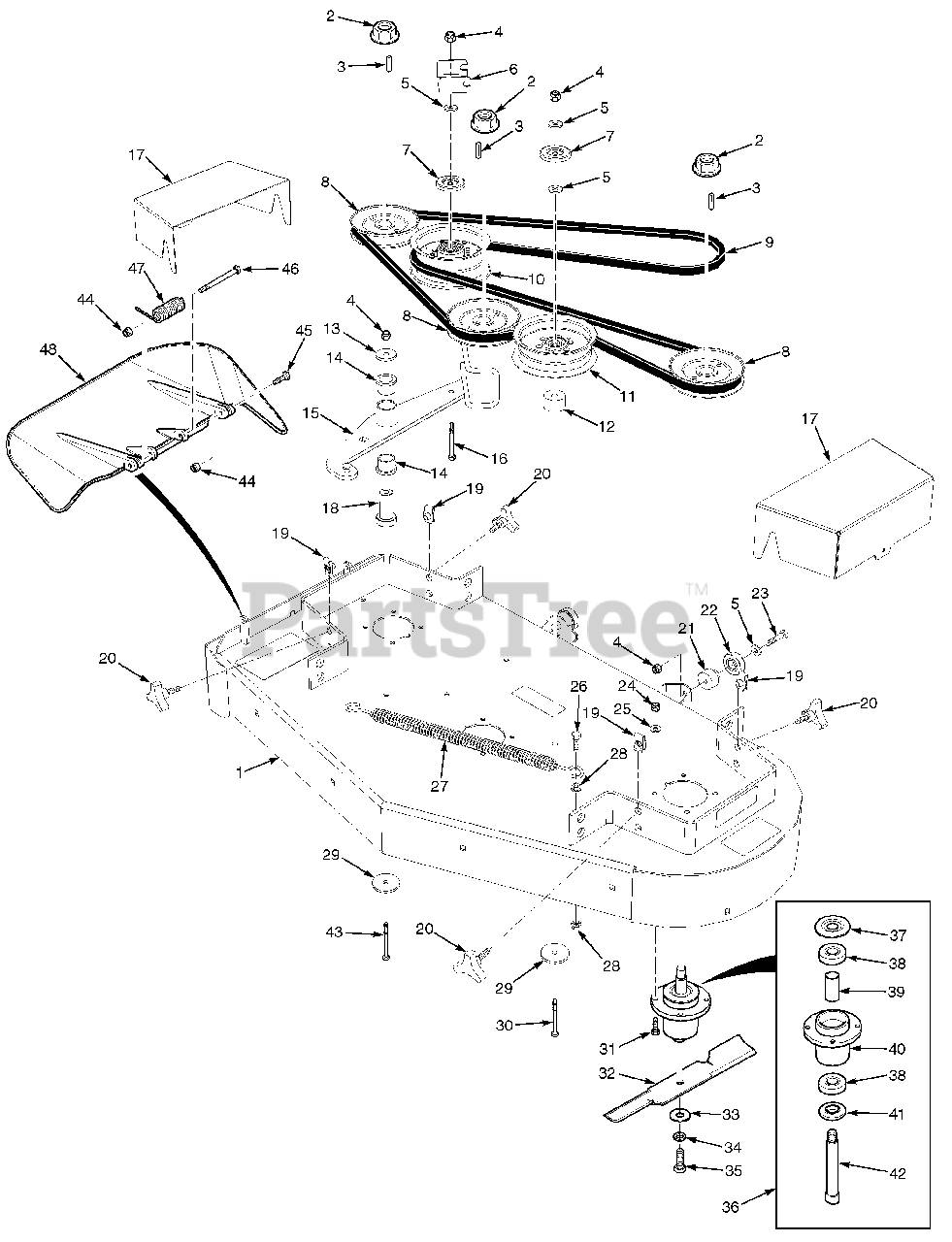

SFW48-16BV - Scag 48" Walk-Behind Mower, 16hp Vanguard (SN: E5700001 - E5799999) 48 Ft. Cutter Deck Parts Diagram

48 Ft. Cutter Deck Parts Diagram
