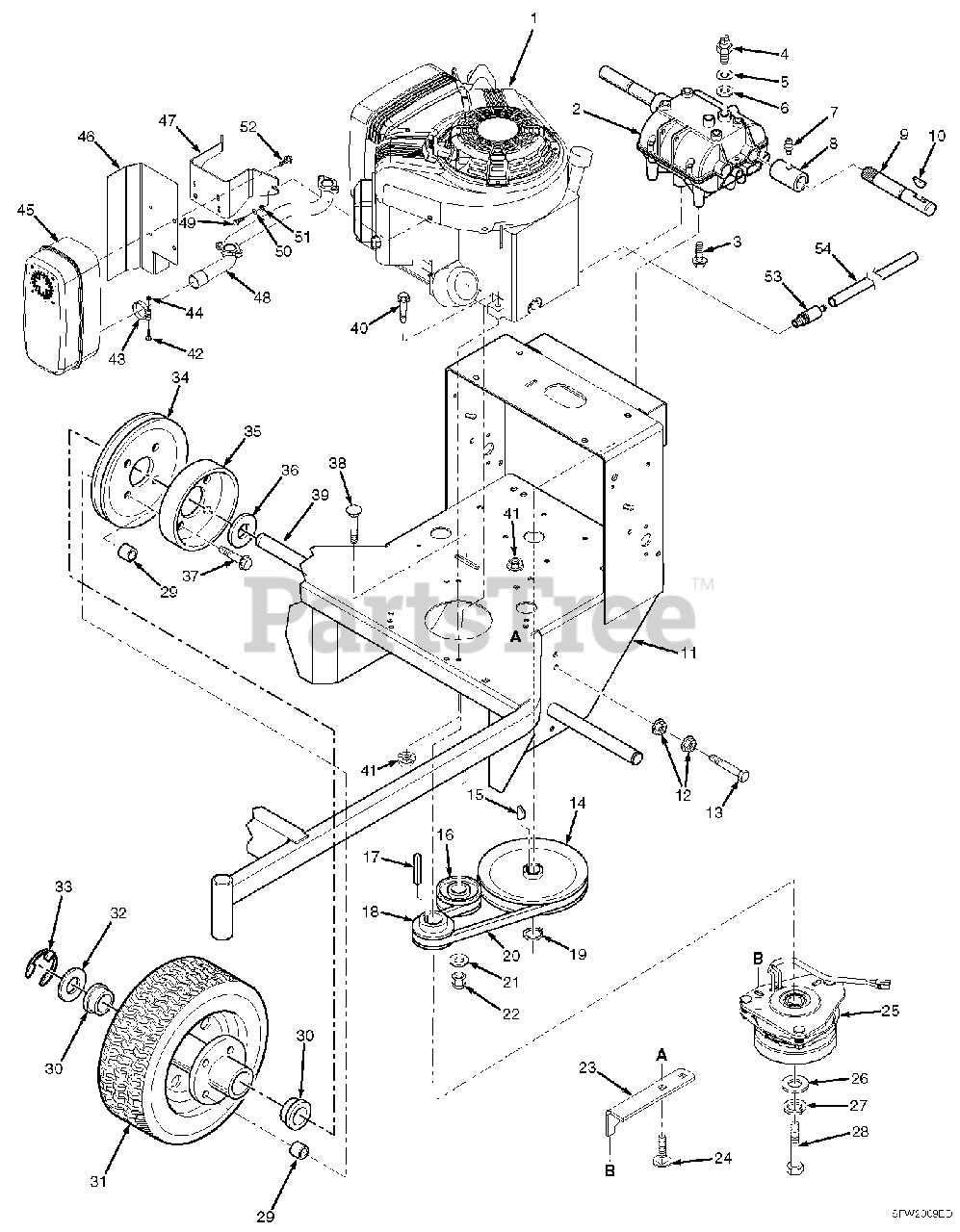

SFW36-16BV - Scag 36" Walk-Behind Mower, 16hp Vanguard (SN: F9100001 - F9199999) Engine Deck Parts Diagram

36" Walk-Behind Mower, 16hp Vanguard

Engine Deck Parts Diagram

  • Title

1

Scag 483796

Engine, Briggs & Stratton

Note: Available through Briggs & Stratton only

$

$

Currently unavailable

2

Scag 483822

Transmission, 4-Speed

$747.99

$

Usually ships in 2-12 days

0

3

Scag 04017-16

Bolt, Serrated Flange 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 10

0

4

Scag 48231

Switch, Neutral Interlock

$38.99

$

Usually ships in 2-12 days

0

5

Scag 48122-01

Fiber Washer, Thin

$0.99

$

Usually ships in 2-12 days

0

6

Scag 48122-02

Fiber Washer, Thick

$0.99

$

Usually ships in 2-12 days

0

7

Scag 48114-05

Grease Fitting, Straight 1/4-28

$1.49

$

In Stock, Qty 9

0

8

Scag 481581

Coupler, Jackshaft

$40.99

$

In Stock, only 2 left!

0

9

Scag 481582

Jackshaft

$41.99

$

In Stock, only 2 left!

0

10

Scag 04063-09

Key, Hi-Pro #9

$1.49

$

In Stock, Qty 9

0

11

Scag 462181

Frame Weldment w/Decals

$

$

Not available

12

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

13

Scag 04001-45

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 8

0

14

Scag 48197

Pulley, Transmission Input

$35.99

$

In Stock, only 1 left!

0

15

Scag 04063-07

Key, Woodruff #9

$0.99

$

In Stock, Qty 12

0

16

Scag 483638

Pulley, Idler 3-1/2"
(Superseded to 486045)

$20.99

$

In Stock, Qty 20+

0

17

Scag 04063-19

Key, 1/4 x 1/4 x 3/4"

$0.99

$

In Stock, only 2 left!

0

18

Scag 483823

Pulley, 2-3/4 OD x 1" Bore

$84.99

$

Usually ships in 2-12 days

0

19

Scag 04050-09

Retaining Ring, .625 Ext.

$0.99

$

In Stock, Qty 20+

0

20

Scag 483816

Belt, Transmission

$38.99

$

In Stock, only 1 left!

0

21

Scag 04043-04

Flatwasher, 3/8-.391 x .935 x .105 HD

$0.99

$

In Stock, Qty 20+

0

22

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

23

Scag 425051

Bracket, Anti-Rotation

$19.99

$

Usually ships in 2-12 days

0

24

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

25

Scag 462192

Clutch, Ogura GT1A

$295.99

$

Usually ships in 2-12 days

0

26

Scag 04041-28

Flatwasher, 7/16-.469 x 1-3/4 x .25

$2.99

$

In Stock, Qty 12

0

27

Scag 04043-05

Lockwasher, 7/16" Spring

$1.49

$

Usually ships in 2-12 days

0

28

Scag 04102-05

Bolt, Hex Head 7/16-20 x 2-3/4" w/ Patch

$2.49

$

In Stock, only 2 left!

0

29

Scag 43796

Spacer, Wheel Assembly

$10.99

$

Usually ships in 2-12 days

0

30

Scag 483916

Bearing

$16.99

$

Usually ships in 2-12 days

0

31

Scag 483881

Wheel Assembly

$247.99

$

Usually ships in 2-12 days

0

Scag 481842

Tire Only 15 x 6.0-6

$98.99

$

Usually ships in 2-12 days

0

Scag 483880

Rim Assembly Only

$139.99

$

Usually ships in 2-12 days

0

32

Scag 04041-14

Flatwasher, 1-1.062 x 1-1/2 x .0478

$0.99

$

In Stock, Qty 15

0

33

Scag 04050-08

Retaining Ring, 1" Ext. "E"

$0.99

$

In Stock, Qty 12

0

34

Scag 483712

Pulley, Wheel

$49.99

$

Usually ships in 2-12 days

0

35

Scag 48209

Brake Drum

$19.99

$

Usually ships in 2-12 days

0

36

Scag 04041-39

Flatwasher, 1-1.063 x 1-1/2 x .105
(Superseded to 04041-14)

$0.99

$

In Stock, Qty 15

0

37

Scag 04017-19

Bolt, Hex Head 5/16-18 x 1-1/2" SF

$1.49

$

Usually ships in 2-12 days

0

38

Scag 04003-03

Bolt, Carriage 3/8-16 x 2"

$1.49

$

In Stock, Qty 5

0

39

Scag 43085

Wheel Axle

$52.99

$

Usually ships in 2-12 days

0

40

Scag 04017-19

Bolt, Serrated Flange 5/16-18 x 1-1/2"

$1.49

$

Usually ships in 2-12 days

0

41

Scag 04019-19

Nut, Serrated Flange 5/16-18

$

$

Currently unavailable

42

Scag 04003-37

Bolt, Carriage 5/16-18 x 1-1/4"

$0.99

$

Usually ships in 2-12 days

0

43

Muffler Clamp

Note: Available through Briggs & Stratton only

$

$

Not available

44

Scag 04020-03

Nut, 5/16-18 UNC

$0.99

$

In Stock, only 1 left!

0

45

Muffler, 16HP Briggs & Stratton

Note: Available through Briggs & Stratton only

$

$

Not available

46

Heatshield, 16HP Briggs & Stratton

Note: Available through Briggs & Stratton only

$

$

Not available

47

Mounting Bracket, Muffler 16HP Briggs & Stratton

Note: Available through Briggs & Stratton only

$

$

Not available

48

Exhaust Manifold, 16HP Briggs & Stratton

Note: Available through Briggs & Stratton only

$

$

Not available

49

Scag 04002-21

Bolt, M6-1 x 16mm

$

$

Currently unavailable

50

Scag 04030-02

Lockwasher, 1/4" Spring

$0.99

$

In Stock, Qty 20+

0

51

Scag 04040-14

Flatwasher, 1/4-.312 x .750 x .065

$0.99

$

In Stock, only 4 left!

0

52

Scag 04011-13

Capscrew, 1/4-20 x 3/4" Shakeproof
(Superseded to 04011-14)

$0.99

$

In Stock, Qty 13

0

53

Scag 483940

Oil Drain, SFW

$14.99

$

Usually ships in 2-12 days

0

54

Scag 483280-02

Tubing, Oil Drain 1/2 x 14"

$4.49

$

Usually ships in 2-12 days

0
